Transfer Case Draining And Filling (G2951358): Filling

  1. CAUTION: Make sure that the area around the component is clean and free of foreign material.

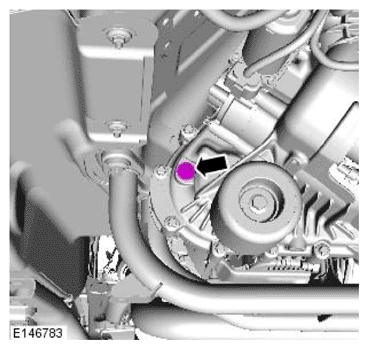

    G11707511Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the transfer case filler plug.
    • Remove and discard the sealing washer.
  2. Fill the transfer case with the correct specification of fluid, until the fluid is level with the bottom of the filler/level plug hole.

    Refer to: SPECIFICATIONS

  3. G11707511Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new sealing washer.

      Renew Part: Transfer case fill plug washer Quantity: 1.

    • Install and tighten the transfer case filler plug.

      Torque  : 28 Nm
