Solvent Retention

NOTE: Alternative Terminology: Boil, pits, bubbles, pin-holes, boiling, solvent boil, solvent shock and air bubbles.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Description

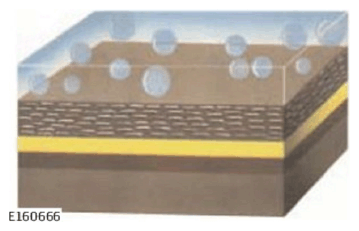

Bubbles of solvent retained in the clear coat, usually close to the surface and in localized areas, of a size between 0.5 and 1 mm (0.020 and 0.040 in.) diameter. May initially be apparent as black dots, but close examination will reveal the depth at which they are held in the clear coat.

Warranty Related Cause

Fault with manufacturing process.

Non-warranty Related Cause(s)

None.

Rectification Process

Determine if exception is permissible or not permissible. For additional information, Refer to: COSMETIC ACCEPTANCE STANDARDS
Permissible exception does not require a repair so should be passed as CA.
Repair any not permissible exceptions by re-painting as required.
