Paint Exceptions And Associated Repair Procedures (G1676685): Runs

NOTE: Alternative Terminology: Drips, gun spits and sags.

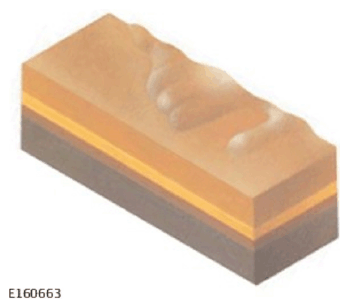

G11585305Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Description

An accumulation of paint which gathers to form a thickened fold, often accompanied by individual tear-like runs or a sagging drapery of runs.

Warranty Related Cause

Non-warranty Related Cause(s)

Rectification Process

  1. Determine if exception is permissible or not permissible. For additional information, Refer to: COSMETIC ACCEPTANCE STANDARDS
  2. Permissible exception does not require a repair so should be passed as CA.
  3. Repair any not permissible exceptions by polishing, or flatting and polishing.
