High Pressure Fuel Pump (G2300866): Installation

WARNING: This page is about a different variant/trim than selected.

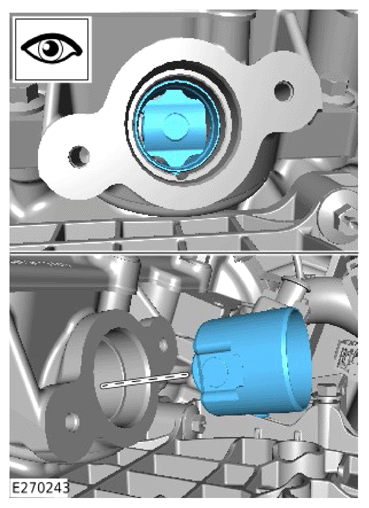

  1. CAUTION: Make sure the HP  fuel pump tappet alignment features are correctly aligned with the camshaft carrier.
    G14059789Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the HP  fuel pump tappet to the position noted on removal.

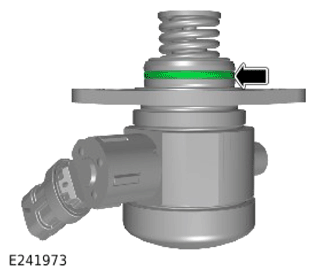

  2. CAUTION: Lubricate the O-ring seal with clean engine oil.
    G14059788Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Lubricate the O-ring seal with clean engine oil that meets with the engine oil specifications.

      Refer to: SPECIFICATIONS

    • Install a new O-ring seal.

      Renew Part: Fuel pump O-ring seal Quantity: 1  .

  3. NOTE: Tighten each of the bolts a half turn at a time until the fuel pump is fully installed.
    • Install the HP  fuel pump.
    • Install, but do not fully tighten the 2 bolts.

      Renew Part: High pressure fuel pump retaining bolts Quantity: 2  .

    • Tighten each bolt half a turn at a time until the correct torque is achieved.

      Torque  : 14 Nm

  4. CAUTION: Fuel lines may only be reused 1 time. After final tightening, clean the fuel line and apply a paint mark to identify reuse. If the fuel line is already paint marked, a new fuel line must be installed.
    • Install the LP  fuel line and finger tighten the fuel line union until seated.
    • Install and tighten the stud.

      Torque  : 11.5 Nm

    • Tighten the fuel line union.

      Torque  : 20 Nm

    • Wait 30 seconds then perform a torque over-check of 20 ± 2 Nm to make sure no torque relaxation of the Pipe nuts has occurred.
    • Connect the LP  fuel line.
  5. CAUTION: Fuel lines may only be reused one time. After final tightening, clean the fuel line and apply a paint mark to identify reuse. If the fuel line is already paint marked, a new fuel line must be installed.
    G14059792Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the HP  fuel line.
    • Finger tighten the 2 unions.
    • Tighten the 2 unions.

      Torque  : 20 Nm

    • Install and tighten the 2 bolts.

      Torque  : 11.5 Nm

    • Fully loosen the 2 fuel line unions.
    • Finger tighten the 2 unions.
    • Tighten the 2 fuel line unions.

      Torque  : 20 Nm

    • Wait for 30 seconds and recheck the final torque.
    • Install and tighten the sliding bracket bolt.

      Torque  : 11.5 Nm

  6. Install the breather pipe.
    • Install the NVH  material.
    • Install and tighten the 2 bolts.

      Torque  : 10 Nm

    • Connect the electrical connector.
    • Install the NVH  material.
  9. Install the throttle body.

    Refer to: THROTTLE BODY

  10. Reposition the charge air cooler in the correct location.

    Refer to: CHARGE AIR COOLER SERVICE POSITION

  11. Install the evaporative emission canister purge valve.

    Refer to: EVAPORATIVE EMISSION CANISTER PURGE VALVE

  12. Connect the startup battery ground cable.

    Refer to: 12V SYSTEM DISCONNECT AND CONNECT

  13. Bleed the fuel system.

    Refer to: HIGH-PRESSURE FUEL SYSTEM BLEEDING
