Dual Mass Flywheel (G2744279): Removal

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • If the vehicle has been powered down, do not power up the vehicle until all the bonding points have been tested.
  • It is the responsibility of the Electric Vehicle Senior Authorized Person (EVSAP) to make sure they comply with any local legislation for work on High Voltage (HV).
  • The approved Personal Protective Equipment (PPE) must be worn where indicated within this procedure and not removed unless indicated within a step. All items of PPE  must be checked for signs of damage before each use, if damaged, replacement PPE  must be obtained before doing this procedure.
NOTE:
  • All Permit To Work (PTW) documents must be kept for a minimum of 5 years.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. WARNING: Jaguar Land Rover (JLR) Electric Vehicle Competent Person (EVCP) trained technicians only.
    G12528294Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    This procedure involves work on components associated with the HV  system. Only technicians qualified to EVCP level or higher are allowed to do this procedure.  It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle (EV) Safety Rules.

    Refer to: ELECTRIC VEHICLE SAFETY RULES .

  2. G12528295Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Power Down the HV  system. Only technicians qualified to Electric Vehicle Authorized Person (EVAP) level are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the EV  Safety Rules.

    Refer to: PHEV POWER DOWN/UP - COMPLETE VEHICLE - PATHFINDER .

  3. Refer to HV  electrical connector operation and inspection document before disconnecting any HV  electrical connectors.

    Refer to: the appropriate service information

  4. Raise and support the vehicle on a suitable 2-post lift.

    Refer to: JACKING AND LIFTING .

  5. Remove the charge air cooler.

    Refer to: CHARGE AIR COOLER .

  6. Remove the transmission assembly.

    Refer to: TRANSMISSION - INGENIUM I4 2.0L PETROL (G2784101) .

  7. G14516089Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool JLR-303-1686 adapter to the special tool JLR-303-1630 crankshaft pulley locking tool.

    Special Tool(s): JLR-303-1630  , JLR-303-1686

  8. CAUTION: Only rotate the crankshaft clockwise.
    NOTE:
    • The engine may require rotating to the correct position before the special tool can be installed.
    • The 4 locating pegs of the special tool must be installed correctly into the crankshaft pulley.
    G14516090Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tools JLR-303-1630 and JLR-303-1686 to lock the crankshaft.

    Special Tool(s): JLR-303-1630  , JLR-303-1686

  9. CAUTION: Discard the bolts.

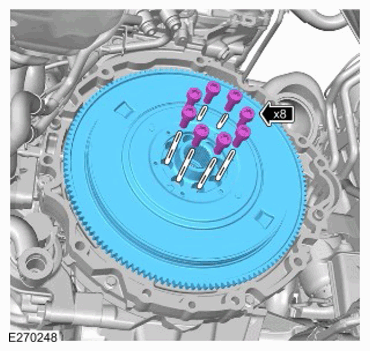

    G14516091Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the 8 dual mass flywheel bolts.
    • Remove the dual mass flywheel.
