Oil Pan - INGENIUM I4 2.0L Petrol - PHEV (G2748110): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

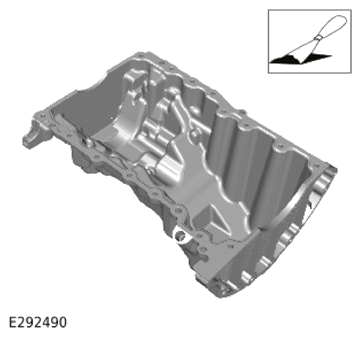

Use a suitable plastic scraper to clean the oil pan mating faces.
CAUTION: Make sure all mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply a continuous 3 mm bead of sealant to the oil pan mating faces as illustrated.

Refer to: SPECIFICATIONS
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the oil pan.
- Install and tighten the 2 bolts.
  Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

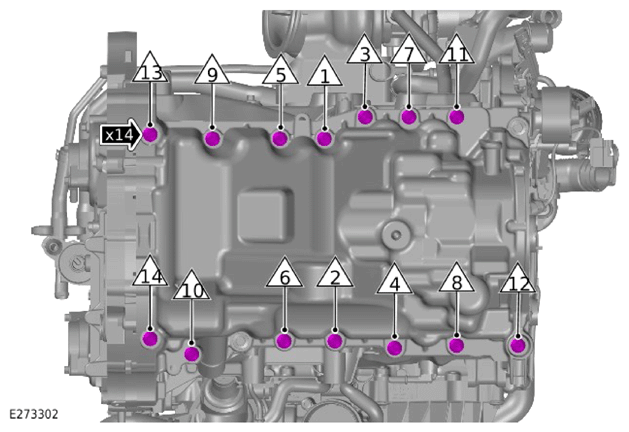

Install and tighten the 14 bolts in the illustrated sequence.

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

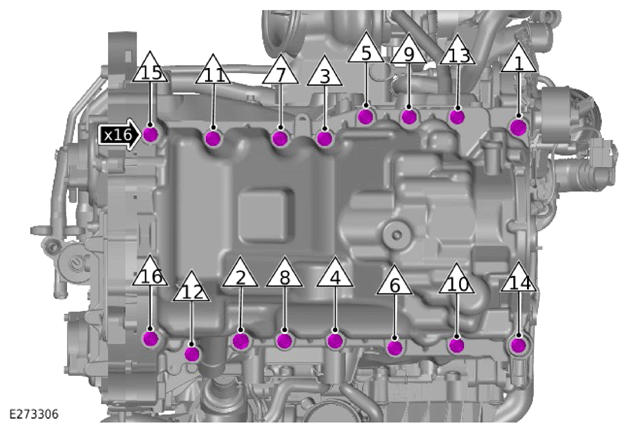

Tighten the 16 bolts in the illustrated sequence.

Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

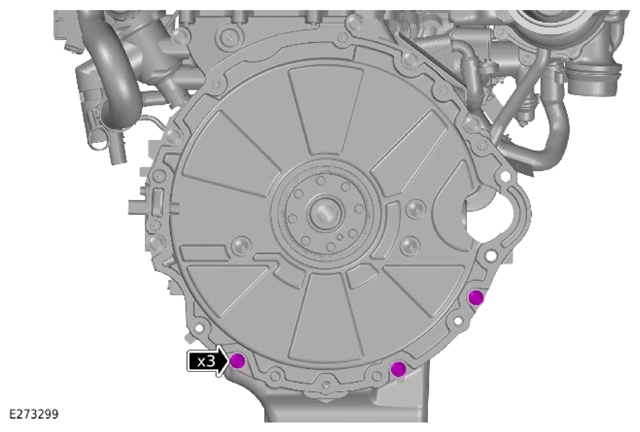

Install and tighten the 3 bolts.

Torque : 25 Nm
- Install the NVH material.
- Install the 4 fasteners.
- Install a new O-ring seal.
  Renew Part: Oil level gauge O-ring seal Quantity: 1 .
- Install the oil level gauge.
- Install and tighten the bolt.
  Torque : 7 Nm
- Install the 2 clips.
Install the engine front cover.
Refer to: ENGINE FRONT COVER - INGENIUM I4 2.0L PETROL - PHEV
Install the engine.
Refer to: INSTALLATION .
Fill the engine with the correct amount of engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
CAUTION: Jaguar Land Rover (JLR) EVAP trained technicians only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Power up the HV system. Only technicians qualified to EVAP level or higher are allowed to complete this step of the procedure.

Refer to: PHEV POWER DOWN/UP - HANDHELD
