Transfer Case - V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (G1966999): Part(S)
| STEP | PART NAME | QUANTITY |
|---|---|---|
| Step 6 | Driveshaft to front output flange bolts | 1 |
CAUTION:
- New transfer cases may be supplied with untapped bolt holes, reuse the original bolts when self tapping the new threads.
- Re-manufactured transfer cases have tapped holes, bolts must be installed finger tight before applying Torque.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Component shown removed for clarity.
- Disconnect the battery ground cable.
Refer to: SPECIFICATIONS
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: TRANSMISSION SUPPORT CROSSMEMBER - V6 S/C 3.0L PETROL/V8 S/C 5.0L PETROL
- Refer to: REAR DRIVESHAFT - V6 S/C 3.0L PETROL/V8 S/C 5.0L PETROL
-
CAUTION: Air tools must not be used.
-
CAUTION:
- Mark the position of the driveshaft flange in relation to the drive pinion flange.
- To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.
- Discard the bolts.
Renew Part: Driveshaft to front output flange bolts Quantity: 1.
-
CAUTION: Air tools must not be used.
Remove the ground cable.
-
CAUTION: Air tools must not be used.

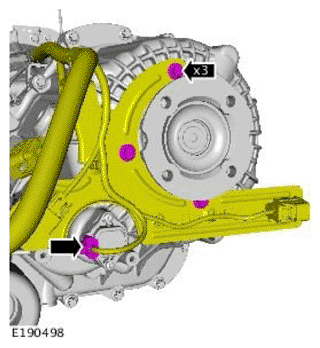

Remove the heat shield.
-
CAUTION: Air tools must not be used.

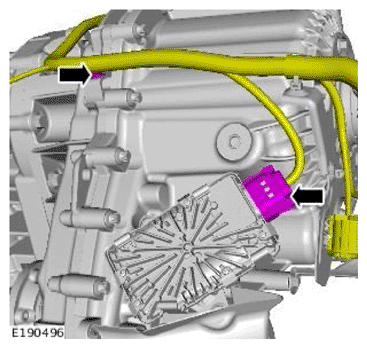

Release the wiring loom.
Disconnect the electrical connector.
-
CAUTION: Always plug any open connections to prevent contamination.

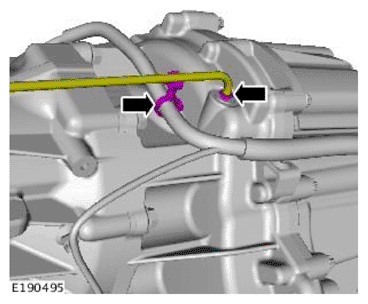

Remove the breather pipe.
-
CAUTION: Air tools must not be used.

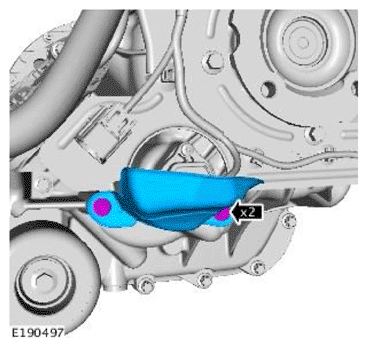

Remove the transfer case damper.
-
WARNING: Secure the component to the transmission jack.
Using a suitable stand, support the Transfer case.
Special Tool(s): 303-1069
-

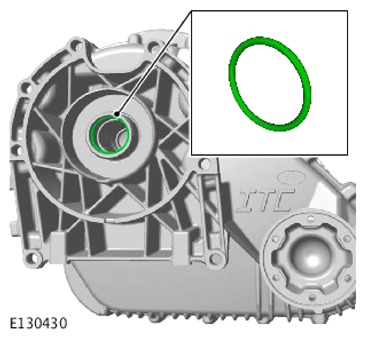

CAUTION: Do not carry out this step if a new transfer box is to be installed.
