Automatic Transmission Fluid Level Check (G2203277): Check

WARNING: This page is about a different variant/trim than selected.
WARNING:
  • Observe due care when draining, as the fluid can be very hot.
  • Observe due care when working near a hot exhaust system.
    • The following steps must be observed before starting the automatic transmission fluid level check.
    • The vehicle must be on a horizontal ramp.
    • Make sure that the Electric Park Brake (EPB) is applied.
    • Make sure the Transmission Control Switch (TCS) is in the Park (P) position.
  2. Raise and support the vehicle.

    Refer to: JACKING AND LIFTING

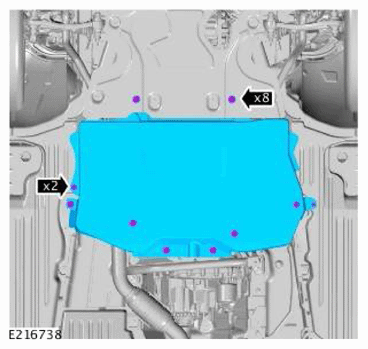

  3. G12001150Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 10 bolts.
    • Remove the transmission undershield.

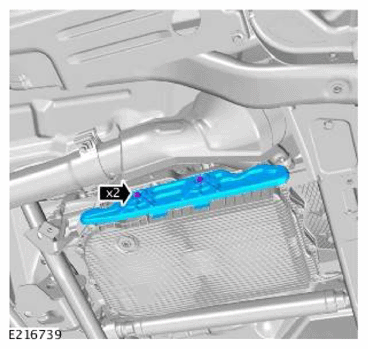

  4. G12001151Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the heatshield.
  5. Lower the vehicle.
  6. CAUTION: Make sure that the transmission is not in default (service) mode. If this is the case, stop and correct the cause first and then perform the fluid level check procedure.
    • Connect Jaguar Land Rover approved diagnostic equipment to the vehicle.
    • Start the engine and allow it to idle.
    • Switch off the Air Conditioning (A/C) system and other electrical components.
  7. CAUTION: Using Jaguar Land Rover approved diagnostic equipment, make sure the transmission temperature is between 30°C (85°F) and 50°C (122°F) before starting the fluid level check.
    • Apply and hold the brake pedal.
    • Select Reverse (R) gear and wait for 10 seconds.
    • Select Drive (D), then manual 1st gear and wait for 10 seconds.
    • Select 2nd gear and wait for 10 seconds.
    • Select Park (P) position on the TCS  .
  8. Raise the engine speed to 2000 rpm and hold for 30 seconds. Then let it return to idle speed.
    • Using Jaguar Land Rover approved diagnostic equipment, check the transmission fluid temperature.
    • If the transmission fluid temperature is lower than 30°C (86°F). Allow the transmission to warm up above 30°C (86°F) with the engine idling in the P position, then proceed with the transmission fluid level check.
    • If the transmission fluid temperature is above 50°C (122°F), switch off the engine and allow the transmission to cool down, then repeat steps  7 and  8.
  10. Raise and support the vehicle.
  11. CAUTION:
    • The engine needs to idle with the TCS  in the Park (P) position for correct transmission fluid level reading.
    • Only continue with the fluid level check procedure if the transmission temperature is between 30°C (86°C) and 50°C (122°).
    NOTE: Use a suitable container to collect escaping fluid.
    G11700445Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the fluid filler plug, do not discard.
    • If fluid flows out of the fluid filler hole, proceed to step  14.
    • If fluid does not flow out of the fluid filler hole, proceed to step  13.

      Special Tool(s): 307-452

  12. G11700446Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Top up the transmission with the recommended automatic transmission fluid until fluid flows out of the fluid filler hole. Refer to fluid specifications. Refer to: SPECIFICATIONS
  13. G11700447Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Allow the transmission fluid to drain from the fluid filler hole until the flow stops.

  14. WARNING: This step is only required for 3.0L PETROL and 3.0L DIESEL vehicles

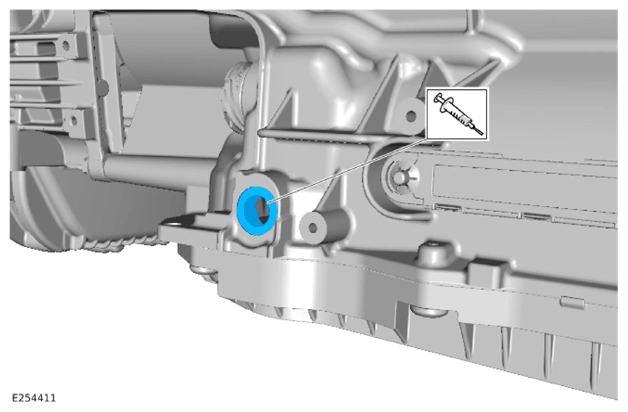

    G14067003Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use a suitable tool to drain 350ml of transmission fluid from the automatic transmission filler hole.

  15. NOTE: Install the original fluid filler plug.
    G11700448Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Using the special tool, install the original fluid filler plug.
    • Special Tool(s): 307-452
  16. CAUTION: Make sure the transmission fluid filler plug is tightened to the correct specification. Failure to follow this instruction may result in damage to the transmission.
    G11700449Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • To make sure the transmission fluid filler plug is tightened to the correct specification, use the special tool and a torque wrench and follow the steps below:
    • Step 1. Multiply 35 Nm by the effective length of the torque wrench (1).
    • Step 2. Add the effective length of the special tool (2) to the effective length of the torque wrench (1).
    • Step 3. Divide the total of step 1 by the total of step 2.
    • Step 4. Set the torque wrench to the figure arrived at in step 3.
    • Tighten the transmission fluid filler plug to the torque given by the calculation.
    • Remove the special tool.

      Special Tool(s): 307-452

  18. Clean the area around the fluid filler plug, wipe away any excess fluid and remove the container.
  19. G12001151Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the heatshield.
    • Install and tighten the 2 bolts.

      Torque  : 9 Nm

  20. G12001150Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the transmission undershield.
    • Install and tighten the 10 bolts.

      Torque

      M10: 60 Nm

      M6: 10 Nm

  21. Lower the vehicle.
  22. Disconnect the Jaguar Land Rover approved diagnostic equipment.
