Fuel Pump Camshaft Timing Check (G1716402): Check

Disconnect the battery ground cable.
Refer to: SPECIFICATIONS
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: ENGINE UNDERSHIELD
CAUTION: Allow at least 10 minutes for the engine oil to drain.
NOTE:
- Discard the sealing washer and the sealing plug.
- Collect the engine oil in a clean container.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Oil pan drain plug Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Only rotate the crankshaft clockwise.
- Make sure that the crankshaft is fully locked.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Special Tool(s): JLR-303-1303
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable marker, mark the position of the crankshaft pulley as illustrated.
CAUTION: Discard the seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
  Special Tool(s): JLR-303-1303
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

If required, carefully adjust the crankshaft position to allow correct installation of the special tool.

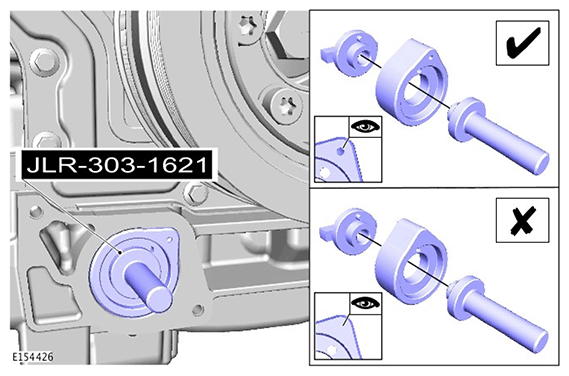

Special Tool(s): JLR-303-1621
CAUTION: Do not use excessive force when adjusting the crankshaft position.

NOTE: If the crankshaft timing tool cannot be installed, adjustment of the fuel pump camshaft timing will be required.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- If required, carefully adjust the crankshaft position to allow correct installation of the special tool.
  Special Tool(s): JLR-303-1303
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): JLR-303-1621
CAUTION: Install a new seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the special tool.
  Special Tool(s): JLR-303-1303
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Torque : 10 Nm
NOTE: Install a new sealing plug and sealing washer.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 24 Nm
Connect the battery ground cable.
Refer to: SPECIFICATIONS
- Fill the engine with oil - for filling values on vehicles without supercharger:
  Refer to: SPECIFICATIONS
- Fill the engine with oil - for filling values on vehicles with supercharger:
  Refer to: SPECIFICATIONS
- Clean any residual engine oil from the oil filler cap area.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure that the vehicle has been left for 5 minutes from filling with oil.
- Start the engine and allow to run for 10 minutes, stop the engine.
- Check for leaks.
CAUTION:
- Make sure that the selector lever is in the park (P) position.
- Make sure that the hood is open.
- Set the ignition to the ON position.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand OK button to access the Instrument Cluster (IC) Main Menu.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand directional button and select Service Menu.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand OK button.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand directional button and select the Oil Level display.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand OK button to access the Oil Level display.
CAUTION: Make sure that the hood is open.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the speed control cancel button twice within 2 seconds while being on the oil level display.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- The message center displays the actual oil level in service mode.
- Only after having started and run the engine for 15 minutes (as indicated in Step 20), switch off the engine, then stabilizing for 10 minutes, take a reading from the oil level display and, if necessary top up with engine oil.
Set the ignition to the OFF position.
Allow 10 minutes for the engine oil level to stabilize if there has been additional oil top up.
NOTE: The following steps are to update the average oil level value.
Repeat step 21 to 27 to access the oil level display in service mode.
NOTE: The actual volume displayed on the bar graph will be written into the electronic control unit as a new value.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press and hold the speed control cancel button for more than 5 seconds.
- The message center display the current oil level.
Set the ignition to the OFF position.
Set the ignition to the ON position.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand OK button to access the Instrument Cluster (IC) Main Menu.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand directional button and select Service Menu.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand OK button.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand directional button and select the Oil Level display.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Press the left-hand OK button and follow the instructions.
- NOTE: If the message shows "Not available" wait for further 10 mins to allow the oil level to stabilize.

  Make sure that the average oil level value has now been updated.
Refer to: ENGINE COVER - V6 S/C 3.0L PETROL/V8 S/C 5.0L PETROL
