Right Catalytic Converter (G2286584): Removal

WARNING: Observe due care when working near a hot exhaust system.

CAUTION: Care must be taken not to contaminate the sensitive areas of the Heated Oxygen Sensor (HO2S).

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING
Remove the exhaust system.
Refer to: EXHAUST SYSTEM
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

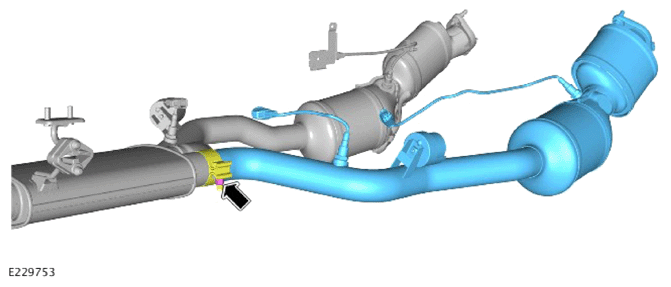

- Remove the nut and release the retaining clamp.
- Remove the right catalytic converter assembly.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

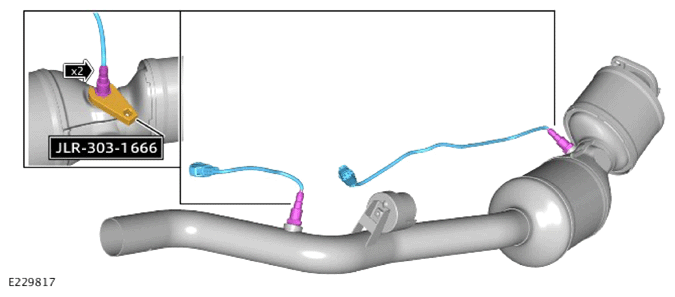

- Using the special tool remove the HO2S .
  Special Tool(s): JLR-303-1666
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

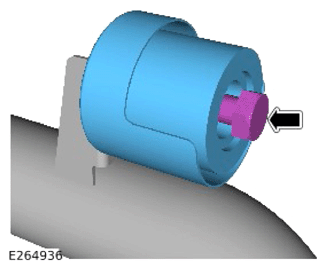

- Remove the bolt.
- Remove the mass damper.
