Timing Belt (G1879909): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the timing cover.
Refer to: TIMING COVER
Remove the starter motor.
Refer to: STARTER MOTOR
Remove the bracket.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

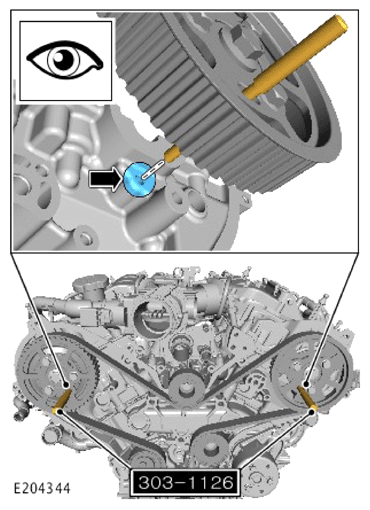

Rotate the crankshaft clockwise until both the camshaft timing pegs can be correctly installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): 303-1126
Remove the crankshaft blanking grommet.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Install the crankshaft timing peg.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): 303-1117
CAUTION:
- Do not use the special tools to lock the camshafts. Failure to follow this instruction may result in damage to the engine or the special tools.
- Do not allow the camshaft pulley center retaining bolt to turn.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

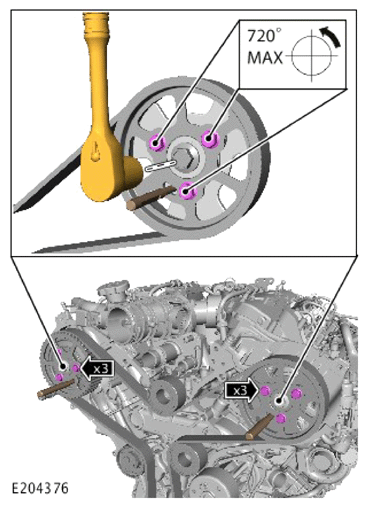

- Using a suitable tool, counterhold the camshaft pulley center retaining bolts.
- Loosen the outer camshaft pulley bolts a maximum of 2 turns.

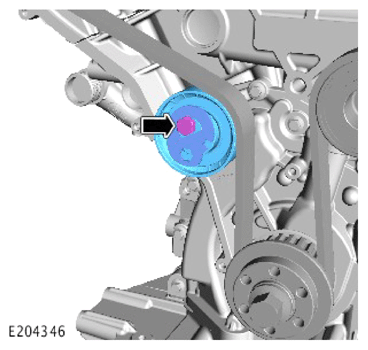

Remove and discard the timing belt tensioner assembly and bolt.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

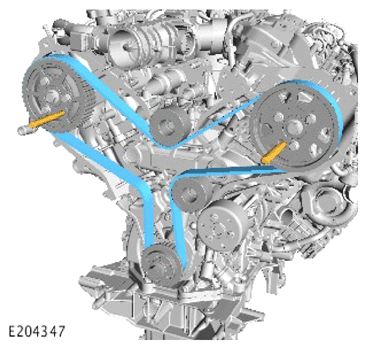

Remove and discard the timing belt.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
