Right Valve Cover (G1779731): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  3. Partially drain the cooling system.

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING

  4. Remove the throttle body.

    Refer to: INTAKE AIR SHUTOFF THROTTLE

  5. G14049881Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 electrical connectors.
    • Release the vacuum harness and position aside.
  6. Always follow the cleaning process before doing any repairs to the fuel injection system components. Failure to follow this instruction may result in damage to the fuel injection system.

    Refer to: FUEL INJECTION COMPONENT CLEANING

  7. Remove the right fuel rail.

    Refer to: RIGHT FUEL RAIL

  8. Disconnect and release the fuel injector wiring harness.

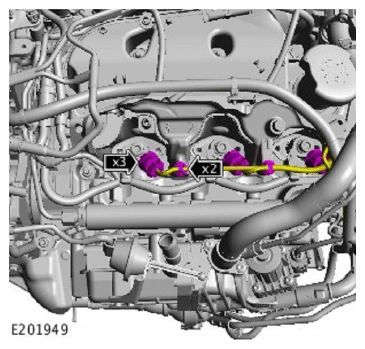

    G12009631Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  9. CAUTION: Be prepared to collect escaping fuel.

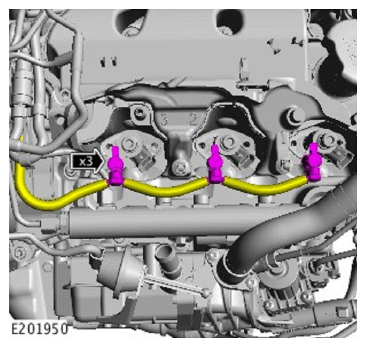

    G12009632Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the fuel injector leak off pipes from the injectors.

  10. Remove the fuel injector bolts.

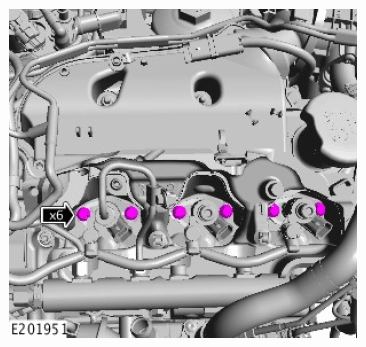

    G12009635Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  11. Using the special tools remove the fuel injector.

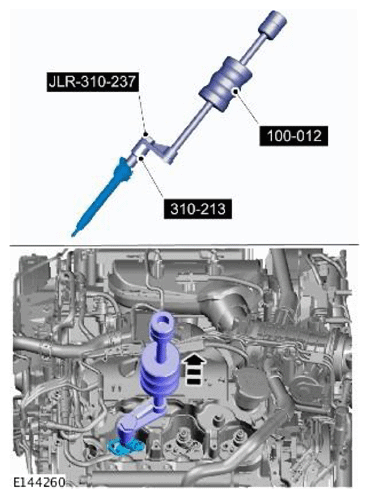

    G11709986Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 100-012  , 310-213  , JLR-310-237

  12. G11695882Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the O-ring seal.
    • Remove and discard the sealing washer.
  13. Remove and discard the fuel injector retaining clamp.
    G11695883Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  14. Repeat steps  11 to  13 for the remaining 2 fuel injectors.

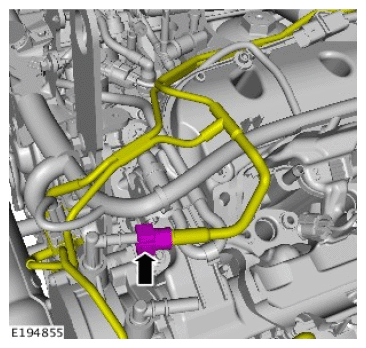

  15. Release the vacuum harness.
    G11999392Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

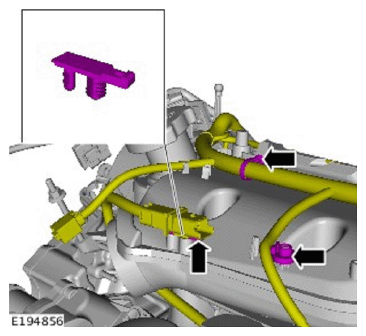

  16. Release the wiring harness.
    G11999393Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  17. Remove the Noise, Vibration and Harshness material.
    G11756499Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  18. Remove the pin.
    G11756500Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  19. Remove the plastic fixings.
    G11756501Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  20. Remove the right valve cover mounting bracket.
    G11756502Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  21. Remove the fuel rail mounting bracket.
    G11756503Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

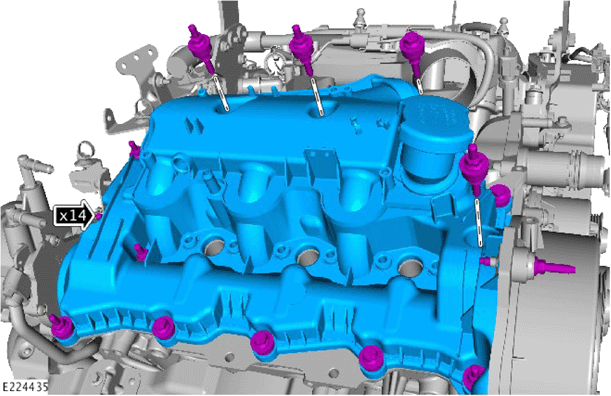

  22. G14049923Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Loosen the 14 left valve cover bolts.
    • Remove the right valve cover.
    • Remove and discard the right valve cover gasket.
