Right Valve Cover (G1779731): Installation

WARNING: This page is about a different variant/trim than selected.
  1. CAUTION:
    • Use only a plastic scraper when removing the sealing material.
    • Use lint free cloth.
    • Make sure that the mating faces are clean and free of corrosion and foreign material.
    • Installation of the valve cover and tightening must be carried out within 7 minutes of applying the sealant.
    NOTE:
    1. Right valve cover.
    2. Left valve cover.

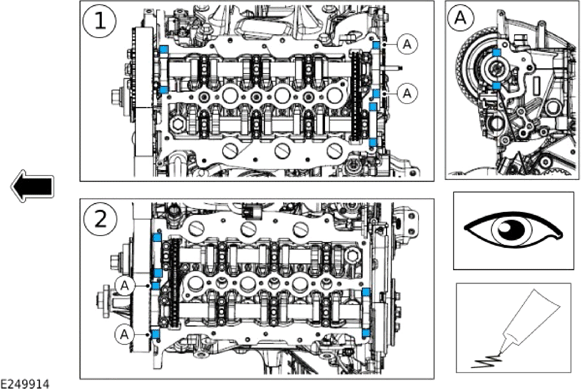

    G14049901Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Apply (0.35g) a small amount of gasket sealant (Loctite 5900 or Hylosil sealant) in each location as shown on the illustration. Install the valve cover immediately after applying the sealant.

  2. CAUTION: Make sure that the mating faces are clean and free of corrosion and foreign material.
    • Install a new right valve cover gasket

      Renew Part: Camshaft cover gasket Quantity: 1  .

    • Install, but do not fully tighten the 14 left valve cover bolts.

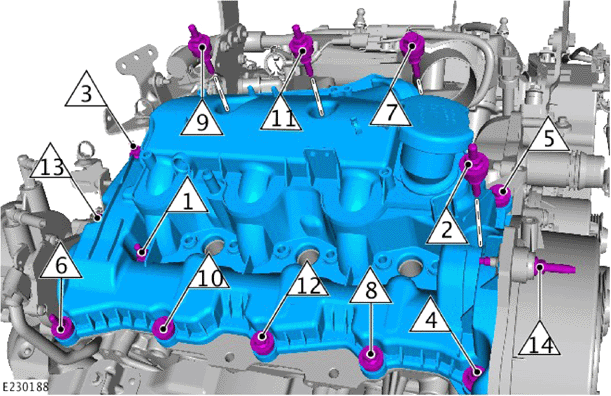

  3. G14049925Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Tighten the 14 left valve cover bolts in the indicated sequence.

      Torque  : 10 Nm

  4. Install the fuel rail mounting bracket.

    Torque  : 23 Nm

  5. Install the right valve cover mounting bracket.

    Torque  : 10 Nm

  6. Install the plastic fixings.
  7. Install the pin.

    Torque  : 9 Nm

    • Install the Noise, Vibration and Harshness material.
    • Install the wiring harness to the right valve cover.
    • Install the vacuum harness.
    • Install new fuel injector retaining clamps.
    • Install new O-ring seals.
    • Install new sealing washers.

      Renew Part: Fuel Injector replacement kits Quantity: 3  .

  10. Install the fuel injectors.

    Torque  : 9 Nm

    • Install the fuel injector leak off pipes.
    • Connect the fuel injector wiring harness.
  12. Install the right fuel rail.

    Refer to: RIGHT FUEL RAIL

    • Install the vacuum harness.
    • Connect the electrical connectors.
  14. Install the intake air shutoff throttle.

    Refer to: INTAKE AIR SHUTOFF THROTTLE

  15. Fill the cooling system.

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING

  16. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
