Right Camshaft (G2033430): Installation

WARNING: This page is about a different variant/trim than selected.

Install the secondary timing chain onto the camshafts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Install the secondary timing chain tensioner assembly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure that the dots on the camshafts are aligned at the 12 o'clock position. Failure to follow this instruction may result in damage to the engine.
NOTE:
- Lubricate the camshafts and the camshaft bearing caps with oil meeting JLR specification prior to installation.
- Use hypoid oil to lubricate the camshafts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the right bank camshafts and secondary timing chain tensioner assembly.
Tighten the 2 bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 10 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Apply Loctite 518 sealant to the exhaust camshaft seal bearing caps.
- Apply Loctite 518 sealant, 2 mm wide, to the rear left and front right camshaft bearing caps.
- Apply Loctite 518 sealant, 7 mm diameter, to the front left and rear right camshaft bearing caps.
NOTE: Tighten the bolts in the indicated sequence below.

Fig 1: Camshaft Bearing Caps Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the camshaft bearing 9 caps in their original positions.
- Tighten the 18 camshaft bearing cap bolts.
  Torque

  Bolts 1 - 14

  Stage 1: 1 Nm

  Stage 2: 5 Nm

  Stage 3: 10 Nm

  Bolts 15 - 18

  Stage 1: 1 Nm

  Stage 2: 5 Nm

  Stage 3: 10 Nm
Remove the secondary timing chain tensioner retaining pin.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Install a new seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the new seal on the special tool.

Special Tool(s): 303-1119

Renew Part: Camshaft seal Quantity: 1.
CAUTION:
- A new camshaft front seal is supplied with a transit sleeve that must not be removed until the camshaft front seal is fully installed. Failure to follow this instruction may result in damage to the vehicle.
- Do not use any lubricant on the camshaft front seal, transit sleeve or the camshaft. Failure to follow this instruction may result in damage to the vehicle.
- Make sure the seal is installed correctly.
- Make sure that the mating faces are clean and free of corrosion and foreign material.
NOTE: Make sure that the seal is 1 mm below the face of the cylinder head.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the special tool install the camshaft front seal.
Remove the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

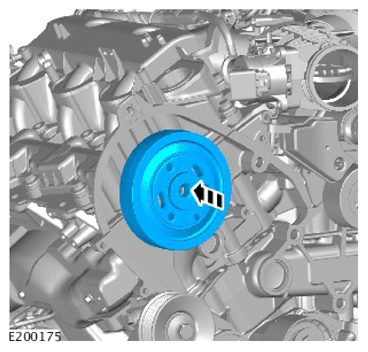

Install the camshaft pulley hub.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

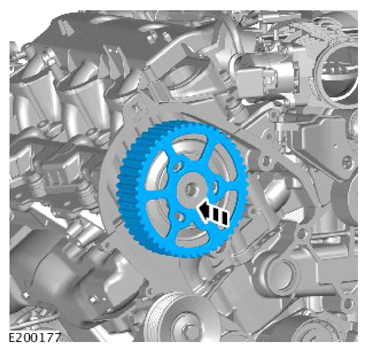

Install the camshaft pulley.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Install the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): 303-1124
Using the special tool tighten the bolt.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

Stage 1: 80 Nm

Stage 2: 80°
Remove the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

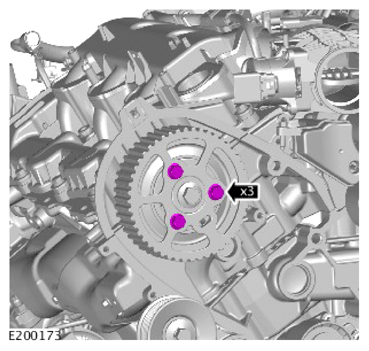

CAUTION: Only tighten the bolts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the 3 bolts.
Install the new timing belt.
Refer to: TIMING BELT
Install the right valve cover.
Refer to: RIGHT VALVE COVER
Install the brake vacuum pump.
Refer to: BRAKE VACUUM PUMP - TDV6 3.0L DIESEL
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
