Left Valve Cover (G1085332): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  3. Partially drain the cooling system.

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING

  4. Remove the throttle body.

    Refer to: INTAKE AIR SHUTOFF THROTTLE

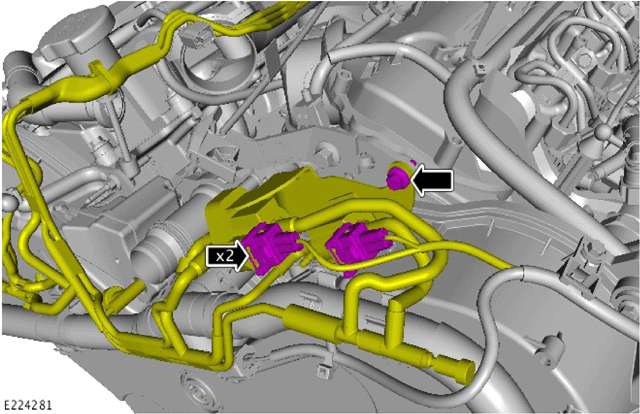

  5. G14049881Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 electrical connectors.
    • Release the vacuum harness and position aside.

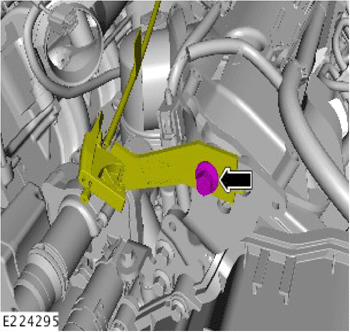

  6. G14049882Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the emergency park release assembly and position aside.
  7. CAUTION: Be prepared to collect escaping engine coolant.

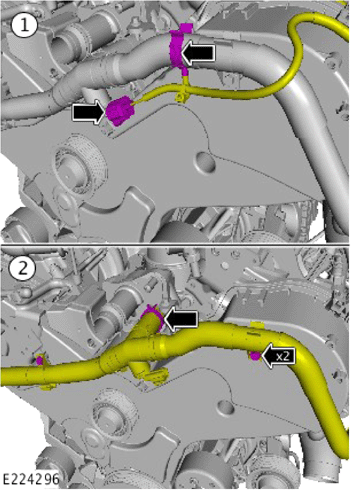

    G14049883Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector and release the wiring harness from the engine coolant pipe.
    • Release the engine coolant hose from the engine coolant outlet.
    • Remove the 2 bolts.
  8. CAUTION: Be prepared to collect escaping engine coolant.

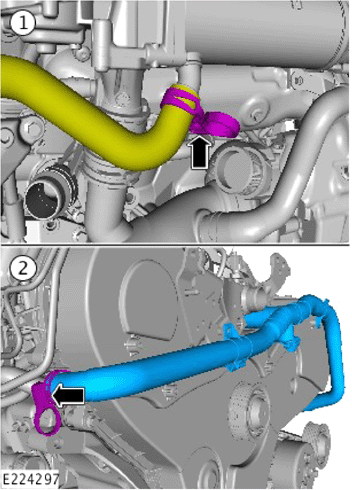

    G14049884Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the engine coolant hose from the left Exhaust Gas Recirculation (EGR).
    • Remove the engine coolant hose.
  9. Always follow the cleaning process before doing any repairs to the fuel injection system components. Failure to follow this instruction may result in damage to the fuel injection system.

    Refer to: FUEL INJECTION COMPONENT CLEANING

  10. Remove the left fuel rail.

    Refer to: LEFT FUEL RAIL

  11. Disconnect and release the fuel injector wiring harness.

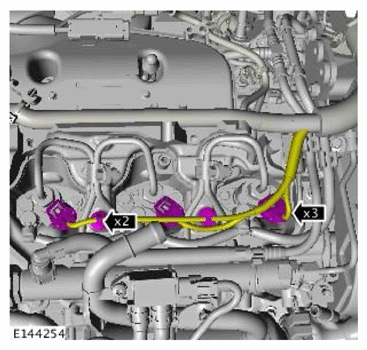

    G11709954Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  12. Remove the fuel injector bolts.
    G11709985Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

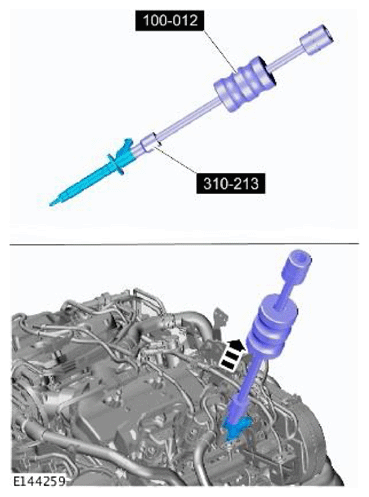

  13. Using the special tools remove the fuel injector.
    G11709959Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 100-012  , 310-213

  14. G11695882Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the O-ring seal.
    • Remove and discard the sealing washer.

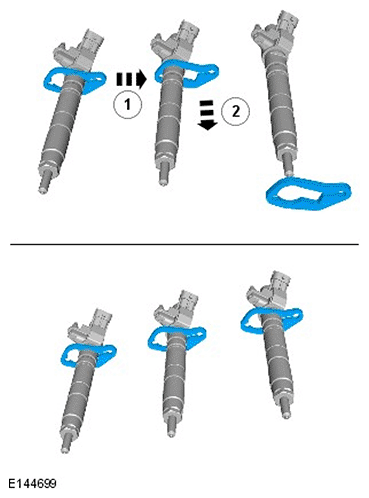

  15. Remove and discard the fuel injector retaining clamp.
    G11695883Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  16. Repeat steps  14 to 16 for the remaining 2 fuel injectors.
  17. Disconnect the electrical connector and release the wiring harness.

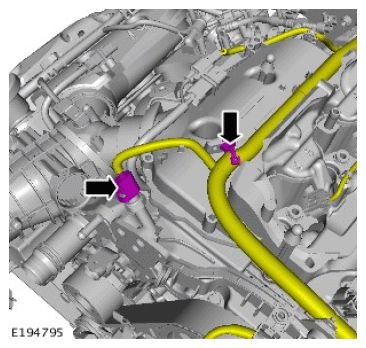

    G11999374Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

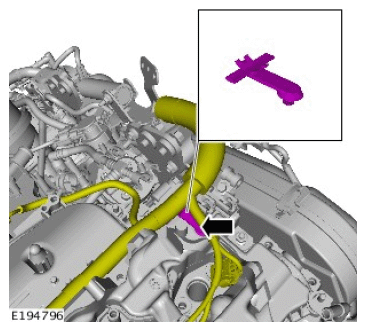

  18. Release the wiring harness.
    G11999375Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  19. Remove the Noise, Vibration and Harshness material.
    G11756495Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  20. Remove the pins.
    G11756496Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  21. Remove the left valve cover mounting bracket.
    G11756497Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

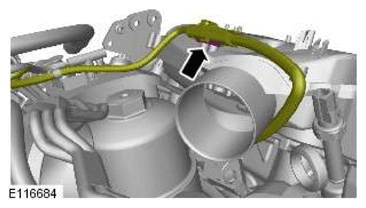

  22. Release the wiring harness.
    G11602220Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  23. Remove the fuel rail mounting bracket.
    G11756498Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

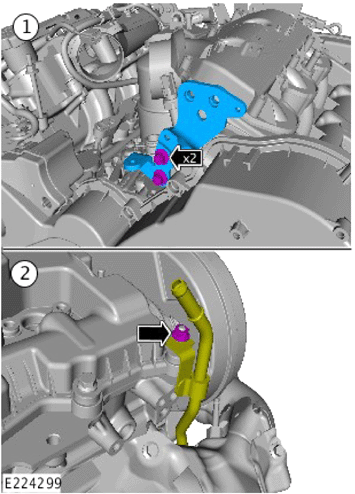

  24. G14049897Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the engine mounting bracket.
    • Release the coolant pipe from the left valve cover.
  25. Remove the 6 timing cover bolts.

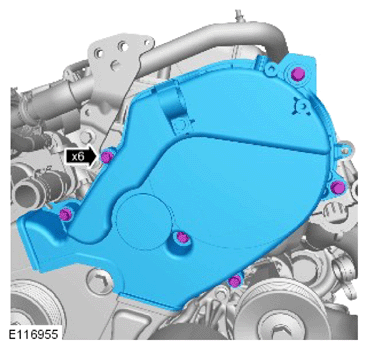

    G14283367Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

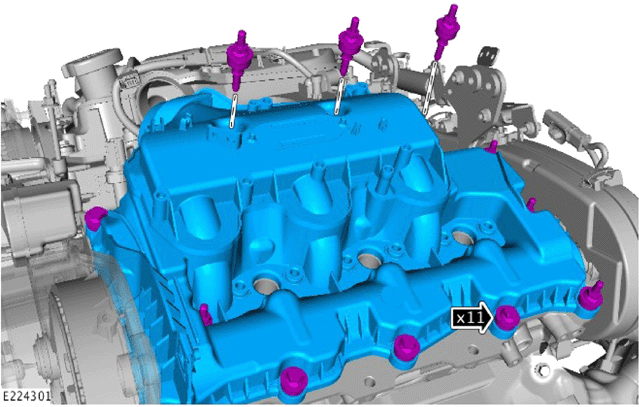

  26. G14049900Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Loosen the 11 left valve cover bolts.
    • Remove the left valve cover.
    • Remove and discard the left valve cover gasket.
