Left Engine Mount (G2131800): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the Air Conditioning (A/C) compressor.
Refer to: AIR CONDITIONING COMPRESSOR - TDV6 3.0L DIESEL

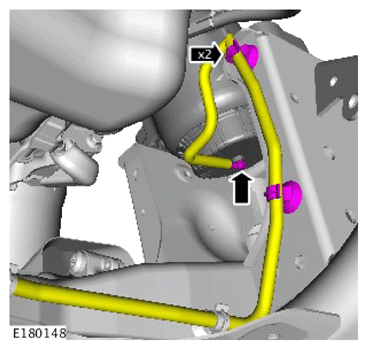

Disconnect the vacuum tube.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

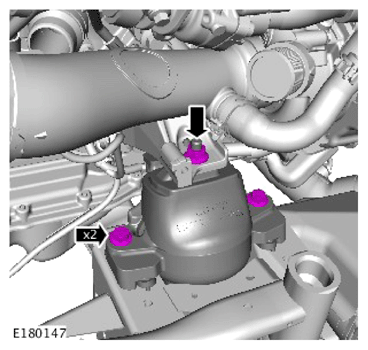

Remove the engine mount nut and bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

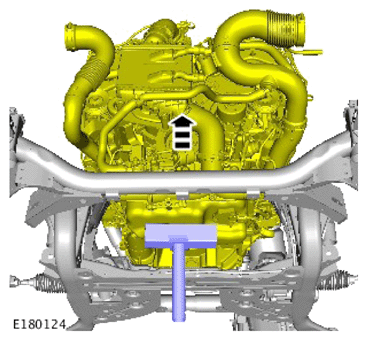

CAUTION: Use a wooden block to protect the oil pan when supporting the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Raise the engine off the engine mount.

General Equipment: Transmission jack
CAUTION: Note the fitted position of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

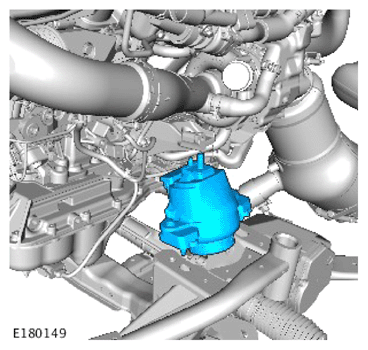

Remove the engine mount.
