Left Cylinder Head (G1085322): Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  3. Drain the cooling system.

    Refer to the appropriate Cooling System Draining, Filling and Bleeding service information .

  4. Remove the left side Exhaust Gas Recirculation (EGR) valve.

    Refer to: LEFT EXHAUST GAS RECIRCULATION VALVE

  5. Remove the left side exhaust manifold.

    Refer to: LEFT EXHAUST MANIFOLD

  6. Remove and discard the oil filter element.

    Refer to: OIL FILTER ELEMENT

  7. Remove the crankcase vent oil separator.

    Refer to: CRANKCASE VENT OIL SEPARATOR

  8. Remove the left side camshafts.

    Refer to: LEFT CAMSHAFT

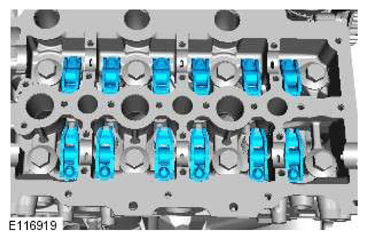

  9. NOTE: Note the position of the components prior to removal.
    G11601944Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the valve rocker arms and hydraulic adjusters.

  10. NOTE: Discard the seals.
    G11601943Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the coolant outlet manifold.

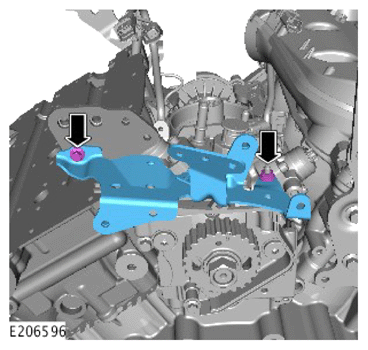

  11. Remove the wiring harness support bracket.
    G14283138Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

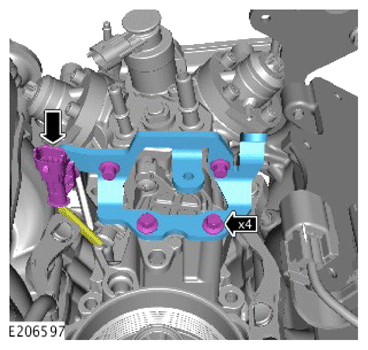

  12. Remove the fuel pump bracket.
    G14283139Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

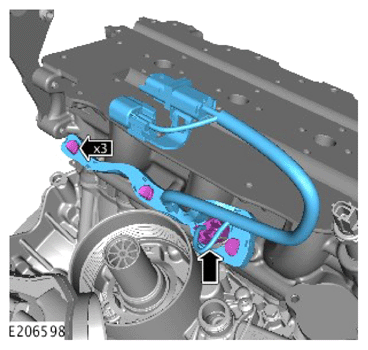

  13. Remove the glow plug wiring harness.
    G14283140Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

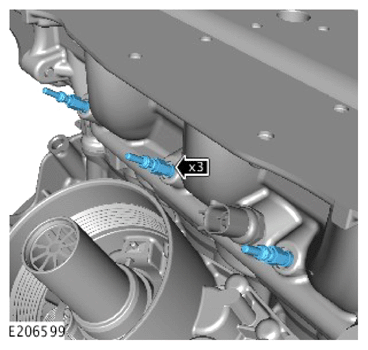

  14. Remove the left side glow plugs.
    G14283141Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

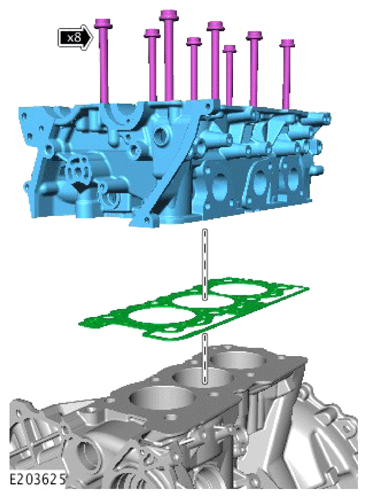

  15. CAUTION: Discard the bolts.
    G14283142Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the cylinder head and cylinder head gasket.

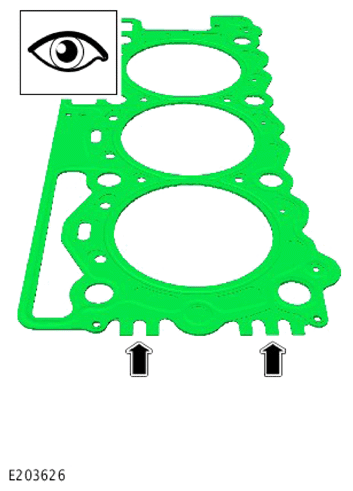

  16. Note the number of cutouts on the old cylinder head gasket. Make sure the correct new cylinder head gasket is installed.
    G14283143Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  17. Using a plastic scraper, clean the cylinder head and block mating faces.
  18. NOTE:
    • If the cylinder head face distortion is within tolerance and can be reused. Do not disassemble further.
    • If the cylinder head face distortion is not within tolerance or a new cylinder head is required. Continue with this procedure.

    Check the cylinder head for distortion.

    Refer to: CYLINDER HEAD DISTORTION

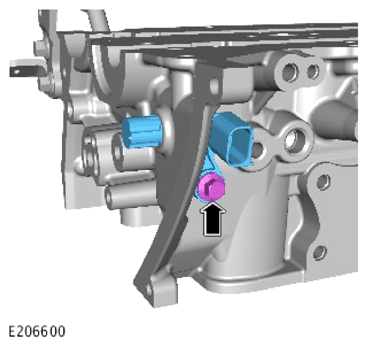

  19. Remove and discard the camshaft position sensor.
    G14283144Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

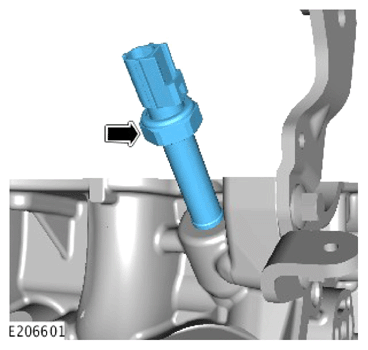

  20. Remove the oil temperature sensor.
    G14283145Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

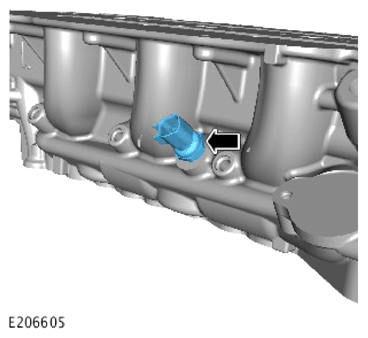

  21. Remove the engine coolant temperature sensor.
    G14283146Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

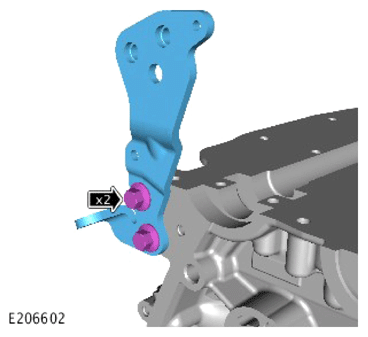

  22. Remove the bracket from the front of the cylinder head.
    G14283147Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

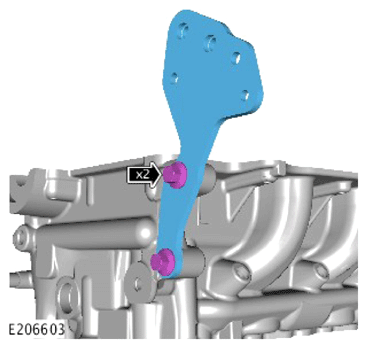

  23. Remove the bracket from the rear of the cylinder head.
    G14283148Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
