Left Cylinder Head (G1085322): Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the bracket to the rear of the cylinder head.

    Torque  : 24 Nm

  2. Install the bracket to the front of the cylinder head.

    Torque  : 24 Nm

  3. Install the engine coolant temperature sensor.

    Torque  : 14 Nm

  4. Install the oil temperature sensor.

    Torque  : 14 Nm

  5. Install a new camshaft position sensor.

    Renew Part: Camshaft position sensor Quantity: 1.

    Torque  : 10 Nm

  6. CAUTION:
    • Use care when installing the cylinder head. Damage to the cylinder block, cylinder head or cylinder head gasket may result.
    • The head gasket must be installed over the cylinder block dowels.
    • Make sure that new cylinder head bolts are installed.
    NOTE: No additional lubrication to the cylinder head bolts is required.
    • Install a new cylinder head gasket.

      Renew Part: Cylinder head gasket Quantity: 1.

    • Install the cylinder head.
    • Hand tighten the bolts only at this stage.

      Renew Part: Cylinder head bolts Quantity: 1.

  7. Tighten the bolts in the indicated sequence below.

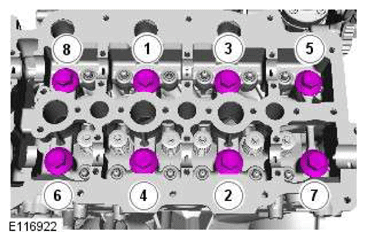

    Fig 1: Cylinder Head Bolts Tightening Sequence
    G11601948Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque

    Stage 1: 80 Nm

    Stage 2: 180°

  8. Install the left side glow plugs.

    Torque  : 11 Nm

  9. Install the left side glow plug wiring harness.
  10. Install the fuel pump bracket.

    Torque  : 10 Nm

  11. Install the wiring harness support bracket.

    Torque  : 10 Nm

  12. NOTE: Install new seals.

    Install the coolant outlet manifold.

    Renew Part: Engine coolant outlet seal Quantity: 1.

    Torque  : 10 Nm

  13. NOTE: Install the components in their noted removal positions.

    Install the valve rocker arms and hydraulic adjusters.

  14. Install the left side camshafts.

    Refer to: LEFT CAMSHAFT

  15. Install the crankcase vent oil separator.

    Refer to: CRANKCASE VENT OIL SEPARATOR

  16. Install a new oil filter element.

    Refer to: OIL FILTER ELEMENT

  17. Install the left side exhaust manifold.

    Refer to: LEFT EXHAUST MANIFOLD

  18. Install the left side Exhaust Gas Recirculation (EGR) valve.

    Refer to: LEFT EXHAUST GAS RECIRCULATION VALVE

  19. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  20. Fill and bleed the cooling system.

    Refer to the appropriate Cooling System Draining, Filling and Bleeding service information .
