Left Camshaft (G2033429): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove and discard the fuel pump belt.
Refer to: REAR END ACCESSORY DRIVE
Remove the left valve cover.
Refer to: LEFT VALVE COVER
Remove the timing belt.
Refer to: TIMING BELT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 bolts.
- Remove the rear camshaft pulley.
Install the special tool onto the camshaft pulley hub.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): 303-1124
Using the special tool remove the bolt.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the special tool from the camshaft pulley hub.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the camshaft pulley hub.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 bolts.
- Remove the fuel pump belt cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 bolts.
- Remove the front camshaft pulley.
Install the special tool onto the camshaft pulley hub.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): 303-1124
Using the special tool remove the bolt.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the special tool from the camshaft pulley hub.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the camshaft pulley hub.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Reposition the secondary timing chain tensioner.
- Retain the secondary timing chain tensioner plunger.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

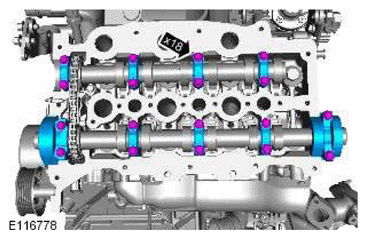

- Remove the 18 bolts.
- Remove the 9 camshaft bearing caps evenly.
Remove the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Discard the seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the 2 seals.
Remove the left bank camshafts and secondary timing chain tensioner assembly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the secondary timing chain tensioner assembly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the secondary timing chain from the camshafts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
