FLEXPLATE (G2131637): Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle on a suitable 2 post lift.

  3. Remove the transmission.

    Refer to: TRANSMISSION - TDV6 3.0L DIESEL

  4. Install the special tool as shown.
    G11756418Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 303-1123

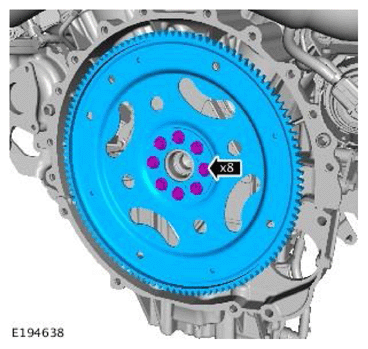

  5. Remove the bolts and the flexplate.
    G11756419Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
