Electric Oil Pump (G1879622): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  3. Remove the generator.

    Refer to: GENERATOR

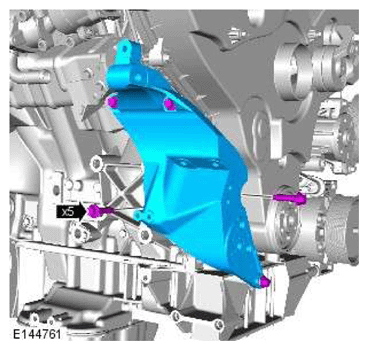

  4. Remove the generator mounting bracket.
    G11602132Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  5. Remove the crankshaft pulley.

    Refer to: CRANKSHAFT PULLEY

  6. Remove the timing belt cover sealing strips.
    G11695803Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. Disconnect the wiring harness.
    G11695804Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  8. Remove the oil pump lower retaining bolts.
    G11602135Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

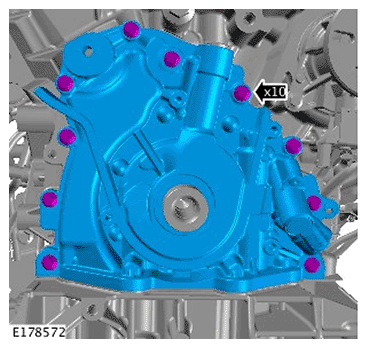

  9. Remove the oil pump.
    G11695805Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
