Electric Oil Pump (G1879622): Installation

WARNING: This page is about a different variant/trim than selected.

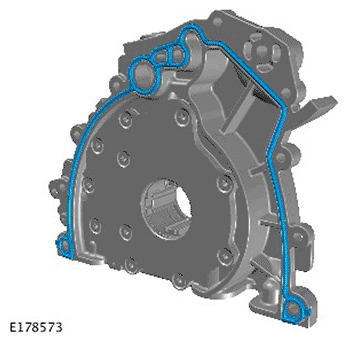

  1. Install a new gasket.
    G11695807Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Oil pump gasket Quantity: 1.

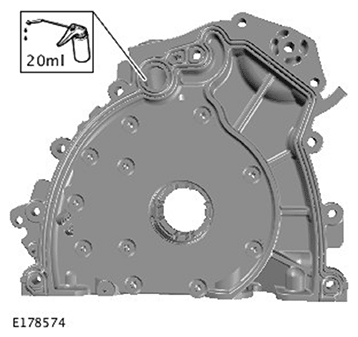

  2. Prime the oil pump with clean engine oil.
    G11695808Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

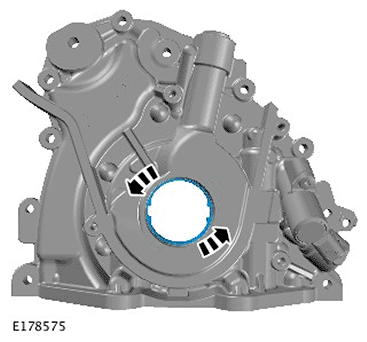

  3. Rotate the oil pump drive 2 complete turns.
    G11695809Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

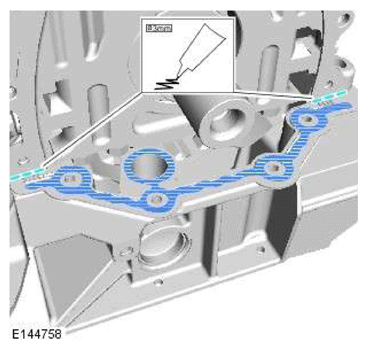

  4. CAUTION: Make sure that the mating faces are clean and free of foreign material.
    G11602141Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Apply sealant WSE-M4G323-A5 in a 3 mm bead to the two areas shown, also apply a smear of sealant to the gasket face as illustrated.

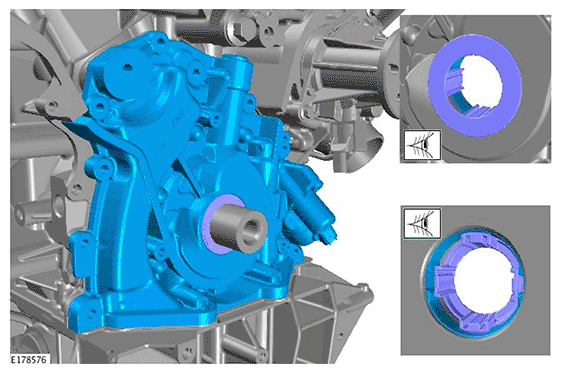

  5. NOTE:
    • Make sure the oil pump locator is installed correctly.
    • Make sure the gasket is installed correctly.
    G11695811Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the oil pump.

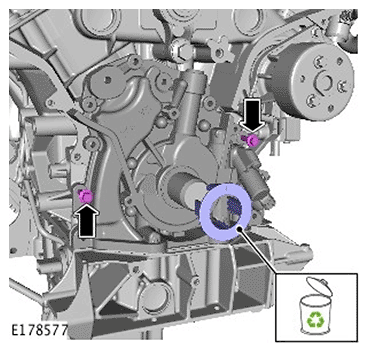

  6. NOTE: Remove the oil pump locator.
    G11695812Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install two bolts to the oil pump, only finger tighten at this stage.

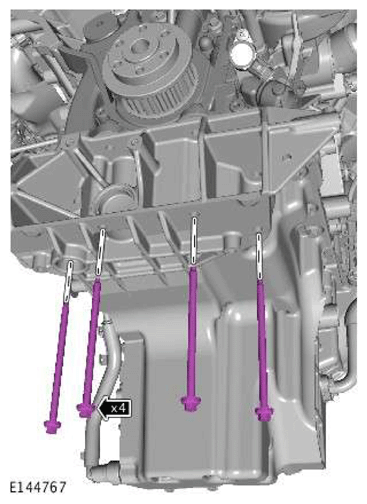

  7. Install the oil pump lower retaining bolts.
    G11602135Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10 Nm

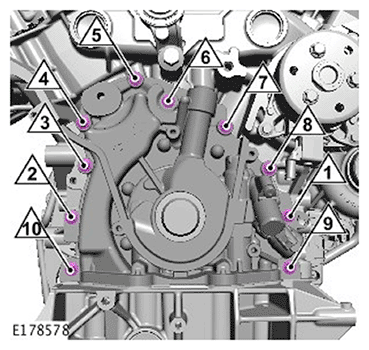

  8. Install the remaining bolts and tighten in the sequence shown below
    Fig 1: Oil Pump Bolts Tightening Sequence
    G11695814Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10 Nm

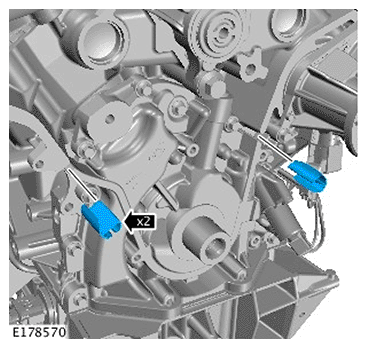

  9. Install the timing belt cover sealing strips.
    G11695803Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

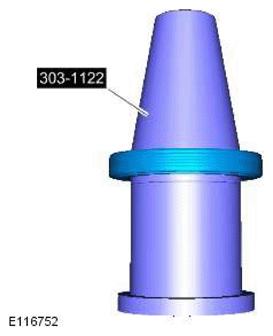

  10. CAUTION: Do not use any lubricant on the crankshaft front seal, special tools or the crankshaft. Failure to follow this instruction may result in damage to the vehicle.
    NOTE: Make sure that all the component mating faces are clean.
    G11601904Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install a new crankshaft front seal to the special tool.

    Install the Special Tool(s): 303-1122

    Renew Part: Crankshaft front oil seal Quantity: 1.

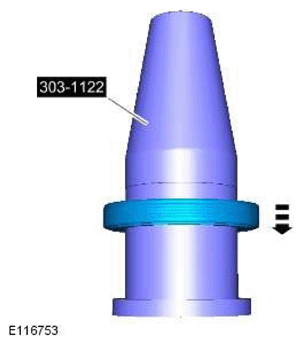

  11. NOTE: Remove the sleeve from the special tool.
    G11601905Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Reposition the crankshaft front seal along the special tool.

    Install the Special Tool(s): 303-1122

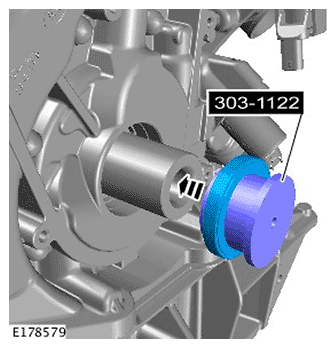

  12. Install the special tool to the crankshaft.
    G11695492Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the Special Tool(s): 303-1122

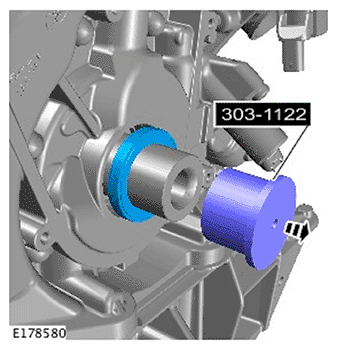

  13. Install the special tool to the crankshaft.
    G11695493Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the Special Tool(s): 303-1122

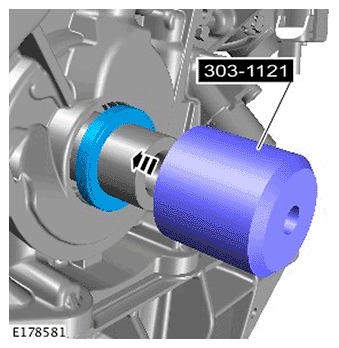

  14. Install the special tool to the crankshaft.
    G11695494Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 303-1121A

  15. NOTE:
    • Make sure the seal is installed correctly.
    • Use the crankshaft bolt with the service tool.

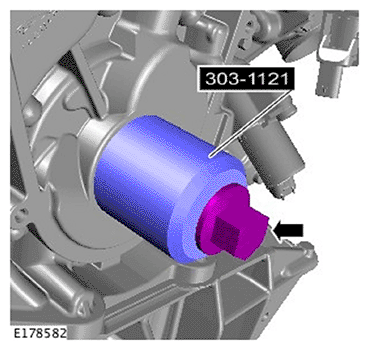

    G11695495Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool to the crankshaft.

    Special Tool(s): 303-1121A

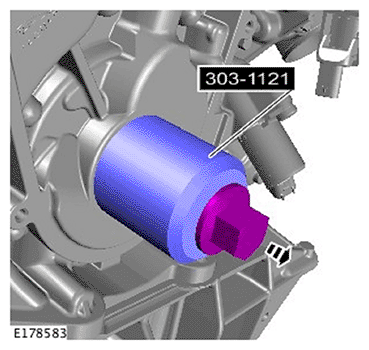

  16. NOTE:
    • Make sure the seal is installed correctly.
    • Wait 10 seconds before removing the crankshaft seal installation tool.
    G11695496Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the crankshaft pulley retaining bolt.

    Special Tool(s): 303-1121A

    Renew Part: Crankshaft pulley bolt Quantity: 1.

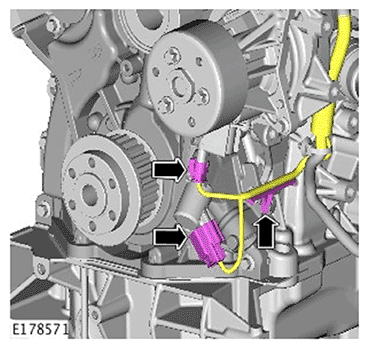

  17. Connect the wiring harness.
    G11695804Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  18. Install the crankshaft pulley.

    Refer to: CRANKSHAFT PULLEY

  19. Install the generator mounting bracket.
    G11602159Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  20. Install the generator.

    Refer to: GENERATOR

  21. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
