Crankshaft Vibration Damper (G2165823): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  3. Remove the charge air cooler.

    Refer to: CHARGE AIR COOLER

  4. Remove the accessory drive belt.
    G14283069Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

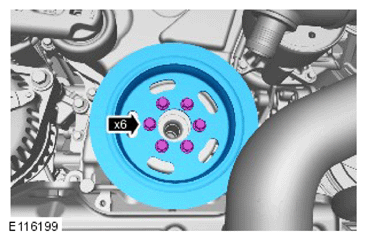

  5. Remove the crankshaft vibration damper.
    G14283070Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
