Crankshaft Pulley (G2033434): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  3. Remove the cooling fan assembly.

    Refer to: ELECTRIC COOLING FAN AND SHROUD

  4. Remove the timing belt.

    Refer to: TIMING BELT

  5. Remove the special tool.
    G11601805Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 303-1117

  6. Install the special tool.
    G11601916Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 303-1123

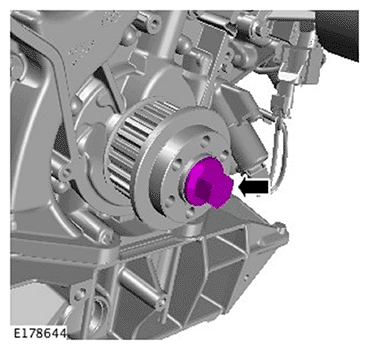

  7. Loosen, but do not fully remove the crankshaft pulley bolt.
    G11695508Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

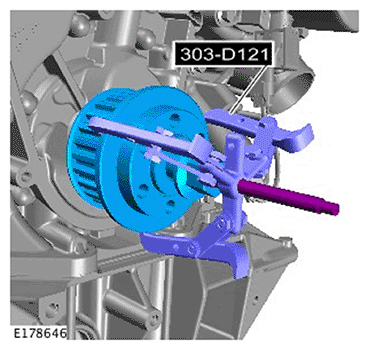

  8. Install the special tool.
    G11695510Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 303-D121

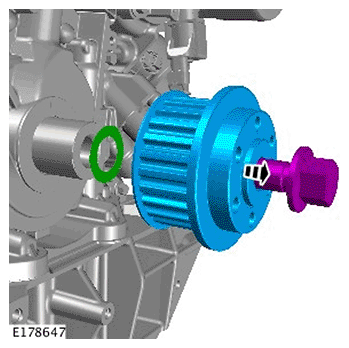

  9. CAUTION: Discard the bolt.
    G11695511Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the bolt.
    • Remove the crankshaft pulley.
    • Remove the friction washer.
