Crankshaft Front Seal (G2033433): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  3. Remove the crankshaft pulley.

    Refer to: CRANKSHAFT PULLEY

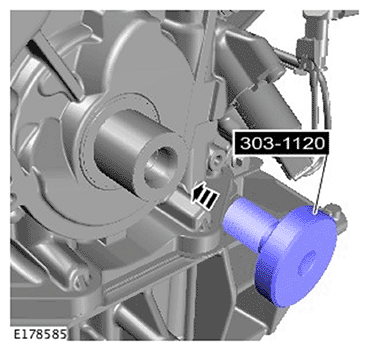

  4. Install the special tool to the crankshaft.
    G11695486Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 303-1120

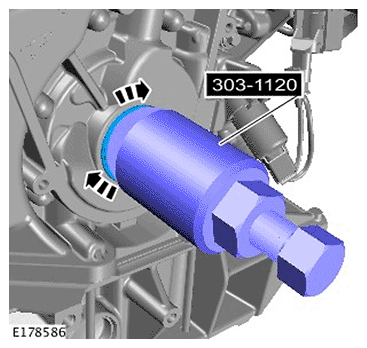

  5. Install the special tool to the crankshaft and rotate to engage the crankshaft front oil seal as shown.
    G11695487Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

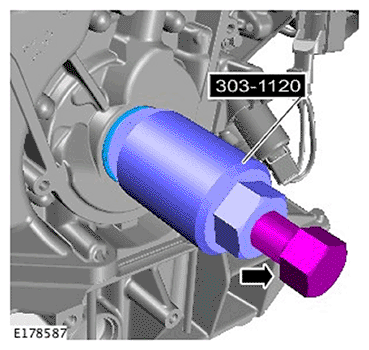

  6. Rotate the special tool bolt.
    G11695488Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

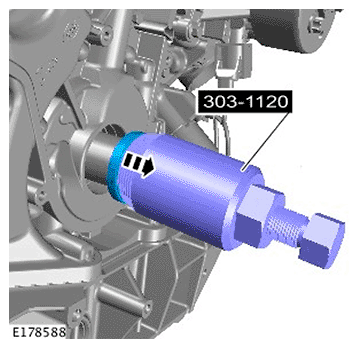

  7. CAUTION: Discard the seal.
    G11695489Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tool remove the crankshaft front oil seal.
