Camshafts - Engine Set (G1879652): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: STARTER MOTOR
Refer to: BRAKE VACUUM PUMP - TDV6 3.0L DIESEL
Refer to: LEFT VALVE COVER
Refer to: RIGHT VALVE COVER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

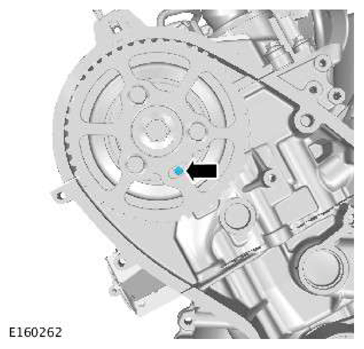

Rotate the crankshaft clockwise to align the crankshaft alignment hole in the flywheel or drive plate with the block aperture.

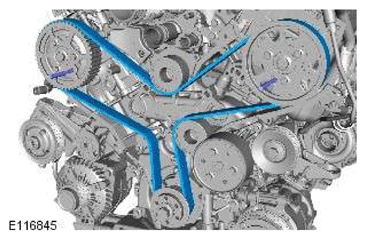

Check the camshaft pulley alignment holes are correctly aligned. If the alignment holes are not aligned, rotate the crankshaft one full turn clockwise.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Install the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

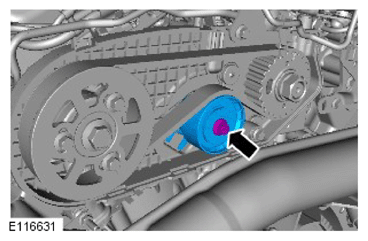

CAUTION: Do not use the special tools to lock the camshafts. Failure to follow this instruction may result in damage to the engine or the special tools.

NOTE: Do not loosen the bolts more than 2 turns.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

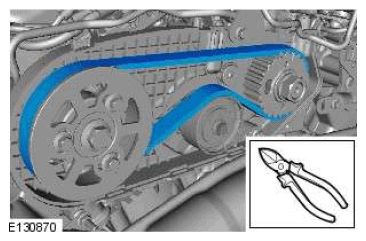

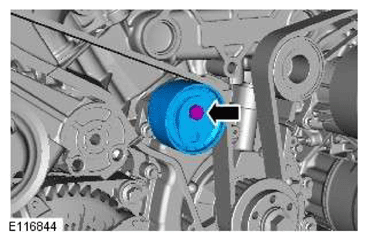

CAUTION:
- Discard the component.
- Discard the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

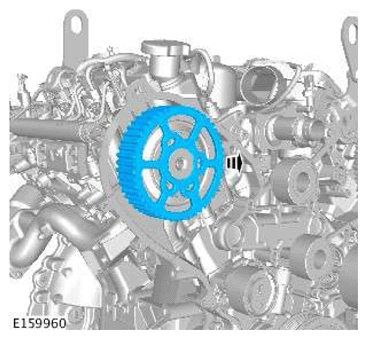

CAUTION: Discard the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Install the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Left shown, right is similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

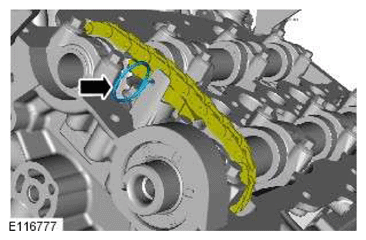

- Reposition the secondary timing chain tensioner.
- Retain the secondary timing chain tensioner plunger.
Remove the camshaft bearing caps evenly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Discard the seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Left shown, right similar.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the right bank camshafts and secondary timing chain tensioner assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Only rotate the crankshaft clockwise.
NOTE:
- This step requires the aid of another technician.
- Engine shown removed for clarity.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

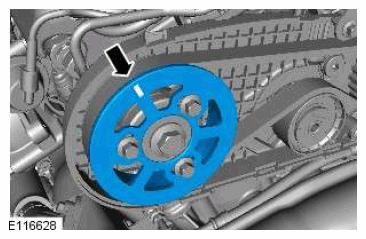

Rotate the crankshaft until the mark on the rear camshaft pulley is in the illustrated position.

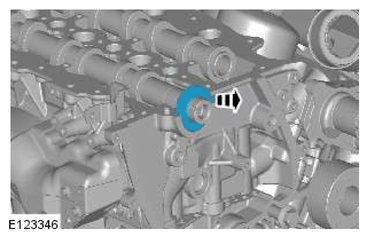

CAUTION: Discard the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Do not loosen the bolts more than 2 turns.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

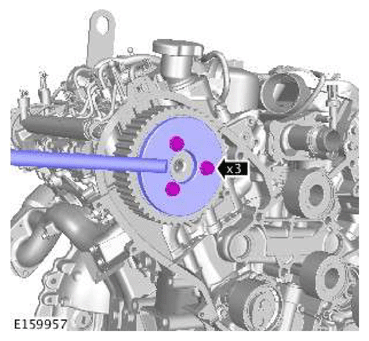

Install the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Install the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Reposition the secondary timing chain tensioner.
- Retain the secondary timing chain tensioner plunger.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Reposition the secondary timing chain tensioner.
- Retain the secondary timing chain tensioner plunger.

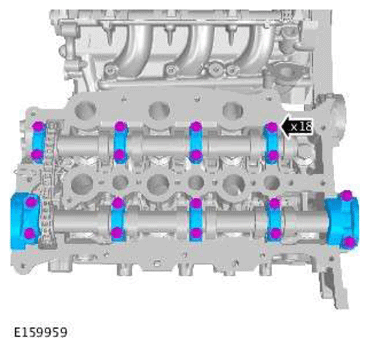

Remove the camshaft bearing caps evenly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Discard the seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the left bank camshafts and secondary timing chain tensioner assembly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: Complete this step for both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the secondary timing chain tensioner assembly.
NOTE: Complete this step for both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

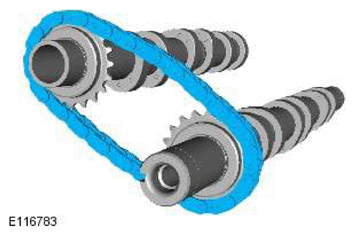

Remove the secondary timing chain from the camshafts.
