Camshaft Rear Seal (G2033432): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  3. Remove and discard the fuel pump belt.

    Refer to: REAR END ACCESSORY DRIVE

  4. G14282953Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts.
    • Remove the front camshaft pulley.
  5. Install the special tool.
    G14282954Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 303-1124

  6. Using the special tool remove the bolt.
    G14282955Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  7. Remove the special tool.
    G14282956Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  8. Remove the camshaft pulley hub.
    G14282957Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

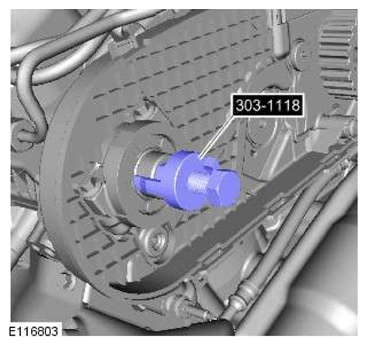

  9. CAUTION: Make sure the special tool is correctly seated behind the camshaft seal. Failure to follow this instruction may result in damage to the special tool.
    G11601886Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): 303-1118

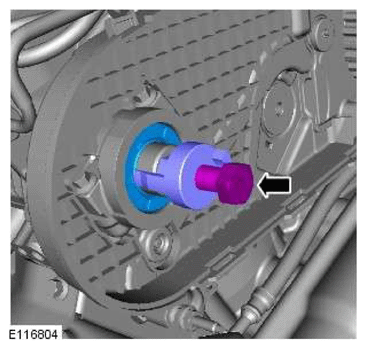

  10. CAUTION: Discard the seal.
    G11601887Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tool remove the camshaft rear seal.
