Camshaft Rear Seal (G2033432): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Install a new seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

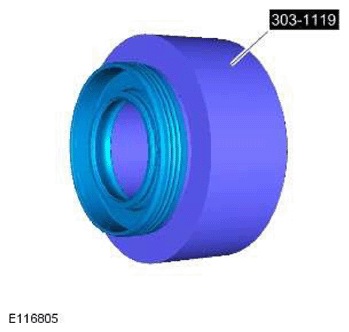

Install the new seal on the special tool.

Special Tool(s): 303-1119
CAUTION:
- Make sure the seal is installed correctly.
- Make sure that the mating faces are clean and free of corrosion and foreign material.
- Do not use any lubricant on the camshaft rear seal or the camshaft. Failure to follow this instruction may result in damage to the vehicle.
NOTE: Make sure that the seal is 1 mm below the face of the cylinder head.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the special tool install the camshaft rear seal.
Remove the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

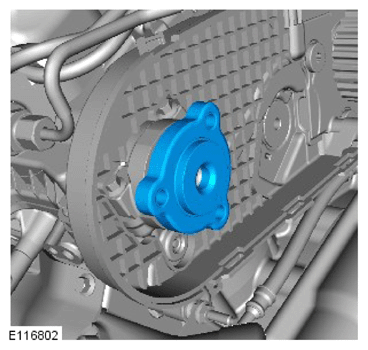

Install the camshaft pulley hub.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

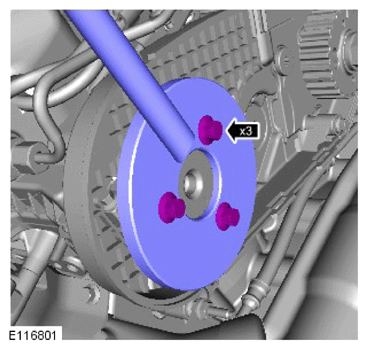

Install the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

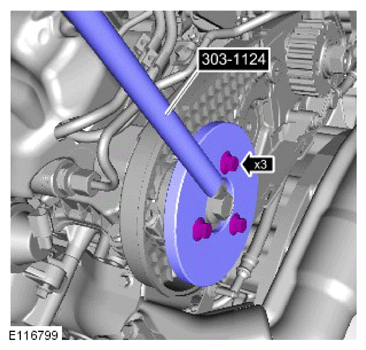

Special Tool(s): 303-1124

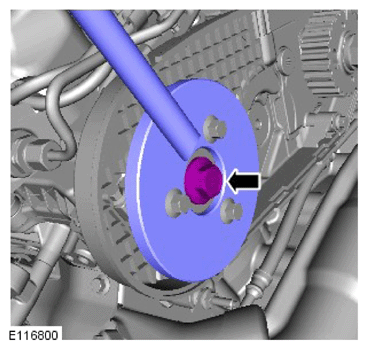

Using the special tool tighten the bolt.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

Stage 1: 80 Nm

Stage 2: 80°
Remove the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Only tighten the bolts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

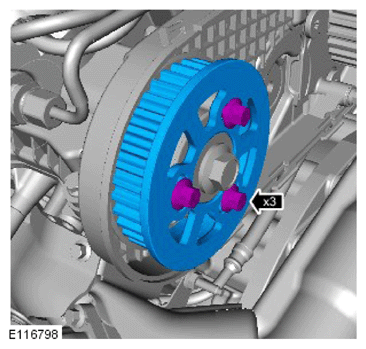

- Install the rear camshaft pulley.
- Tighten the 3 bolts.
Install a new fuel pump belt.
Refer to: REAR END ACCESSORY DRIVE
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
