Camshaft Front Seal (G2033431): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the timing belt.
Refer to: TIMING BELT
CAUTION: Do not use the special tools to lock the camshafts. Failure to follow this instruction may result in damage to the engine or the special tools.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): 303-1126
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 3 bolts.
- Remove the front camshaft pulley.
Install the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Special Tool(s): 303-1124
Using the special tool remove the bolt.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Remove the camshaft pulley hub.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure the special tool is correctly seated behind the camshaft seal. Failure to follow this instruction may result in damage to the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

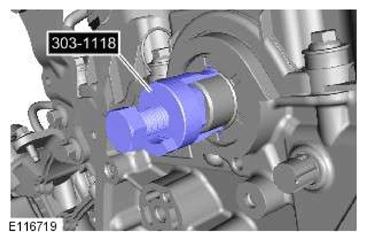

Install the special tool.

Special Tool(s): 303-1118
CAUTION: Discard the seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

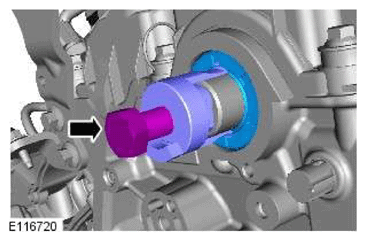

Using the special tool remove the camshaft front seal.
