Engine Oil Vacuum Draining And Filling (G2152249): Filling

WARNING: This page is about a different variant/trim than selected.

Install the oil filter element.
Refer to: OIL FILTER ELEMENT
Install the cover.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

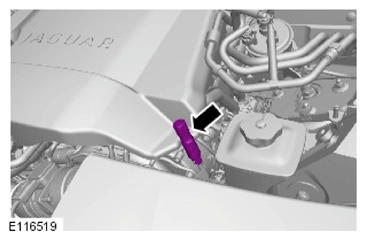

Fill the engine with oil.
Refer to: SPECIFICATIONS
CAUTION: Make sure that the vehicle has been left for 10 minutes from filling with oil and that the engine oil level is reading at least minimum. Follow Steps 7-15, before starting the engine.

Clean any residual engine oil from the oil filler cap area.
CAUTION: Correct installation of the oil filler cap can be obtained by tightening the cap until an audible click is heard.

Install the oil filler cap.
- Start the engine and allow to run for 10 minutes, stop the engine.
- Check for leaks.
- Allow 10 minutes for the engine oil level to stabilize.
CAUTION:
- Make sure that the selector lever and the gearshift mechanism are in the park (P) position.
- Make sure that the hood is open.
- Set the ignition to the ON position.
- Press the selection switch to access the instrument cluster menu. Select Vehicle Information.
- Select Oil Level.
- Press the speed control cancel button twice within 2 seconds. This will display the oil level.
- If necessary, top up with engine oil.
- Set the ignition to the OFF position.
Install the engine cover.
Refer to: ENGINE COVER - TDV6 3.0L DIESEL
