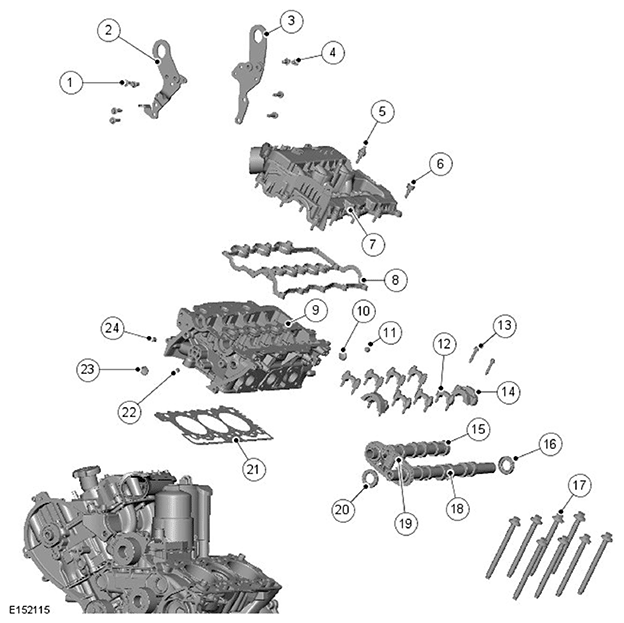

Cylinder Head Components
| ITEM | DESCRIPTION |
|---|---|
| 1 | Bolt (quantity 4) |
| 2 | Front lifting eye |
| 3 | Rear lifting eye |
| 4 | Bolt (quantity 4) |
| 5 | Camshaft cover stud (quantity 6) |
| 6 | Camshaft cover stud (quantity 7) |
| 7 | Intake manifold camshaft cover |
| 8 | Gasket |
| 9 | Cylinder head |
| 10 | Plug - Coolant |
| 11 | Plug - Oil port |
| 12 | Camshaft bearing cap (quantity 7) |
| 13 | Bolts (quantity 18) |
| 14 | Camshaft bearing cap and seal housing (quantity 2) |
| 15 | Intake camshaft |
| 16 | Seal |
| 17 | Cylinder head bolts (quantity 8) |
| 18 | Exhaust camshaft |
| 19 | Timing chain |
| 20 | Seal |
| 21 | Cylinder head gasket |
| 22 | Plug - Oil port |
| 23 | Plug - Coolant |
| 24 | Plug - Oil port |

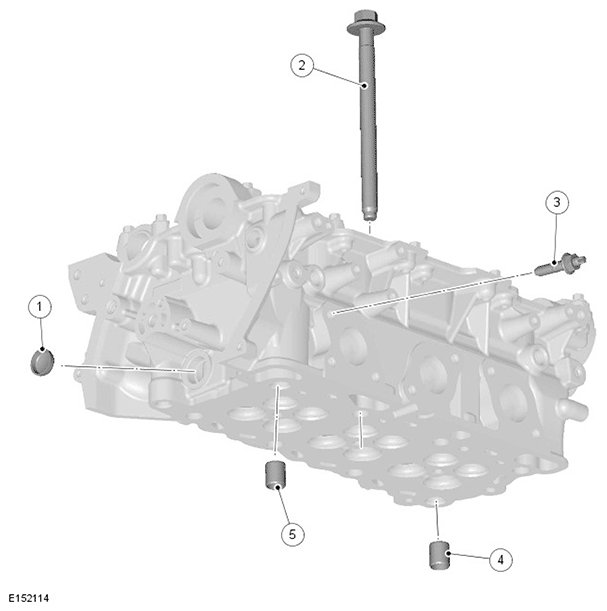

Cylinder Heads
| ITEM | DESCRIPTION |
|---|---|
| 1 | Plug - Coolant (quantity 2) |
| 2 | Cylinder head bolt (quantity 8) |
| 3 | Stud (quantity 6) |
| 4 | Dowel |
| 5 | Dowel |
The cylinder heads are unique to each cylinder bank.
To reduce distortion and secure each cylinder head to the cylinder block, 8 cylinder head bolts are used in each cylinder head. The cylinder head bolts are located beneath the camshafts, 4 under the intake camshaft and 4 under the exhaust camshaft. Each cylinder head has 2 hollow dowels to align the cylinder head with the cylinder block.
The cylinder head gasket is available in 5 different thicknesses to be used dependent on the maximum piston protrusion. Gasket thickness is identified by serrations cut into the front end of the gasket.
For additional information, Refer to: SPECIFICATIONS
The cylinder heads include 2 exhaust ports and 2 intake ports for each cylinder.
Each of the 2 intake ports has a specific design. They include 1 helical shaped port that functions as a swirl port, and a lateral port which functions as a charge port. This design causes turbulence in the cylinder which increases fuel efficiency.
The camshafts are a hollow pipe construction, with pressed on lobes. Each camshaft is located with camshaft caps, 5 for the exhaust camshafts and 4 for the intake camshafts. Markings on each camshaft cap identify their positions.
Both exhaust camshafts are used to provide drive for other essential components.
The bank 1 exhaust camshaft provides a direct drive for the brake vacuum pump. A belt arrangement on the rear of bank 2 exhaust camshaft provides drive for the High Pressure (HP) fuel pump.
For additional information, refer to: FUEL CHARGING AND CONTROLS
The exhaust camshaft gear of the bank 2 cylinder head incorporates a reluctor ring used by the Camshaft Position sensor (CMP) to determine camshaft position.
For additional information, refer to: ELECTRONIC ENGINE CONTROLS
