Cam Follower With Hydraulic Valve Tappets
WARNING: This page is about a different variant/trim than selected.

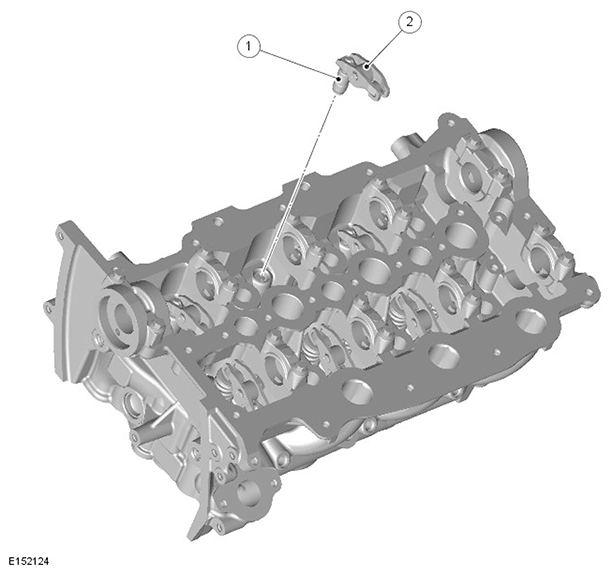

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hydraulic valve tappets (quantity 24, 12 per cylinder head) |
| 2 | Cam follower - Roller finger (quantity 24, 12 per cylinder head) |
Valve diameters are 31 mm (1.220 in) for the exhaust valve and 35 mm (1.378 in) for the intake valve. The valves are supported in sintered metal valve seats and valve guides. All valves use a single valve spring with valve spring collets, valve spring retainers and integrated valve seats and seals.
For additional information, Refer to: SPECIFICATIONS
