Valves (G1851894): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: LEFT CYLINDER HEAD

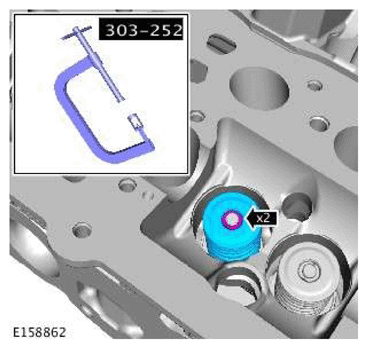

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Make sure that the area around the component is clean and free of foreign material.
- Make sure the working surfaces are thoroughly clean to avoid contamination of the sensitive components.
- Make sure that the valve grinding paste is kept away from the valve stem.

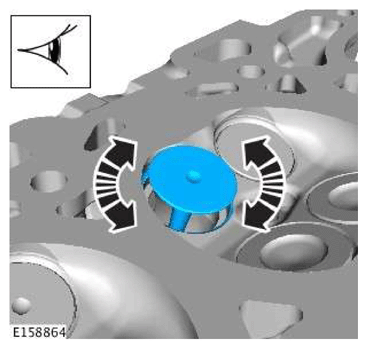

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Place a small amount of fine valve grinding paste evenly around the contact face of the valve.
- Place the valve in position and, using a suitable valve grinding tool, rotate the valve back and forth a few degrees on its seat, using light pressure.
- Raise the valve frequently during lapping and turn it into a new position after a few laps or rotations.
- Lap only until a continuous but narrow lapping mark is visible on both the valve seat and valve face.
- Thoroughly clean all surfaces to remove traces of valve grinding paste from the cylinder head, valve seat and valve face.
- Repeat steps 4 to 7 for the remaining valves.
