Timing Drive Components (G1851002): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Check all timing components for wear and install new components if required.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some illustrations may show the engine removed for clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the left valve cover.
Refer to: LEFT VALVE COVER
Remove the right valve cover.
Refer to: RIGHT VALVE COVER
Remove the timing covers.
Refer to: TIMING COVER
Remove the lower timing cover.
Refer to: LOWER TIMING COVER
CAUTION: An M16 washer must be used to prevent damage to the crankshaft on installation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

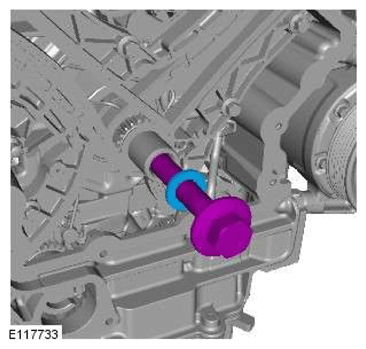

Install the crankshaft pulley bolt.

Torque : 20 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

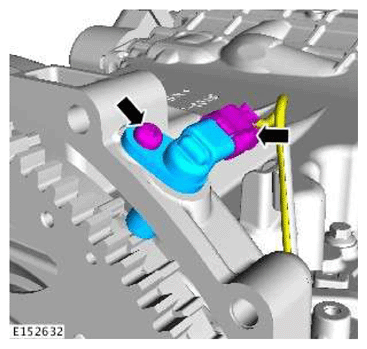

Remove the Crankshaft Position Sensor (CKP).
CAUTION:
- Only rotate the crankshaft clockwise.
- Make sure that the special tool is correctly located.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

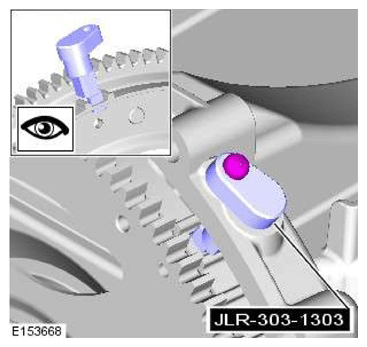

Install the special tool.

Special Tool(s): JLR-303-1303
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

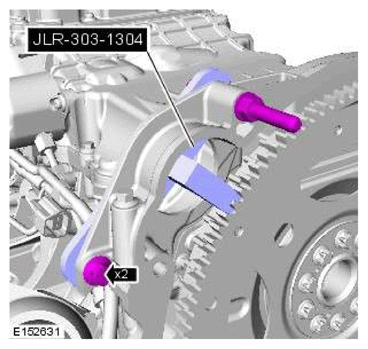

Install the special tool.

Special Tool(s): JLR-303-1304
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the crankshaft pulley bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

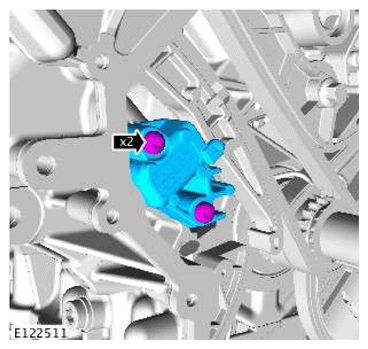

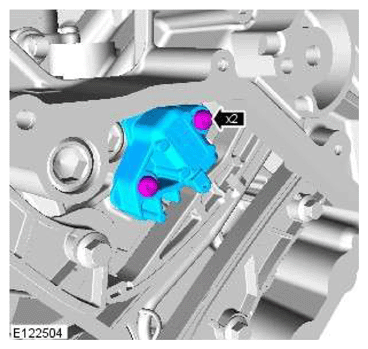

Remove the timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

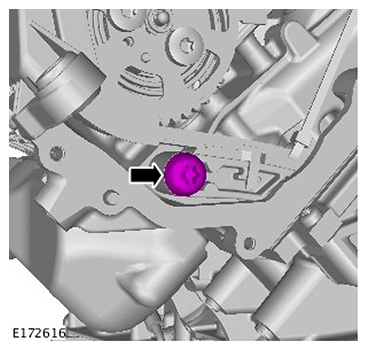

Remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

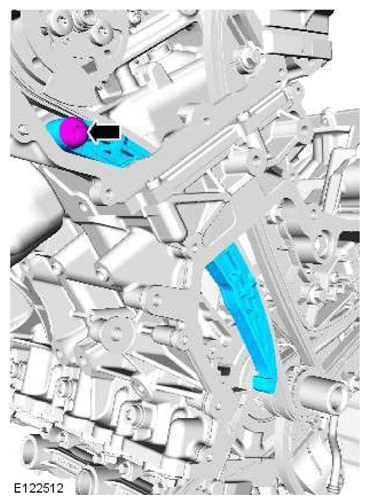

Remove the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

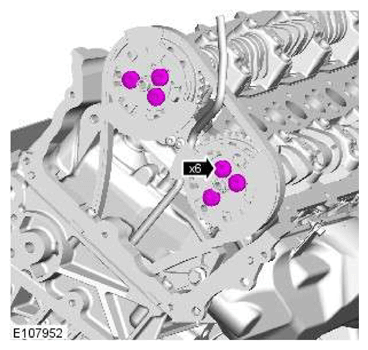

Remove the variable valve timing (VVT) unit bolts.
CAUTION: If the variable valve timing (VVT) units are knocked or dropped then new VVT(s) must be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

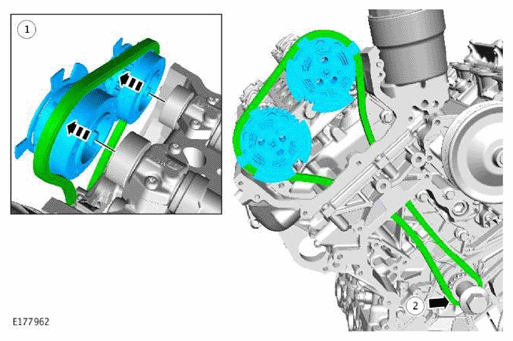

Remove the timing chain and VVT units.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the timing chain tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

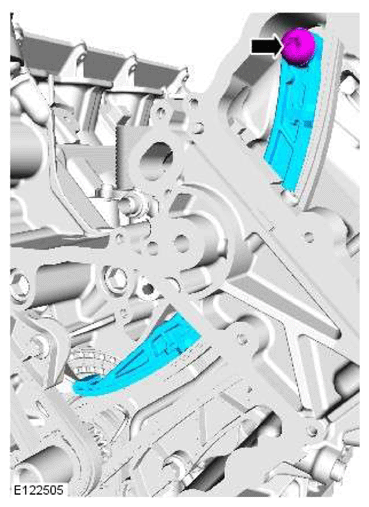

Remove the timing chain guide.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

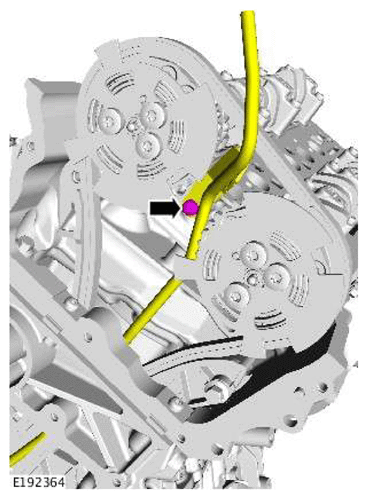

Release the oil drain tube.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

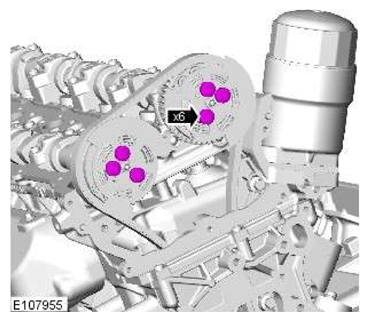

Remove the variable valve timing (VVT) unit bolts.
CAUTION: If the VVT is knocked or dropped then new VVT(s) must be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

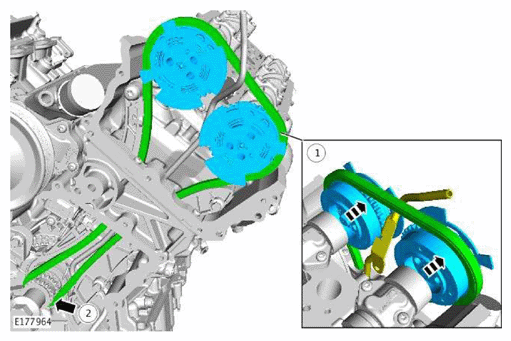

Remove the timing chain with the VVT units.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

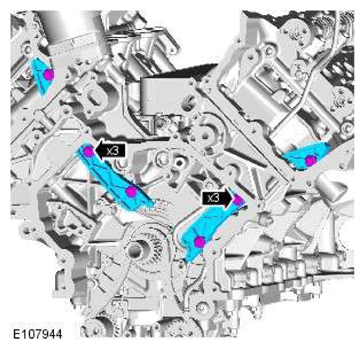

Remove the timing chain fixed guides.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

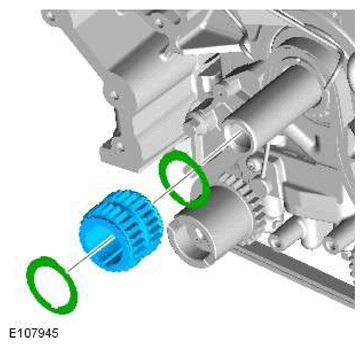

Remove and discard the friction washer.
