Timing Drive Components (G1851002): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new friction washer.

Renew Part: Crankshaft pulley friction washer Quantity: 2  .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the timing chain fixed guides.

Torque  : 12 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

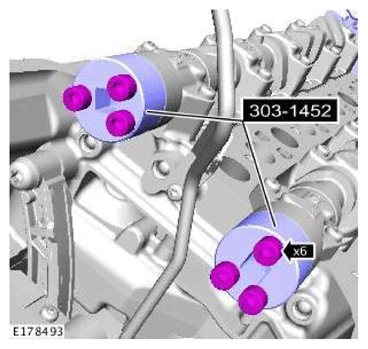

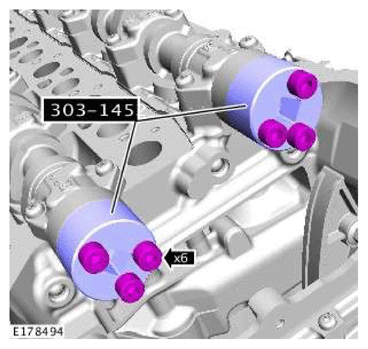

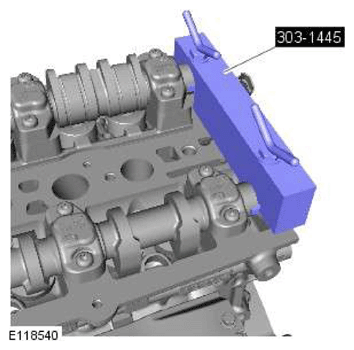

Install the special tool to each Camshaft.

Special Tool(s): 303-1452

Torque  : 10 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

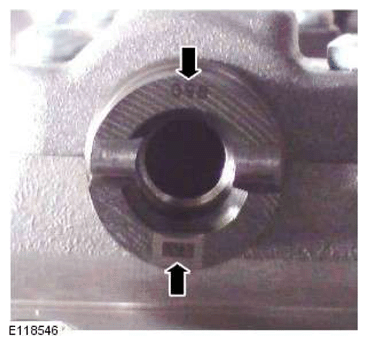

Carefully rotate the camshafts if the position is not as shown.

Using a suitable tool, carefully rock the camshaft clockwise then counter clockwise. Turn the special tool locking nuts until there is no movement left in camshafts. Repeat this step for both camshafts.

Special Tool(s): 303-1452

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool from each Camshaft.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the timing chain with the VVT units.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the variable valve timing (VVT) unit bolts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

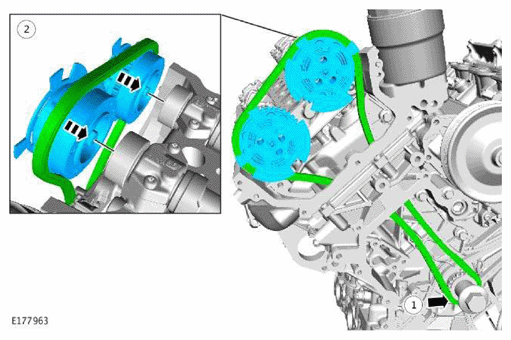

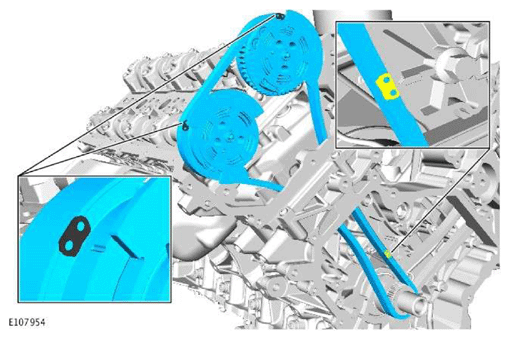

Make sure that all the timing chain alignment marks are in the positions shown.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

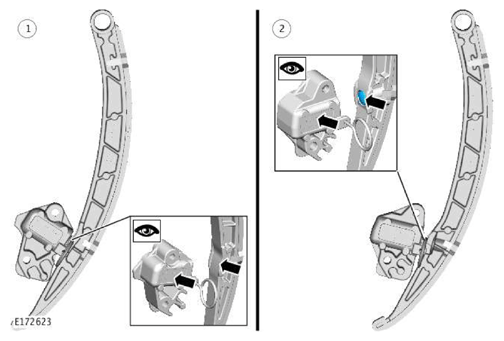

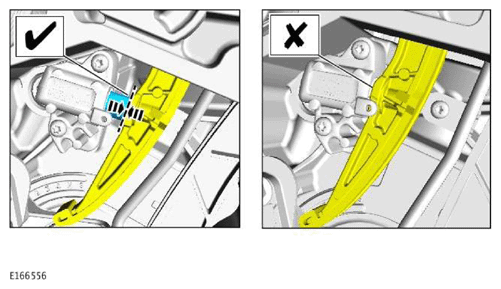

Using the illustration, identify which timing chain tensioner and guide is currently installed to the vehicle. Make sure the vehicle is assembled using components shown in section (2) of the illustration only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the timing chain guide.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the bolt.

Torque  : 25 Nm

Before installing the timing chain tensioners, use the illustration shown to identify which timing chain tensioner is installed to the vehicle. Make sure the vehicle is assembled using components shown in section (2) of the illustration only. If a new timing chain tensioner is installed, do not deploy the tensioner pin and proceed to the next step. If the tensioner to be installed has previously been deployed, make sure the attached animation is followed to make sure the tensioner is set correctly, failure to do this may result in damage to the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

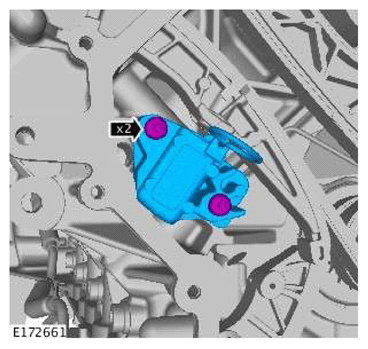

Install the timing chain tensioner.

Torque  : 12 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply and maintain tension on the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

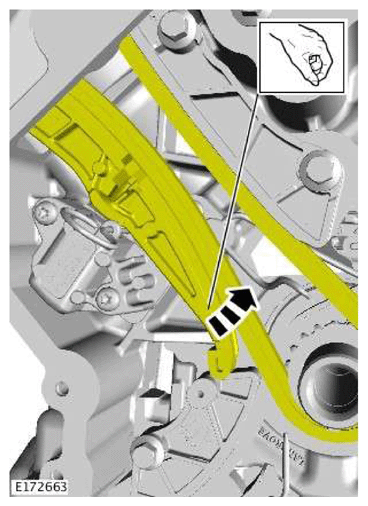

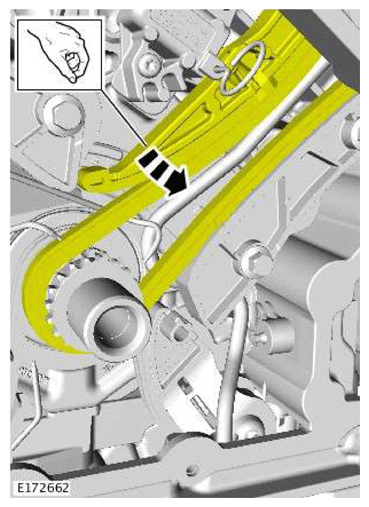

Remove the timing chain tensioner retaining pin and release the timing chain guide.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

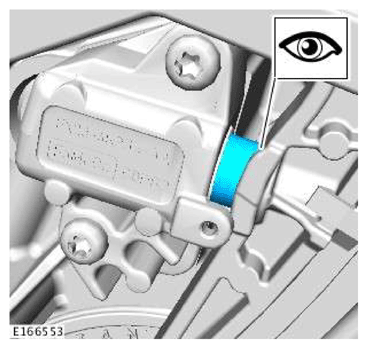

The timing chain tensioner piston should apply tension to the timing chain guide.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The timing chain tensioner must maintain tension on the chain guide. If the piston can be pushed back so the chain guide contacts with the body of the tensioner, the tensioner is not correct. Repeat steps  13- 18.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool to each Camshaft.

Special Tool(s): 303-1452

Torque  : 10 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Carefully rotate the camshafts if the position is not as shown.

Using a suitable tool, carefully rock the camshaft clockwise then counter clockwise. Turn the special tool locking nuts until there is no movement left in camshafts. Repeat this step for both camshafts.

Special Tool(s): 303-1452

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool from each Camshaft.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the timing chain with the VVT units.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the variable valve timing (VVT) unit bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

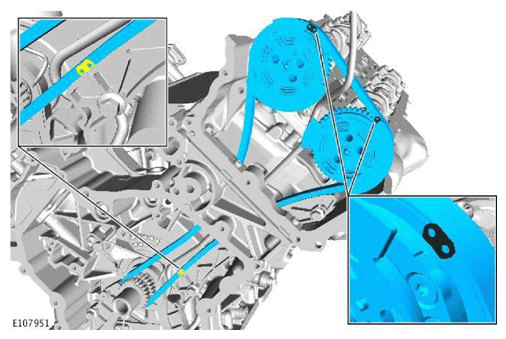

Make sure that all the timing chain alignment marks are in the positions shown.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

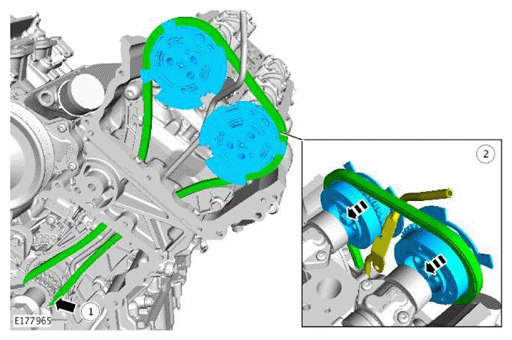

Using the illustration, identify which timing chain tensioner and guide is currently installed to the vehicle. Make sure the vehicle is assembled using components shown in section (2) of the illustration only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

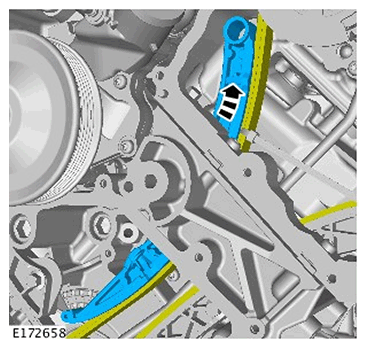

Install the timing chain guide.

Torque  : 25 Nm

Before installing the timing chain tensioners, use the illustration shown to identify which timing chain tensioner is installed to the vehicle. Make sure the vehicle is assembled using components shown in section (2) of the illustration only. If a new timing chain tensioner is installed, do not deploy the tensioner pin and proceed to the next step. If the tensioner to be installed has previously been deployed, make sure the attached animation is followed to make sure the tensioner is set correctly, failure to do this may result in damage to the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

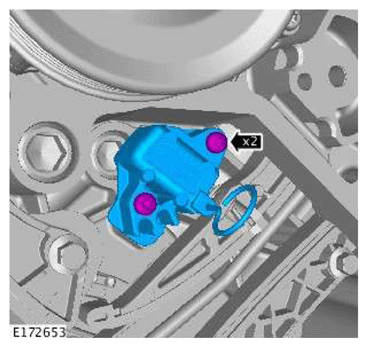

Install the timing chain tensioner.

Torque  : 12 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Apply and maintain tension on the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

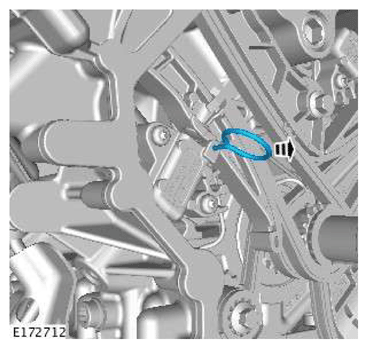

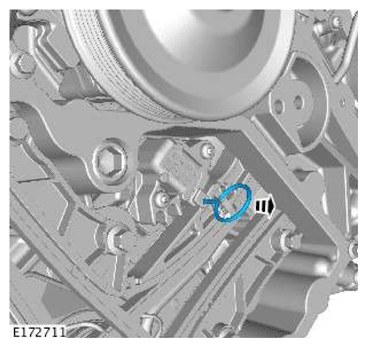

Remove the timing chain tensioner retaining pin and release the timing chain guide.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The piston should apply tension to the timing chain guide.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The timing chain tensioner must maintain tension on the chain guide. If the piston can be pushed back so the chain guide contacts with the body of the tensioner, the tensioner is not correct. Repeat steps  28- 33.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

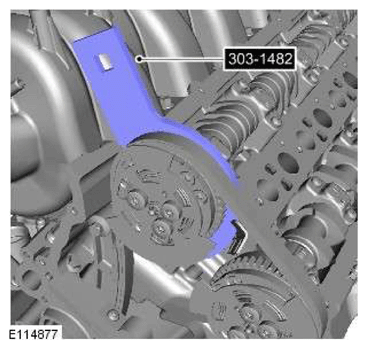

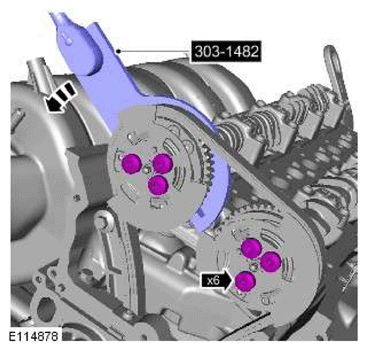

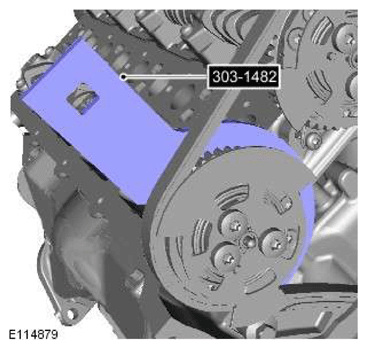

Install the special tool.

Special Tool(s): 303-1482

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

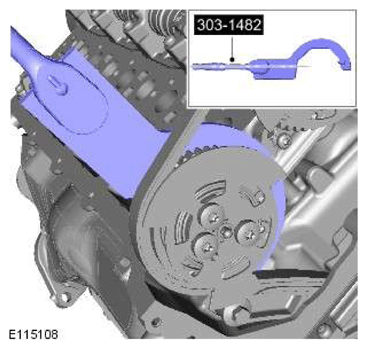

Install the torque wrench to the special tool.

Torque  : 35 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

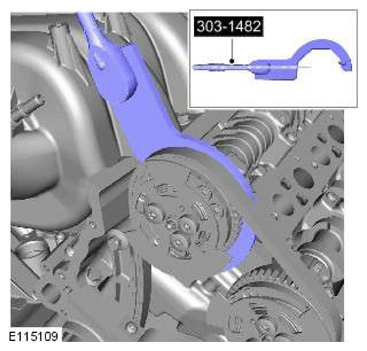

Special Tool(s): 303-1482

Torque  : 32 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the oil drain tube.

Torque  : 10 Nm

Special Tool(s): 303-1445

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

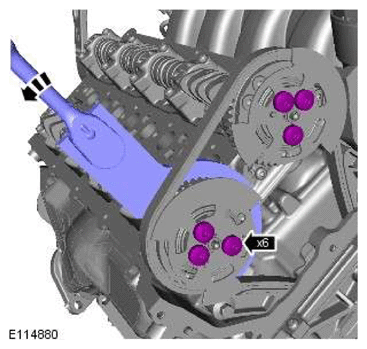

Install the special tool.

Special Tool(s): 303-1482

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the torque wrench to the special tool.

Torque  : 35 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts.

Torque  : 32 Nm

Special Tool(s): 303-1445

Special Tool(s): JLR-303-1303

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

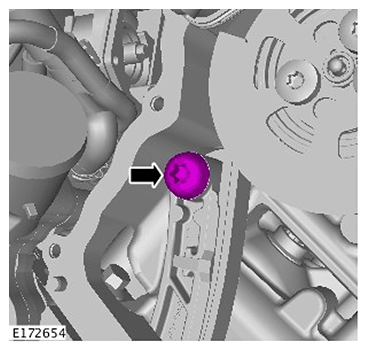

Install the crankshaft pulley bolt.

Torque  : 20 Nm

Special Tool(s): JLR-303-1304

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Make sure that the special tool is correctly located.

Special Tool(s): JLR-303-1303

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

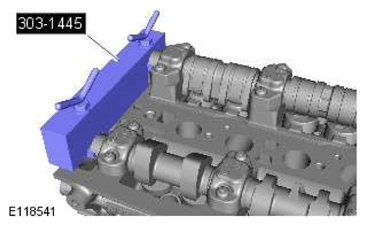

Install the special tool. If the special tool cannot be installed, remove both timing chains and components and repeat the process from step 3 of the installation until the special tool 303-1445 is installed correctly.

Special Tool(s): 303-1445

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool. If the special tool cannot be installed, remove both timing chains and components and repeat the process from step 3 of the installation until the special tool 303-1445 is installed correctly.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): JLR-303-1303

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the CKP  .

Torque  : 10 Nm

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool.

Special Tool(s): JLR-303-1304

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the crankshaft pulley bolt.

Special Tool(s): JLR-303-1304
