Timing Cover (G1851685): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that approved cleaning fluid (Loctite 7063) is used to clean the mating faces.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

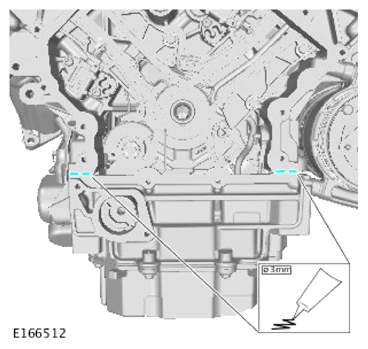

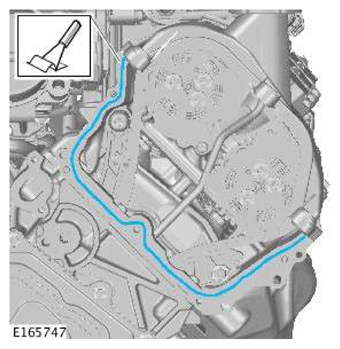

Apply RTV sealant (Loctite 5901G or Loctite 5900) to the areas shown.
CAUTION: Make sure that the mating faces are clean and free of foreign material.

NOTE: Install a new lower timing cover.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

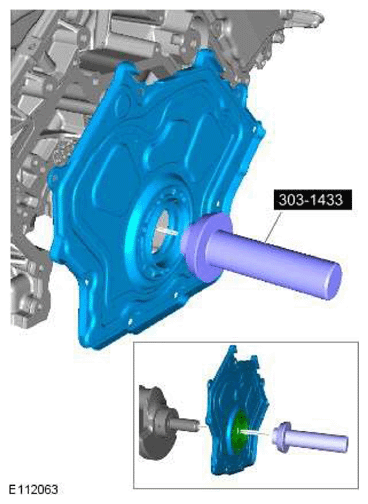

Install the bolts, but do not tighten fully at this stage.

Special Tool(s): 303-1433

Renew Part: Lower timing cover Quantity: 1 .
NOTE: Special tools shown removed for clarity.

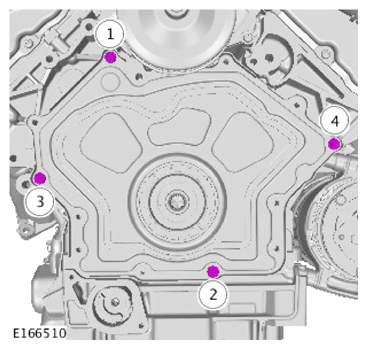

Fig 1: Lower Timing Cover Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

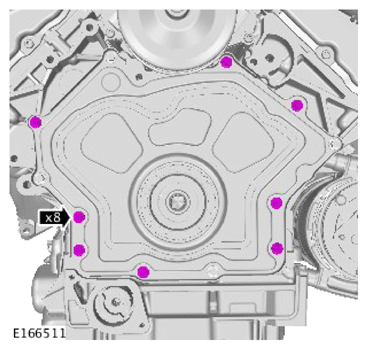

Install the remaining bolts.

Torque : 12 Nm
Remove the special tools.

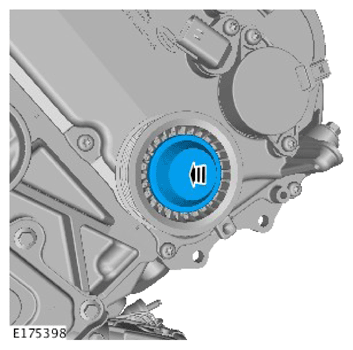

NOTE: Lubricate the seal with clean engine oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the brake vacuum pump.

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Connect the brake vacuum pipe.
Install the crankshaft pulley.
Refer to: CRANKSHAFT PULLEY
CAUTION:
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that approved cleaning fluid (Loctite 7063) is used to clean the mating faces.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

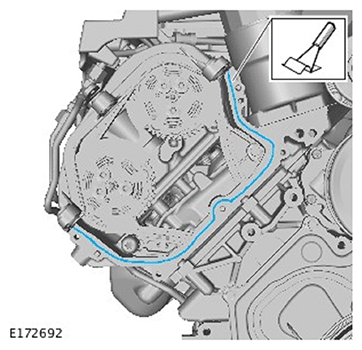

Remove the old sealant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

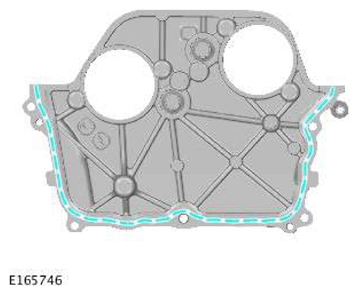

- Apply RTV sealant (Loctite 5901G or Loctite 5900) to the areas shown, and tighten the bolts within 7 minutes.
CAUTION: Only tighten the bolts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the bolts.

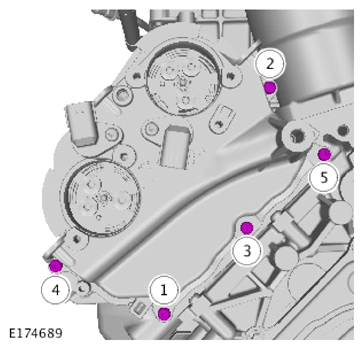

Fig 2: Variable Camshaft Timing Cover Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the Variable Camshaft Timing (VCT) actuators.

Torque : 12 Nm
Install the valve cover.
Refer to: RIGHT VALVE COVER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the idler pulley.

Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the idler pulley cover.
CAUTION:
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that approved cleaning fluid (Loctite 7063) is used to clean the mating faces.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the old sealant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Apply RTV sealant (Loctite 5901G or Loctite 5900) to the areas shown, and tighten the bolts within 7 minutes.
CAUTION: Only tighten the bolts finger tight at this stage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the bolts.

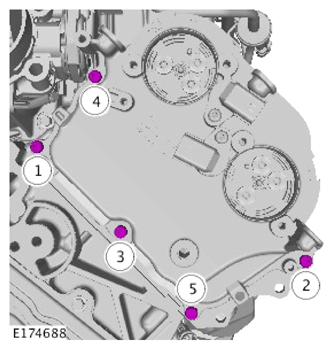

Fig 3: Variable Camshaft Timing Cover Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the Variable Camshaft Timing (VCT) actuators.

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the idler pulley.

Torque : 48 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the idler pulley cover.
Install the valve cover.
Refer to: LEFT VALVE COVER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the accessory drive belt tensioner.

Torque : 48 Nm
Install the electric thermostat.
Refer to: ELECTRIC THERMOSTAT
Install the accessory drive belt.
Refer to: ACCESSORY DRIVE BELT
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Fill the engine with oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
