Right Cylinder Head (G2128211): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Always follow the fuel system health and safety precautions, when carrying out any repairs to the fuel system.
Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS
Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Drain the cooling system.
Refer to:COOLING SYSTEM DRAINING AND VACUUM FILLING (G2131524)
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the supercharger.
Refer to: SUPERCHARGER
Remove the right exhaust manifold.
Refer to: RIGHT EXHAUST MANIFOLD
Remove the right camshaft.
Refer to: RIGHT CAMSHAFT
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the knock sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

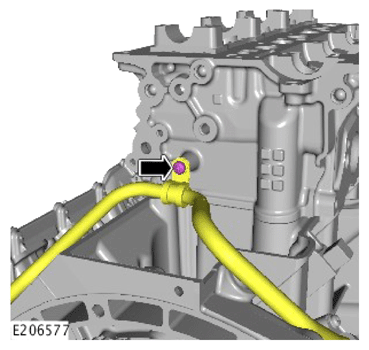

Release the fuel pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the engine wiring harness.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Disconnect the 2 heater coolant hoses.
- Disconnect and release the coolant temperature sensor wiring harness.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine coolant manifold. Discard the seals.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

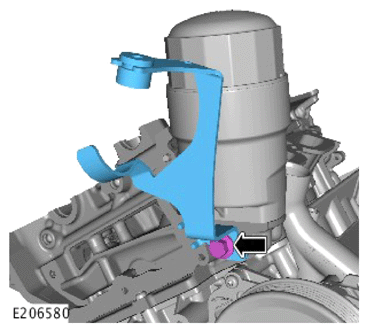

Remove the air intake pipe support bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

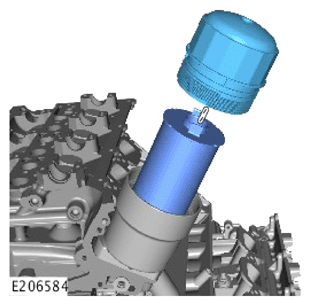

Remove and discard the oil filter.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

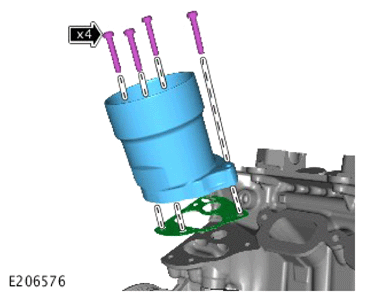

Remove the oil filter housing. Discard the gasket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

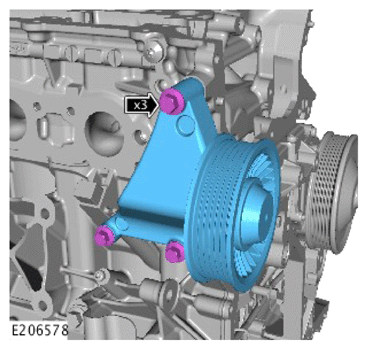

Remove the idler pulley.
CAUTION:
- If a new cylinder head has been installed then new tappets must be installed.
- If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 12 tappets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

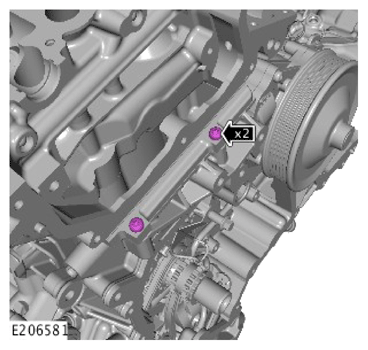

Remove and discard the 2 cylinder head bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the cylinder head bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use the special tool to remove the cylinder head bolts.

Install the Special Tool(s): JLR-303-1653
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

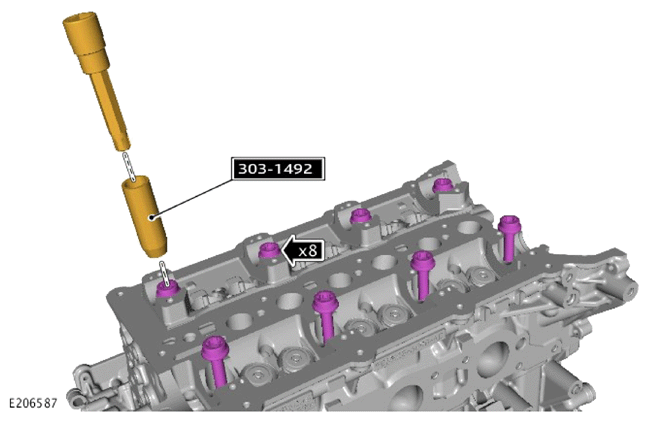

Using the special tool remove and discard the cylinder head bolts.

Special Tool(s): 303-1492
Remove the special tools.
Remove the Special Tool(s): JLR-303-1653 , 303-1492
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the cylinder head. Discard the gasket.
