Right Cylinder Head (G2128211): Installation

WARNING: This page is about a different variant/trim than selected.
  1. Check the cylinder head for distortion.

    Refer to: CYLINDER HEAD DISTORTION

  2. WARNING: Make sure care is taken when handling the cylinder head gasket.
    CAUTION:
    • The cylinder head gasket must be installed over the cylinder block dowels.
    • Make sure that the mating faces are clean and free of foreign material.

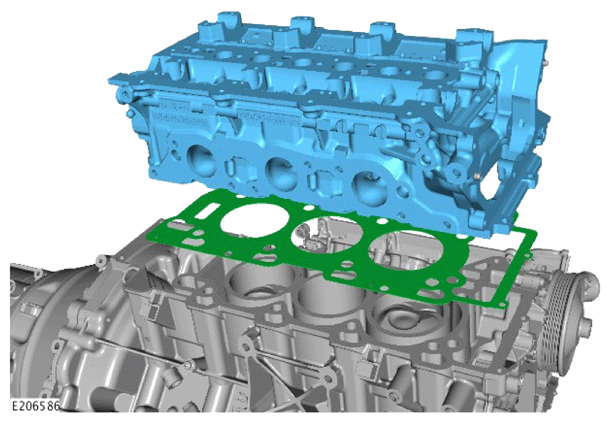

    G14283932Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the new cylinder head gasket.

      Renew Part: Cylinder head gasket Quantity: 1  .

    • Install the cylinder head.
  3. CAUTION:
    • Make sure that new cylinder head bolts are installed.
    • Bolts must be Tightened in the sequence illustrated.

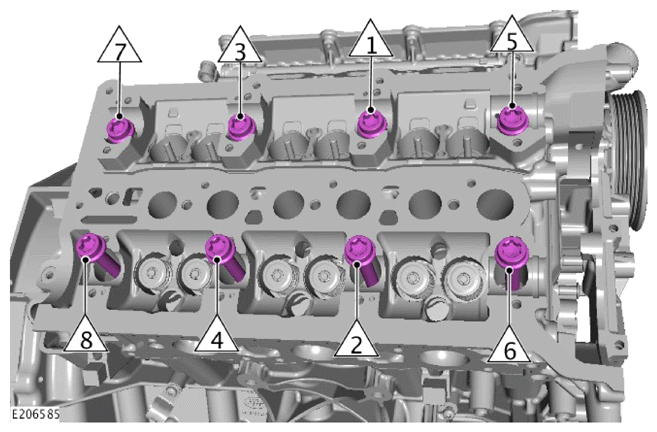

    Fig 1: RH Cylinder Head Bolts Tightening Sequence
    G14283934Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Tighten the bolts 1 to 8 in the sequence shown.

      Install the Special Tool(s): JLR-303-1653  , 303-1492

      Renew Part: Cylinder head bolts Quantity: 8  .

      Torque  : 20 Nm

    2. Tighten the bolts 1 to 8 in the sequence shown.

      Torque  : 35 Nm

    3. Loosen bolt 1 then tighten.

      Torque  : 35 Nm

    4. Loosen bolts 2 to 8 then tighten.

      Torque  : 35 Nm

    5. Tighten bolts 1 to 8 in the sequence shown.

      Torque  : 90°

    6. Tighten bolts 1 to 8 in the sequence shown.

      Torque  : 120°

  4. Remove the special tools.

    Remove the Special Tool(s): JLR-303-1653  , 303-1492

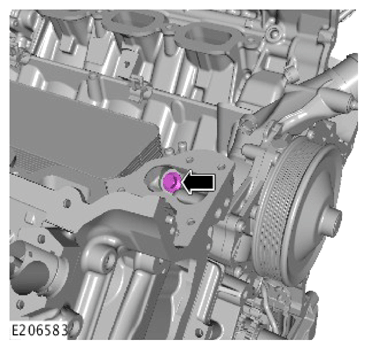

  5. G14283929Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the new cylinder head bolt.

    Renew Part: Cylinder head bolts Quantity: 1  .

    Torque  : 25 Nm

  6. CAUTION: Bolts must be Tightened in the sequence illustrated.

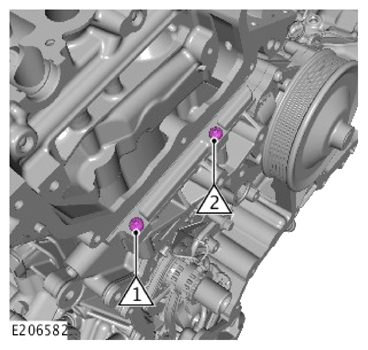

    G14283936Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the new cylinder head bolts in the sequence shown.

    Renew Part: Cylinder head bolts Quantity: 2  .

    Torque  : 12 Nm

  7. CAUTION:
    • If a new cylinder head has been installed then new tappets must be installed.
    • If the cylinder head is being removed without a new component being installed, the tappets must be installed in their original positions.

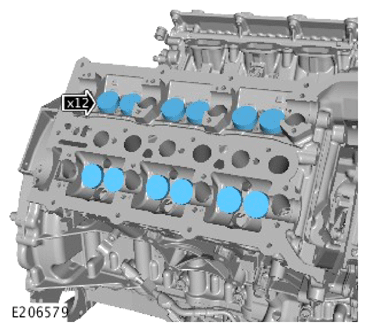

    G14283927Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the tappets. Lubricate with clean engine oil.

  8. Install the idler pulley.

    Torque  : 25 Nm

  9. Install the oil filter housing. Install a new gasket.

    Renew Part: Oil filter housing gasket Quantity: 1  .

    Torque  : 12 Nm

  10. Install a new oil filter.

    Renew Part: Oil filter Quantity: 1  .

  11. Install the air intake pipe support bracket.

    Torque  : 10 Nm

  12. Install the engine coolant manifold. Install new seals.

    Renew Part: Engine coolant outlet upper O-ring seal Quantity: 2  .

    Torque  : 10 Nm

    • Connect the 2 heater coolant hoses.
    • Connect and secure the coolant temperature sensor wiring harness.
  14. Secure the engine wiring harness.
  15. Install the knock sensor.

    Torque  : 20 Nm

  16. Install the right camshaft.

    Refer to: RIGHT CAMSHAFT

  17. Install the supercharger.

    Refer to: SUPERCHARGER

  18. Install the right exhaust manifold.

    Refer to: RIGHT EXHAUST MANIFOLD

  19. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  20. Fill the cooling system.

    Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING (G2131524)
