Oil Pan (G2131742): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
Remove the engine.
Refer to: ENGINE
Remove the lower timing cover.
Refer to: LOWER TIMING COVER
Remove the high pressure fuel pump 2.
Refer to: HIGH PRESSURE FUEL PUMP 2
Remove the high pressure fuel pump 1.
Refer to: HIGH PRESSURE FUEL PUMP 1
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the special tool remove the flexplate and discard the bolts.

Special Tool(s): JLR-303-1304
Remove the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

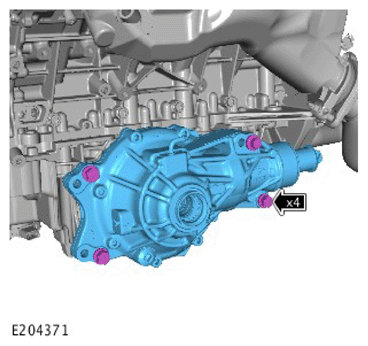

Remove the front differential assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

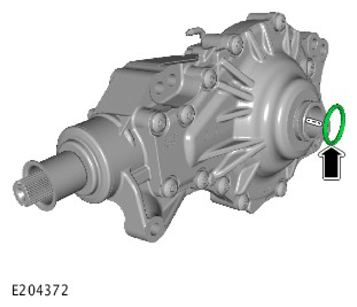

Remove and discard the front differential O-ring seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

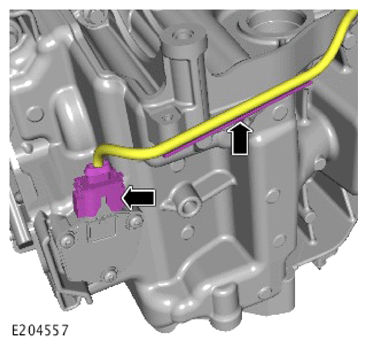

Disconnect the oil level electrical connector and release the clip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

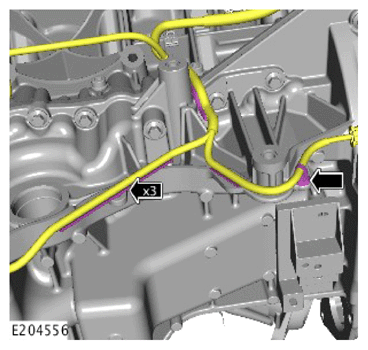

Remove the 4 clips securing the wiring harness to the oil pan.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 4 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

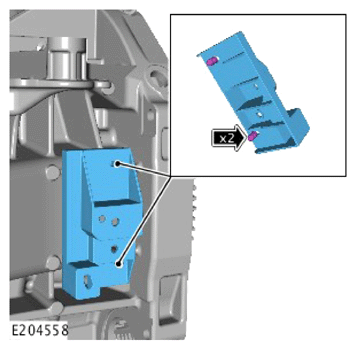

Remove the wiring harness cover.
NOTE: Note the orientation of the bolts prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

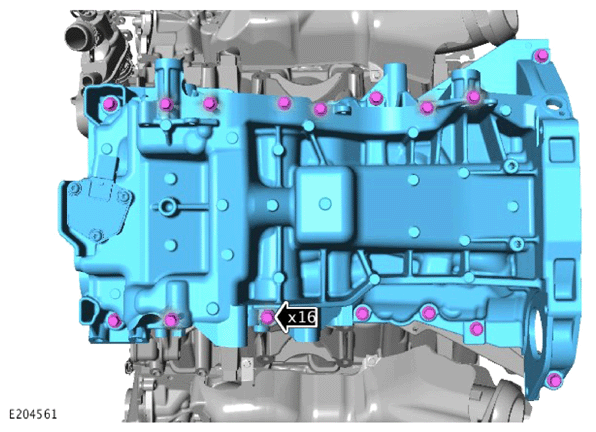

Remove the oil pan bolts.
NOTE: Make sure to use the aluminum lug provided on the oil pan to lever against.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

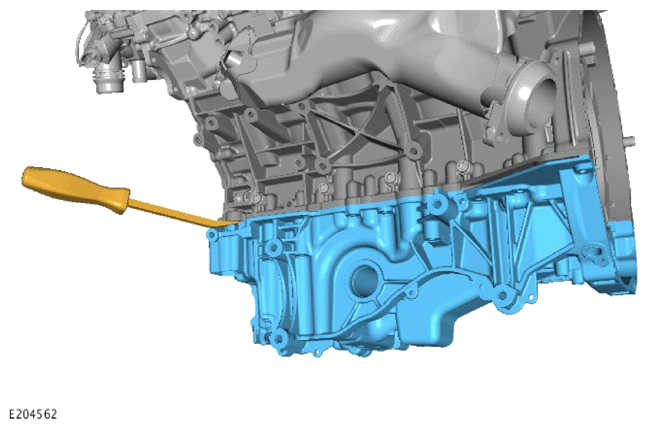

Carefully lever the oil pan away from the cylinder block using a suitable tool.
CAUTION: Be prepared to collect escaping oil.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the oil pan assembly.
- remove and discard the seal.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the oil level sensor and discard the O-ring seal.
