Oil Cooler (G2130672): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  3. Drain the cooling system.

    Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING

  4. Remove the supercharger.

    Refer to: SUPERCHARGER

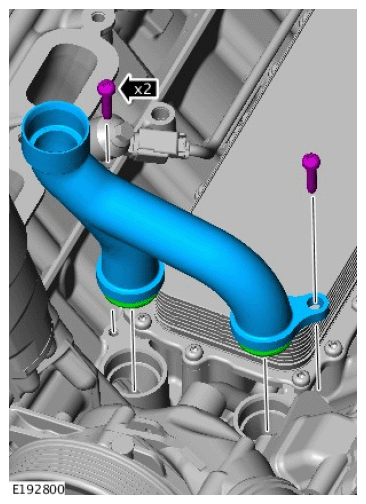

  5. G12004053Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the water outlet pipe.
    • Discard the O-ring seals.

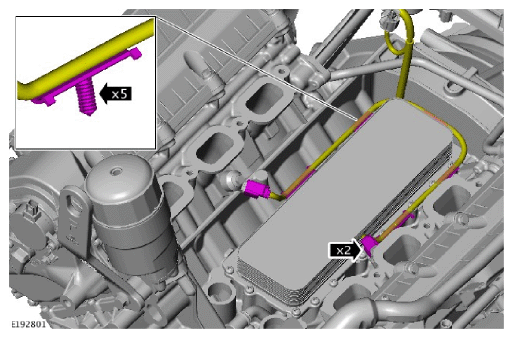

  6. G12004054Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 electrical connectors.
    • Release the wiring harness from the clips.
  7. CAUTION: Be prepared to collect escaping fluids.

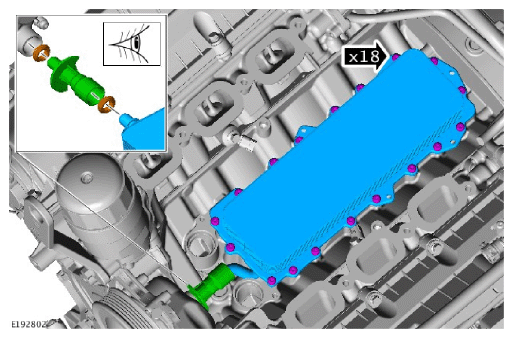

    G12004055Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the oil cooler bolts and discard the seals.

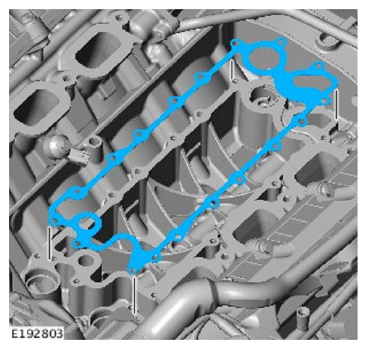

  8. G12004056Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the oil cooler gasket.
