Oil Cooler (G2130672): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Make sure the gasket is correctly located.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install a new oil cooler gasket.

Renew Part: Oil cooler gasket Quantity: 1 .
CAUTION: Tighten the bolts in the sequence shown.

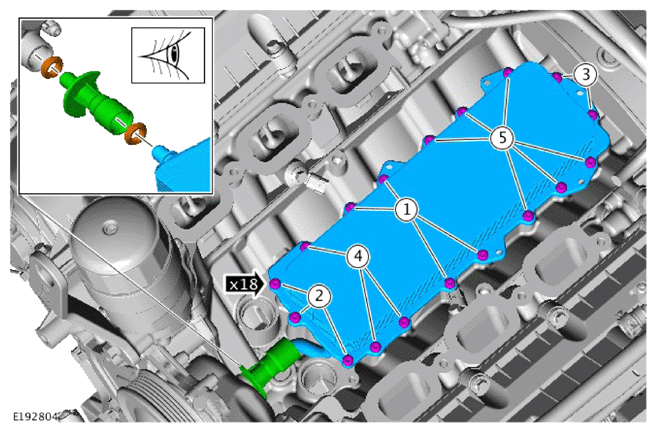

Fig 1: Oil Cooler Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the oil cooler. Renew the new O-ring seals.

Renew Part: Oil cooler to water pump O-ring seals Quantity: 2 .

Torque

Stage 1: 7 Nm

Stage 2: 12 Nm
- Secure the wiring harness clips.
- Connect the 2 electrical connectors.
Install the water outlet pipe. Renew the O-ring seals.
Renew Part: Water outlet tube to cylinder block seals Quantity: 2 .

Torque : 12 Nm
Install the supercharger.
Refer to: SUPERCHARGER
Fill the cooling system.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
Replace the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
