Left Valve Cover (G1557032): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the supercharger.
Refer to: SUPERCHARGER
Remove the fuel rail.
Refer to: LEFT FUEL RAIL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

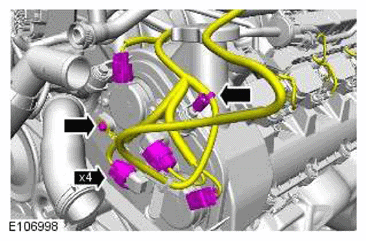

- Remove the bolt.
- Disconnect the electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

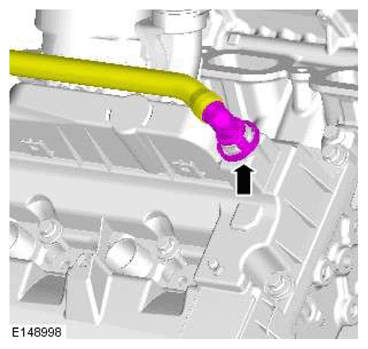

Remove the breather.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

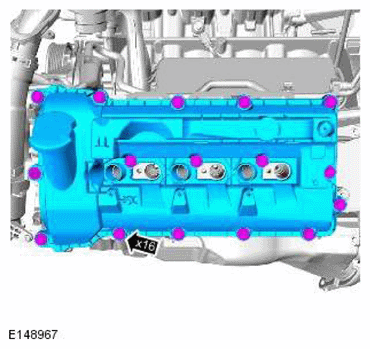

Remove the valve cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

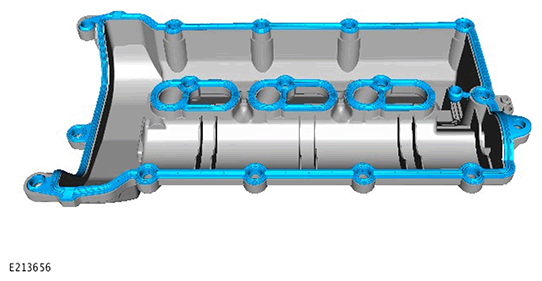

Remove and discard the valve cover seals.
