Left Engine Mount (G1914832): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the exhaust system.
Refer to: EXHAUST SYSTEM
Remove the front driveshaft.
Refer to: DRIVESHAFT

The following step(s) applies to:

Left-hand drive vehicles

CAUTION: Align the steering wheel straight ahead. Do not allow the steering wheel to turn once disconnected.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

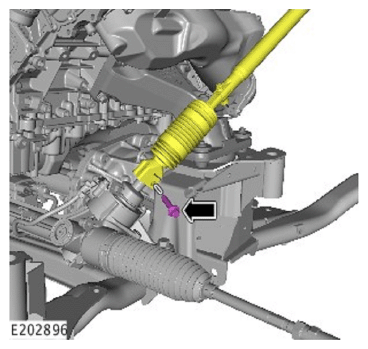

Remove the steering column lower shaft and discard the bolt.

The following step(s) applies to:

All vehicles

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

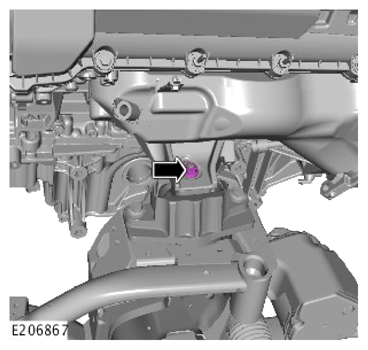

Remove the left engine mount upper retaining nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

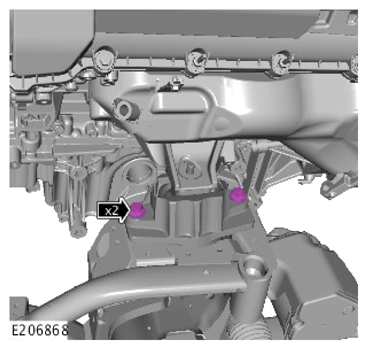

Remove the 2 engine mount to subframe bolts.
CAUTION: Use a wooden block to protect the oil pan when supporting the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable stand, raise the engine off the engine mount.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

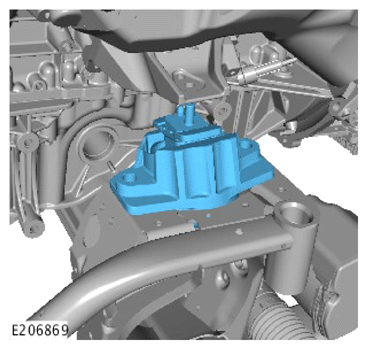

Remove the engine mount.
