Left Camshaft (G2105539): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:
- Prior to installing the camshafts, position the crankshaft 45 degrees ATDC cylinder 1A to prevent valve/piston collision.
- Make sure that the camshafts and camshaft bearing caps are installed in their original locations.
- Evenly and progressively install and tighten the camshaft bearing caps.
NOTE: Lubricate the camshafts and the camshaft bearing caps with EP90 oil (or 75/90 viscosity oil will suffice) prior to installation.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

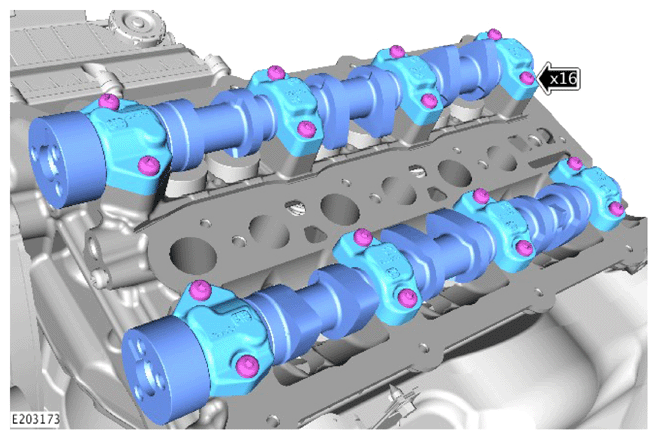

Install the camshafts and camshaft bearing caps.

Torque : 3 Nm

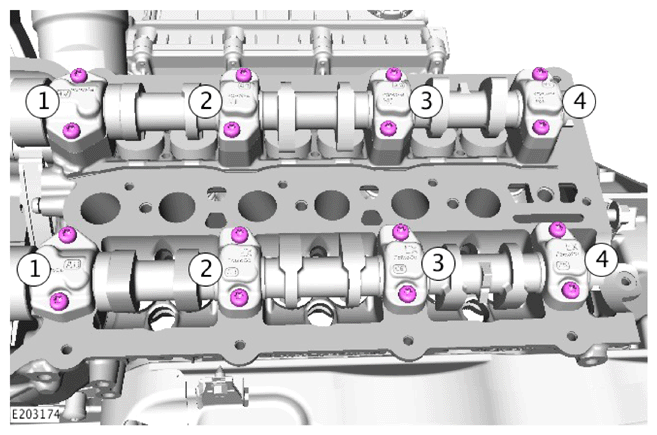

Fig 1: Camshaft Bearing Caps Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Tighten the bolts in the indicated sequence.

Torque : 12 Nm
Check and if necessary, adjust the valve clearances.
Refer to: VALVE CLEARANCE ADJUSTMENT
Install the valve cover.
Refer to: LEFT VALVE COVER
Install the timing chain and drive components.
Refer to: TIMING DRIVE COMPONENTS
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
