Fuel Pump Camshaft (G1851649): Installation

WARNING: This page is about a different variant/trim than selected.

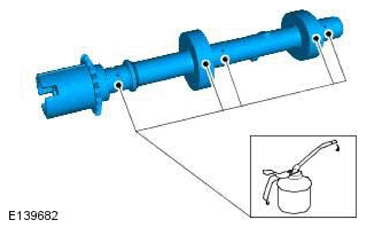

CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Take extra care not to damage the mating faces.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

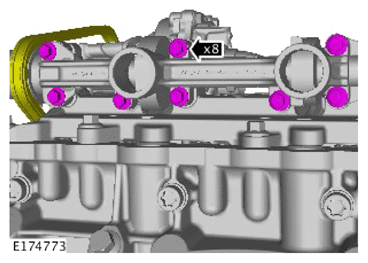

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

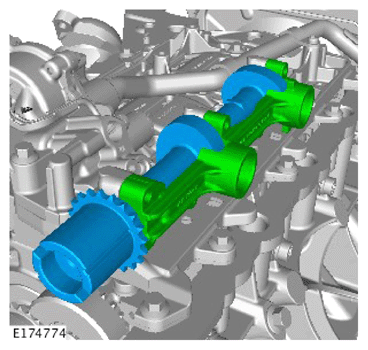

CAUTION: Using a suitable tool, lock the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 21 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

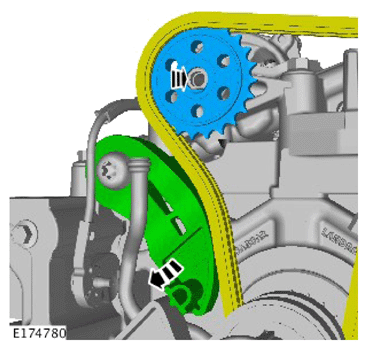

- Install the lower timing chain making sure the coloured chain links align correctly with the fuel rail high-pressure fuel pumps camshaft, balance weight and crankshaft sprocket markings.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 11 Nm
Refer to: OIL PAN
Connect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

CAUTION: Make sure that the mating faces are clean and free of foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Take extra care not to damage the mating faces.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Using a suitable tool, lock the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 21 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the lower timing chain making sure the coloured chain links align correctly with the fuel rail high-pressure fuel pumps camshaft, balance weight and crankshaft sprocket markings.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 11 Nm
Refer to: OIL PAN
Connect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
