FLEXPLATE (G1921202): Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  3. Remove the transmission.

    Refer to: TRANSMISSION - V6 S/C 3.0L PETROL

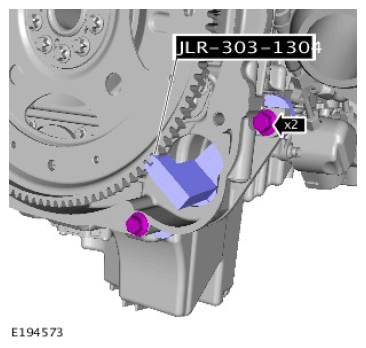

  4. G12004016Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tool lock the flexplate.

    Special Tool(s): JLR-303-1304

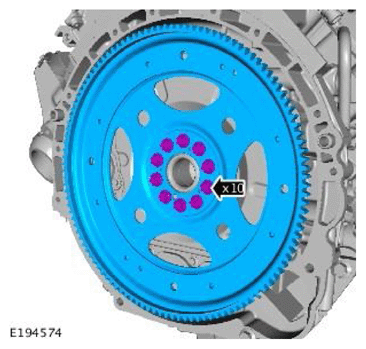

  5. G11756623Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the bolts.
    • Remove the flexplate.
