Electric Oil Pump (G1913835): Installation

WARNING: This page is about a different variant/trim than selected.

- Lubricate and install the new O-ring seals.
  Renew Part: Oil pump O-ring seal Quantity: 1 .
CAUTION: Take extra care not to damage the seal when installing the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

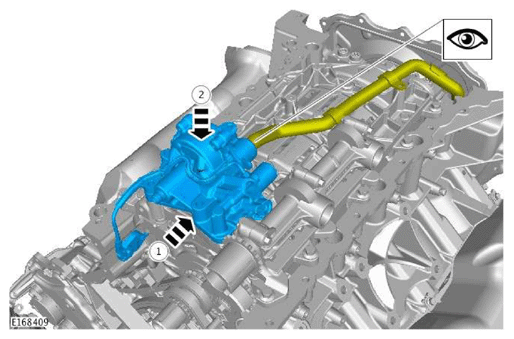

Install the oil pump as illustrated.
CAUTION:
- Take extra care when installing the component.
- Lubricate the oil pump connector bore with clean engine oil. Do not lubricate the O-ring seal.
Install the oil pump electrical connector.
Install the wiring harness bolt.
Torque : 12 Nm
Connect the electrical connector and secure the clip.
Install the oil pump bolts.
Torque : 25 Nm
Install oil outlet bolts.
Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Lubricate and install a new O-ring seal.
  Renew Part: Oil pick up pipe O-ring seal Quantity: 1 .

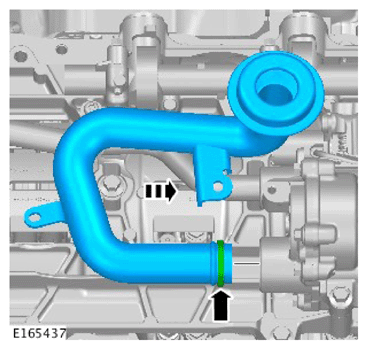

- Install the oil pick up pipe.
Install the 2 bolts securing the oil pick up pipe to the oil pump.
Torque : 12 Nm
CAUTION: Make sure that the oil pump tensioner is correctly located against the cylinder wall.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

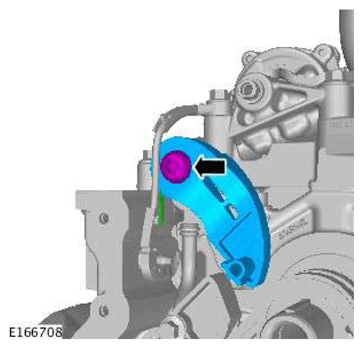

Install the oil pump chain tensioner.

Torque : 21 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

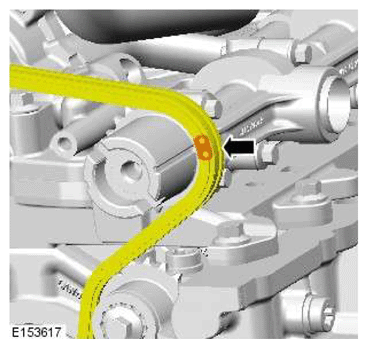

Make sure that the timing chain aligns with the fuel pump camshaft as illustrated.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

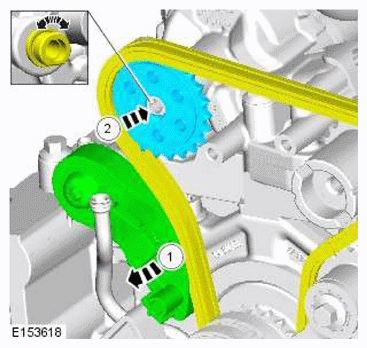

Using a suitable tool, compress the timing chain tensioner and install the oil pump sprocket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable tool, lock the oil pump sprocket.

Torque : 21 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

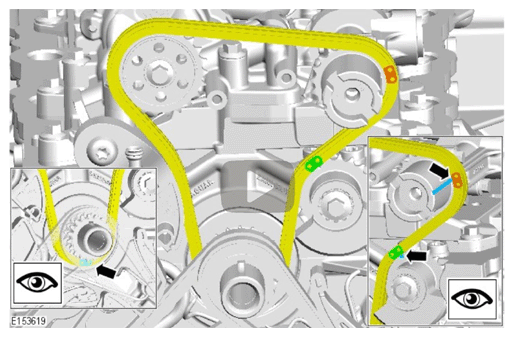

Install the lower timing chain making sure the coloured chain links align correctly with the fuel pump camshaft and crankshaft sprocket markings.
Install the oil pan.
Refer to: OIL PAN
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Fill the coolant system.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING (G2131524)
