Crankshaft Rear Seal (G1557015): Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:
- Use only a plastic scraper when removing the sealing material.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure that the Land Rover approved cleaning fluid (Loctite 7063) is used to clean the mating faces.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

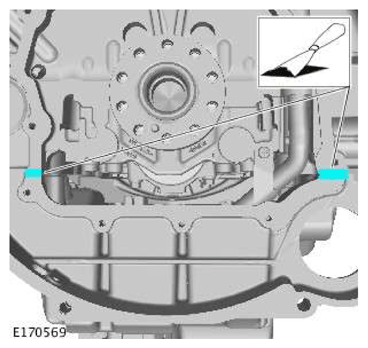

Using a suitable tool remove the sealing material.
CAUTION: Make sure that the Land Rover approved sealant, covers the mating faces of the cylinder block and the oil pan.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

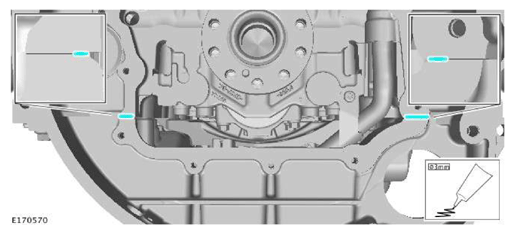

Apply RTV sealant (Loctite 5901G or Loctite 5900) in a 2-3 mm diameter to the areas shown, and install the engine rear oil seal plate within 7 minutes.

Refer to: ENGINE - V6 S/C 3.0L PETROL

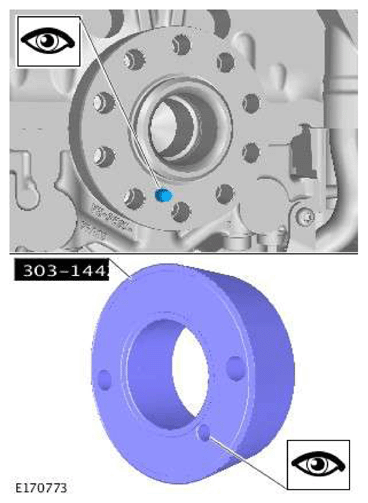

CAUTION: Make sure that the special tool is correctly located.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

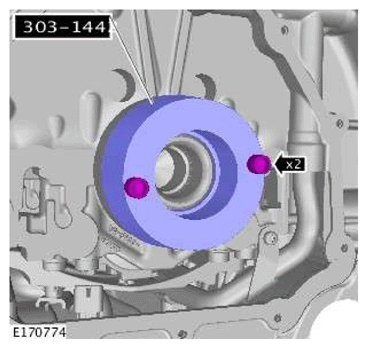

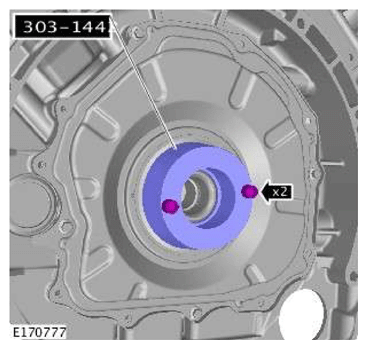

Install the special tool as indicated.

Special Tool(s): 303-1442
NOTE: Install the bolts finger tight.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

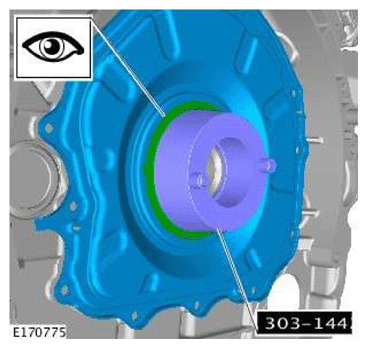

Install the special tool.

Special Tool(s): 303-1442

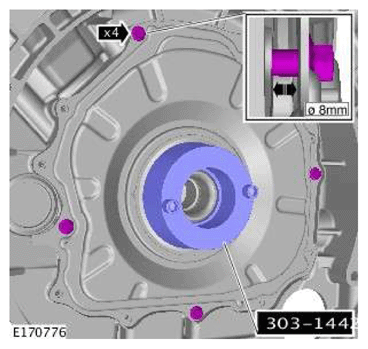

CAUTION: Do not fully install the component. Maintain a clearance of 8 mm, between the rear oil seal plate and the cylinder block, as smearing of the sealant may occur.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the new crankshaft rear oil seal plate.

Special Tool(s): 303-1442

Renew Part: Crankshaft rear seal Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the bolts and maintain the clearance of 8 mm.

Special Tool(s): 303-1442
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): 303-1442

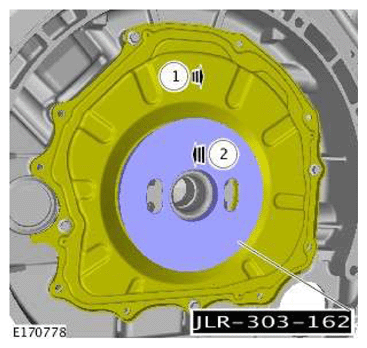

CAUTION: Apply pressure to the rear oil seal plate in the sequence shown, when installing the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the crankshaft rear oil seal plate in the sequence shown.

Special Tool(s): JLR-303-1622
NOTE: Tighten the bolts in the indicated sequence.

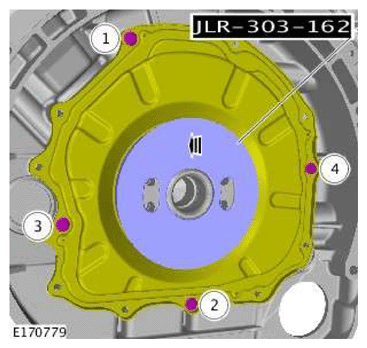

Fig 1: Rear Oil Seal Plate Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

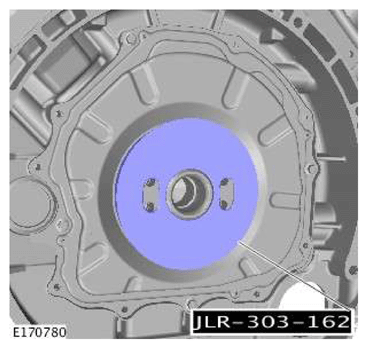

Using the special tool, install the component.

Special Tool(s): JLR-303-1622

Torque : 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the special tool.

Special Tool(s): JLR-303-1622
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

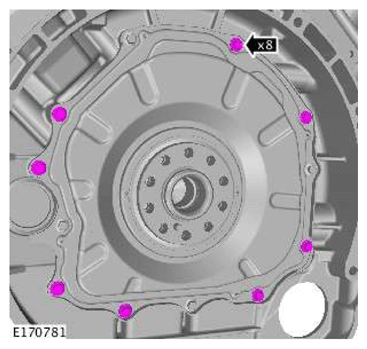

Install the remaining 8 rear oils seal bolts.

Torque : 11 Nm
Install the flexplate.
Refer to: FLEXPLATE
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
