Engine Accessories (G2611935): Part(S)

WARNING: This page is about a different variant/trim than selected.
STEP PART NAME QUANTITY
Step 2 Drive plate bolts 10
Step 3 Crankshaft pulley friction washer 1
Step 12 Crankshaft pulley bolts 1
Step 19 Oil cooler gasket 1
Step 20 Oil cooler bolts 18
Step 21 Engine mount bolt(s) 4
Step 22 Engine mount bolt(s) 4
Step 24 Brake vacuum pump gasket 1
Step 26 Oil cooler to water pump O-ring seals 1
Step 26 Oil cooler to coolant pump pipe 1
Step 26 Engine coolant pump gasket 2
Step 28 Camshaft position sensor O-ring seal 2
Step 29 Camshaft position sensor O-ring seal 2
Step 30 Variable Camshaft Timing (VCT) solenoid O-ring seals 2
Step 31 Variable Camshaft Timing (VCT) solenoid O-ring seals 2
Step 35 Water outlet to cylinder block tube 1
Step 38 Intake manifold gasket 2
Step 40 Charge air cooler gasket 1
Step 43 Fuel injector refit kit 6
Step 51 Engine block heater manifold seal(s) 1
Step 53 Cylinder block coolant outlet O-ring seals 2
Step 63 Fuel pump O-ring seal 2
Step 66 Fuel rail supply pipe(s) 1

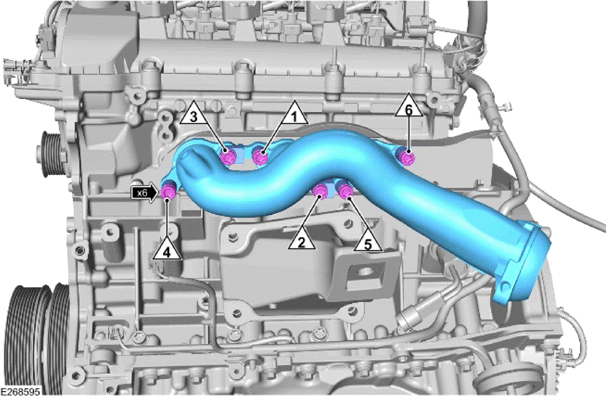

Step 74 Exhaust manifold gasket 1
Step 75 Exhaust manifold bolts 6

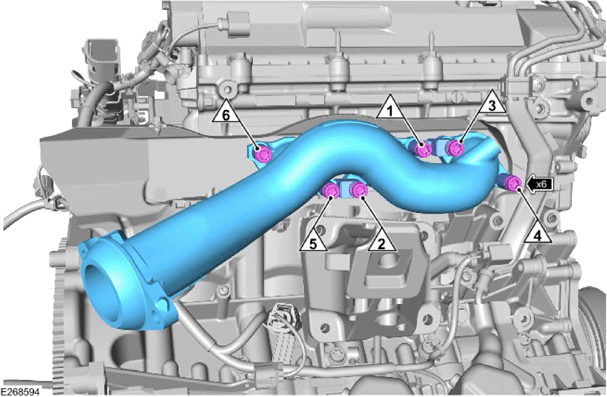

Step 76 Exhaust manifold gasket 1
Step 77 Exhaust manifold bolts 6
Step 80 Heatshield Screw - M6.3X13 3
Step 80 Heatshield screw - M8x30 1
Step 81 Heatshield Screw - M6.3X13 4
Step 82 Oil filter housing gasket 1
Step 83 Oil filter 1
Step 84 Thermostat to top coolant hose tube 1
CAUTION:
  • Make sure that the components removed from the old engine are cleaned and inspected before installing to the replacement engine, any worn or damaged components or clips must be replaced.
  • Before installing any components make sure that the area is clean and free of any foreign material.
  • Make sure that all blanking caps are removed before installing components to the replacement engine. Failure to follow the above instructions might result in premature failure of the replacement engine.
NOTE:
  • Note the orientation of the components prior to removal.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. G14052016Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

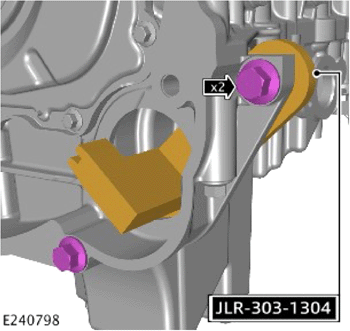

    • Install the special tool.

      Special Tool(s): JLR-303-1304

    • Install and tighten the 2 bolts.

      Torque  : 10 Nm

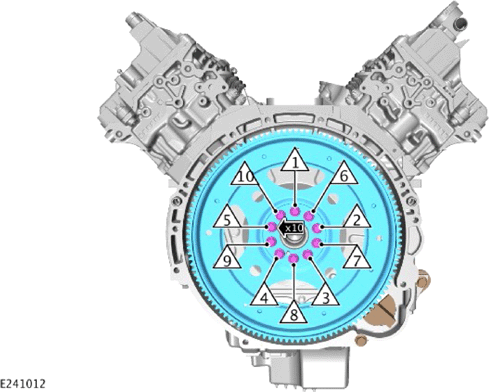

  2. Fig 1: Drive Plate Bolts Tightening Sequence
    G14052093Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the drive plate.
    • Install and tighten 10 new bolts in the illustrated sequence.

      Renew Part: Drive plate bolts Quantity: 10  .

      Torque

      Stage 1: 45 Nm

      Stage 2: 90°

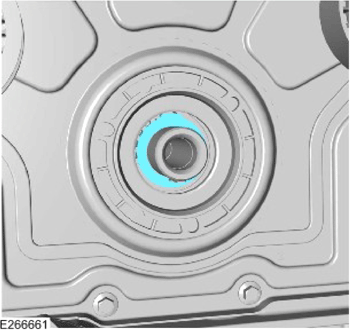

  3. G14052094Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install a new friction washer.

    Renew Part: Crankshaft pulley friction washer Quantity: 1  .

  4. CAUTION:
    • Make sure that the components have been thoroughly cleaned and inspected before installing to the new engine. Failure to follow this instruction might result in premature engine failure.
    • Make sure that all the required tools are present to fully seat the crankshaft damper in 7 minutes from the application of the RTV sealant. Failure to follow this instruction might result in excessive oil leaks.

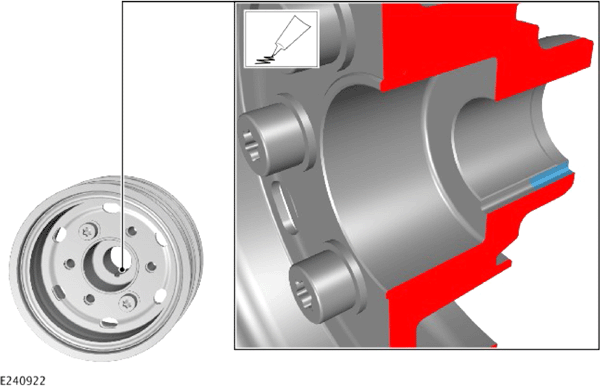

    G14052095Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Apply RTV sealant to the crankshaft pulley keyway.

    Material: Silicone Sealant LB (WSE-M4G323-A4/2U7J-M4G323-AA)

    Material: Silicone Sealant LB (WSS-M4G320-A3/6G9N-M4G320-AA)

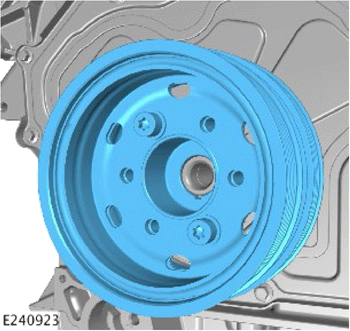

  5. G14052096Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the crankshaft pulley.

  6. NOTE: The thread is left handed.

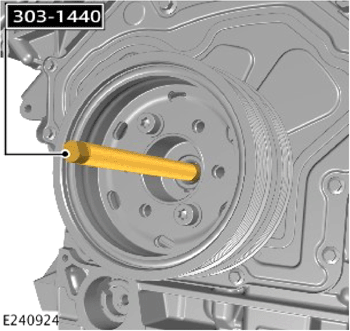

    G14052097Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool.

    Special Tool(s): 303-1440

  7. G14052098Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

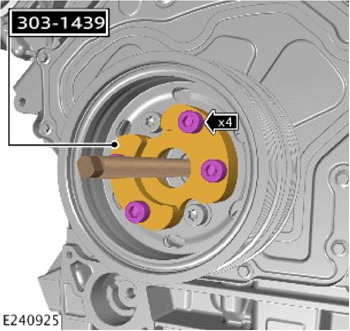

      Special Tool(s): 303-1439

    • Install and tighten the 4 bolts.

      Torque  : 25 Nm

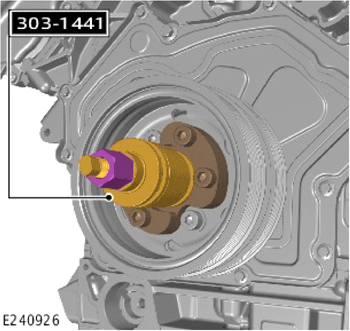

  8. G14052099Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): 303-1441

    • Rotate the crankshaft pulley installation tool until the pulley is fully located, do not over tighten. Failure to do this may result in damage to the components.

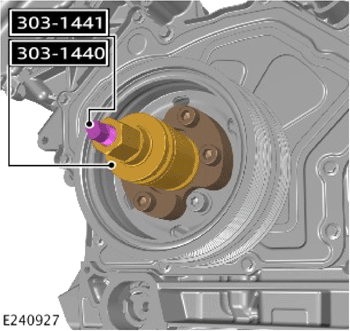

  9. G14052100Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tools.

    Special Tool(s): 303-1440  , 303-1441

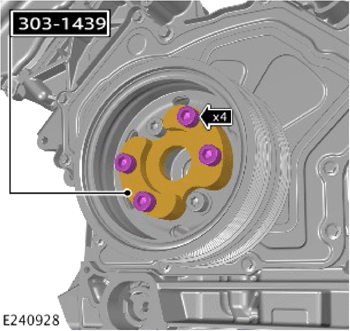

  10. G14052101Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 bolts.
    • Remove the special tool.

      Special Tool(s): 303-1439

  11. G14052102Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

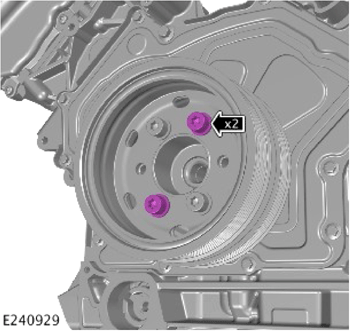

    Install and tighten the 2 bolts.

    Torque  : 65 Nm

  12. NOTE: The thread is left handed.

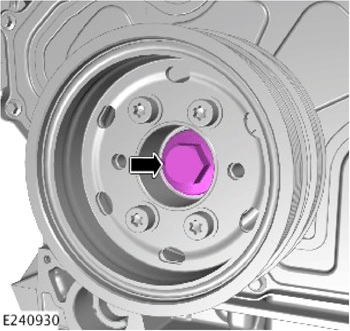

    G14052103Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the bolt.

    Material: Thread Locking HS (WSK-M2G349-A4/6U7J-M2G349-AA)

    Material: Thread Locking MS (WSK-M2G349-A7/2U7J-M2G349-AA)

    Material: Thread Locking Sealant (SQ-M4G9523-A/1S5J-M4G9523-AA)

    Renew Part: Crankshaft pulley bolts Quantity: 1  .

    Torque  : 200 Nm

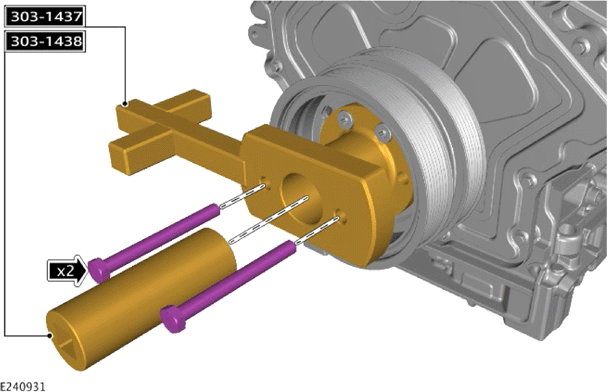

  13. G14052104Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tools.

      Special Tool(s): 303-1437  , 303-1438

    • Install and tighten the 2 bolts.

      Torque  : 25 Nm

  14. G14052016Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the special tool.
    • Remove the 2 bolts.
  15. G14052106Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

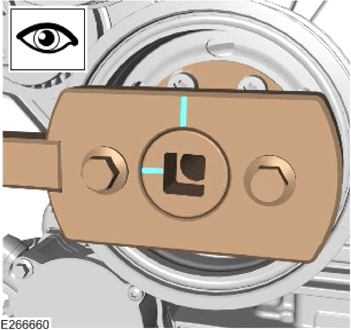

    Mark up the socket at 9 o'clock and the special tool at 12 o'clock to aid the tightening of the bolt.

  16. CAUTION: Make sure that the markings made in the previous step are followed accurately during the tightening of the bolt.

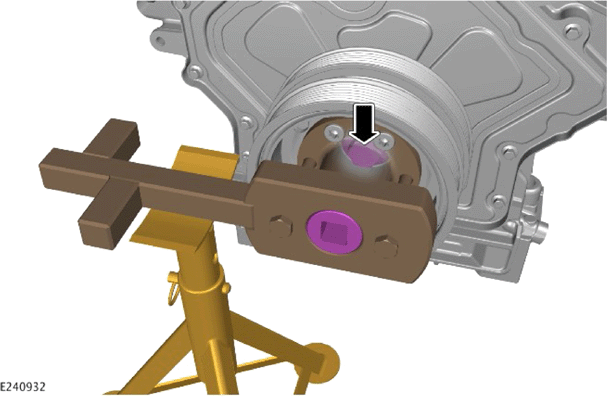

    G14052107Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Use a suitable stand to support the special tool.
    • Use the special tool to tighten the bolt.

      Special Tool(s): 303-1191

      Torque

      Stage 1: 200 Nm

      Stage 2: 270°

  17. G14052104Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 bolts.
    • Remove the special tools.

      Special Tool(s): 303-1437  , 303-1438

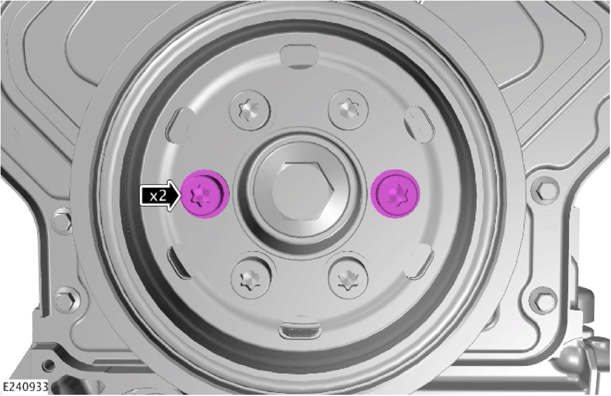

  18. G14052109Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install and tighten the 2 bolts.

    Torque  : 65 Nm

  19. CAUTION: Make sure that the mating faces are clean and free of any foreign material.

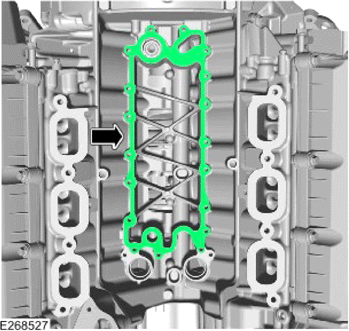

    G14052000Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install a new oil cooler gasket.

    Renew Part: Oil cooler gasket Quantity: 1  .

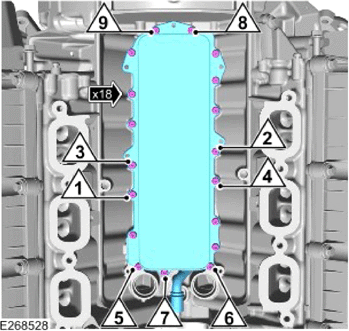

  20. Fig 2: Oil Cooler Bolts Tightening Sequence
    G14052111Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the oil cooler.
    • Install and tighten 9 new bolts in the illustrated sequence, tighten the remaining 9 new bolts in any order.

      Renew Part: Oil cooler bolts Quantity: 18  .

      Torque  : 11.5 Nm

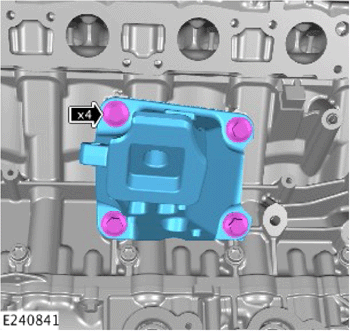

  21. G14052005Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the right engine mount.
    • Install and tighten the 4 new bolts.

      Renew Part: Engine mount bolt(s) Quantity: 4  .

      Torque  : 60 Nm

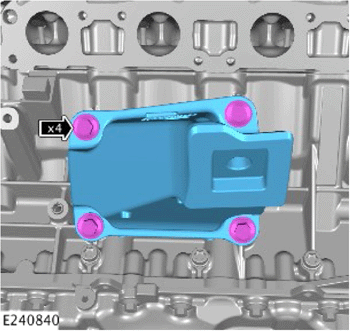

  22. G14052004Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the left engine mount.
    • Install and tighten the 4 new bolts.

      Renew Part: Engine mount bolt(s) Quantity: 4  .

      Torque  : 60 Nm

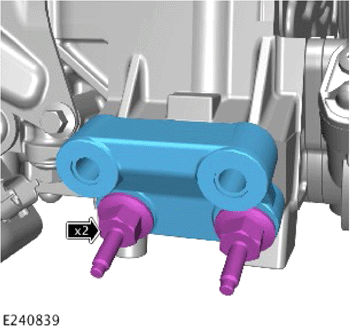

  23. G14052003Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the generator bracket.
    • Install and tighten the 2 bolts.

      Torque  : 47.5 Nm

  24. CAUTION: Make sure that the components have been thoroughly cleaned and inspected before installing to the new engine. Failure to follow this instruction might result in premature engine failure.

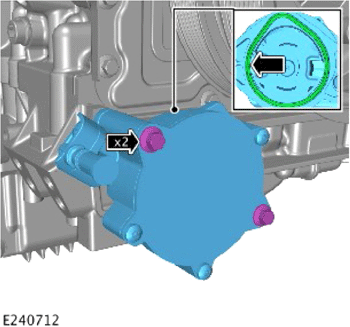

    G14051998Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new gasket.

      Renew Part: Brake vacuum pump gasket Quantity: 1  .

    • Install the brake vacuum pump.
    • Install and tighten the 2 bolts.

      Torque  : 11.5 Nm

  25. CAUTION: Observe correct installation of the coolant pump to oil cooler tube o-ring seals. Failure to do so may result in coolant loss.

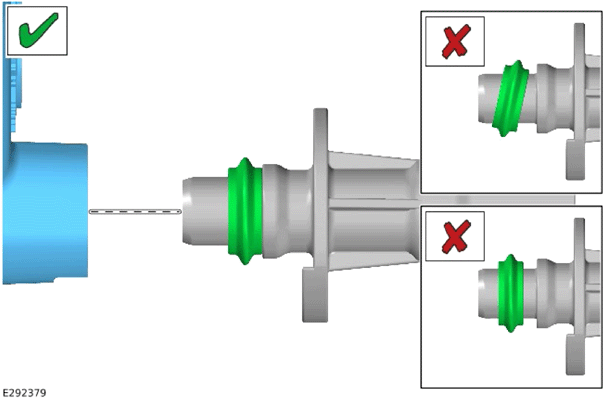

    G14052116Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Make sure that the coolant pump to oil cooler tube o-ring seals are correctly installed.

  26. CAUTION:
    • Coolant system components should be cleaned and checked carefully for damage, contamination or deterioration before installing to the new engine.
    • If any contamination or damage is visible to the coolant pump, or the engine has been overheated make sure to replace the component.
    • Make sure that no twisting or excessive force is used to install the coolant pump to the coolant inlet pipe. Failure to follow this instruction might result in premature failure of the engine.

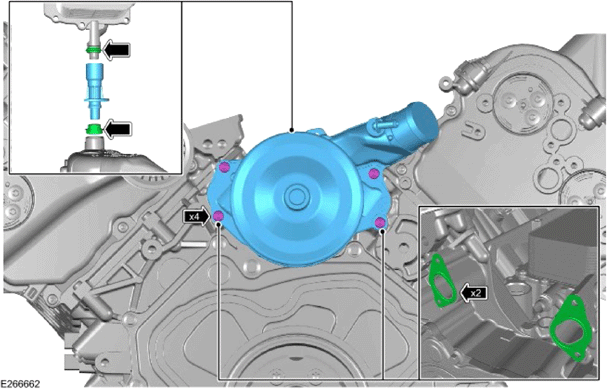

    G14051997Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install 2 new O-ring seals.

      Renew Part: Oil cooler to water pump O-ring seals Quantity: 1  .

    • Install the new coolant pump inlet pipe.

      Renew Part: Oil cooler to coolant pump pipe Quantity: 1  .

    • Install 2 new gaskets.

      Renew Part: Engine coolant pump gasket Quantity: 2  .

    • Install the coolant pump.
    • Install, but do not fully tighten the 4 bolts.

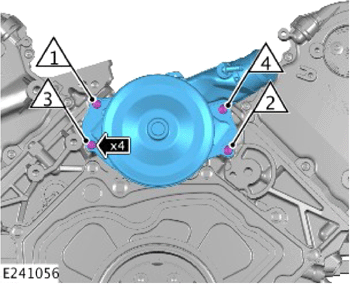

  27. Fig 3: Coolant Pump Tightening Sequence
    G14052118Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the 4 bolts in the sequence illustrated.

    Torque  : 11.5 Nm

  28. CAUTION:
    • Make sure that all the mating faces are clean and free of any foreign material.
    • Make sure that the components have been thoroughly cleaned and inspected before installing to the new engine. Failure to follow this instruction might result in premature engine failure.

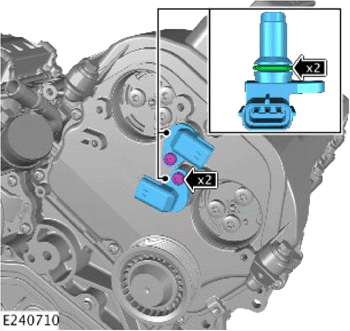

    G14051996Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

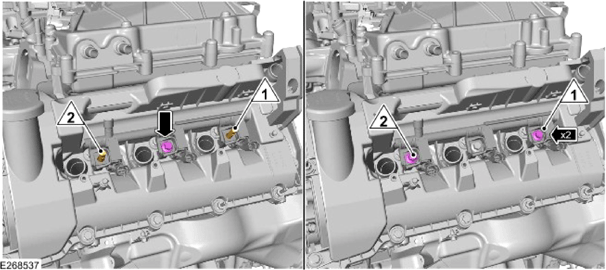

    • Install 2 new o-ring seals to the 2 Camshaft Position Sensor (CMP).

      Renew Part: Camshaft position sensor O-ring seal Quantity: 2  .

    • Lubricate the o-ring seals.
    • Install the 2 CMP  sensors.
    • Install and tighten the 2 bolts.

      Torque  : 9 Nm

  29. CAUTION:
    • Make sure that all the mating faces are clean and free of any foreign material.
    • Make sure that the components have been thoroughly cleaned and inspected before installing to the new engine. Failure to follow this instruction might result in premature engine failure.

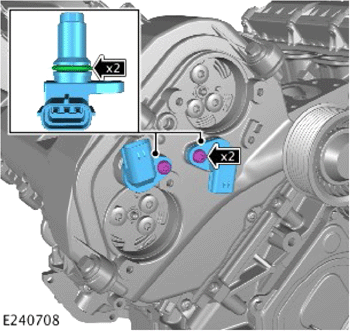

    G14051995Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install 2 new o-ring seals to the 2 CMP  .

      Renew Part: Camshaft position sensor O-ring seal Quantity: 2  .

    • Lubricate the o-ring seals.
    • Install the 2 CMP  sensors.
    • Install and tighten the 2 bolts.

      Torque  : 9 Nm

  30. CAUTION:
    • Make sure that all the mating faces are clean and free of any foreign material.
    • Make sure that the components have been thoroughly cleaned and inspected before installing to the new engine. Failure to follow this instruction might result in premature engine failure.

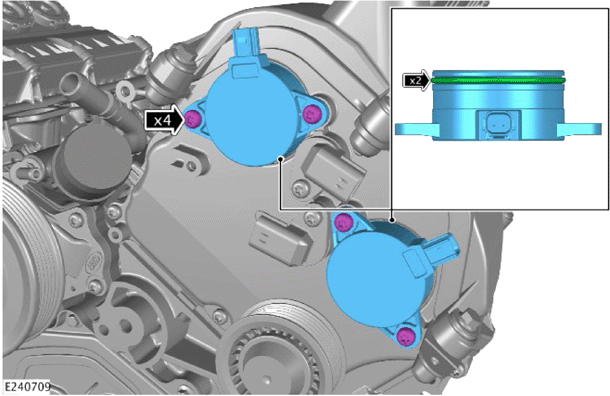

    G14051994Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install 2 new O-ring seals.

      Renew Part: Variable Camshaft Timing (VCT) solenoid O-ring seals Quantity: 2  .

    • Install the 2 Variable Camshaft Timing (VCT) solenoids.
    • Install and tighten the 4 bolts.

      Torque  : 9 Nm

  31. CAUTION:
    • Make sure that all the mating faces are clean and free of any foreign material.
    • Make sure that the components have been thoroughly cleaned and inspected before installing to the new engine. Failure to follow this instruction might result in premature engine failure.

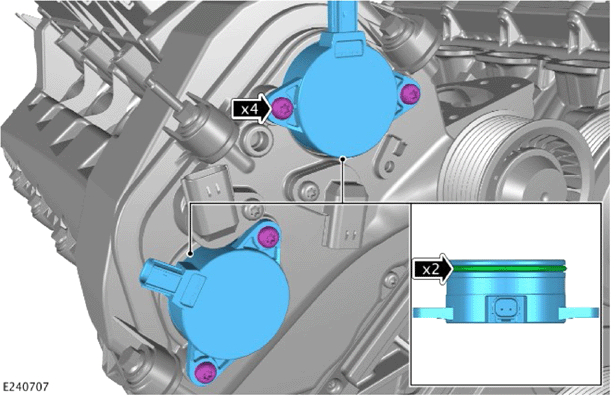

    G14051993Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install 2 new O-ring seals.

      Renew Part: Variable Camshaft Timing (VCT) solenoid O-ring seals Quantity: 2  .

    • Install the 2 VCT  solenoids.
    • Install and tighten the 4 bolts.

      Torque  : 9 Nm

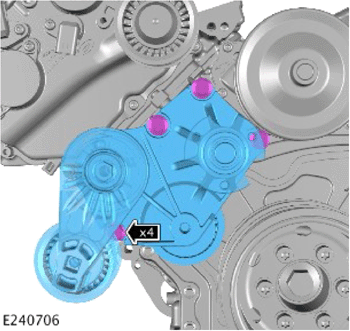

  32. G14051992Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the accessory drive belt tensioner bracket.
    • Install and tighten the 4 bolts.

      Torque  : 25 Nm

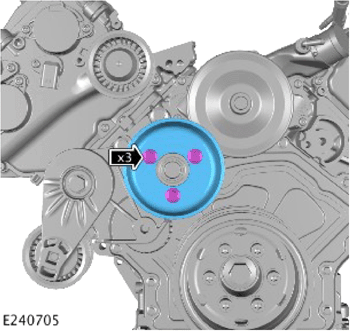

  33. G14051991Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the viscous fan pulley.
    • Install and tighten the 3 bolts.

      Torque  : 25 Nm

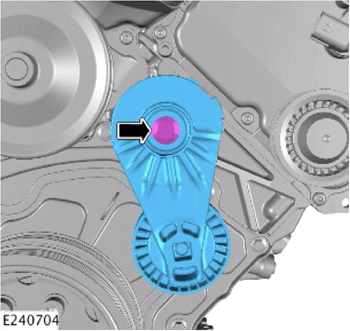

  34. G14051990Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the accessory drive belt tensioner.
    • Install and tighten the bolt.

      Torque  : 47.5 Nm

  35. CAUTION: Make sure that a new component is installed. Failure to follow this instruction might result in damage to the vehicle.

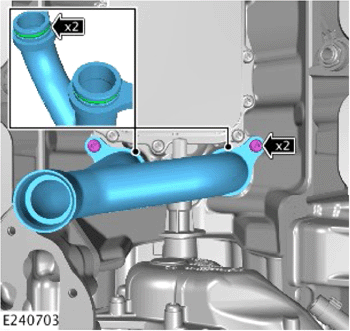

    G14051989Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the 2 new O-ring seals.
    • Use clean distilled water to lubricate the cylinder block coolant port bore.
    • Install the new water outlet to cylinder block tube.

      Renew Part: Water outlet to cylinder block tube Quantity: 1  .

    • Install and tighten the 2 bolts.

      Torque  : 11.5 Nm

  36. CAUTION:
    • Make sure that yellow tape is applied to the knock sensor wiring harness as shown in the illustration. The tape identifies 'Bank A'.
    • Take extra care when working near open inlet ports, any foreign material must be cleaned or removed immediately.

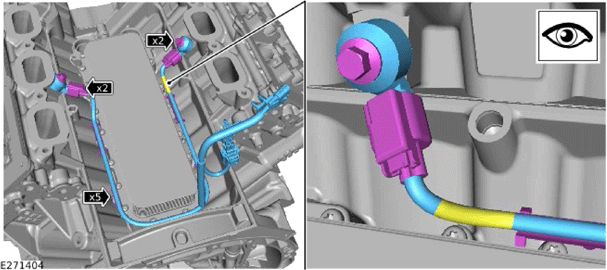

    G14051988Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

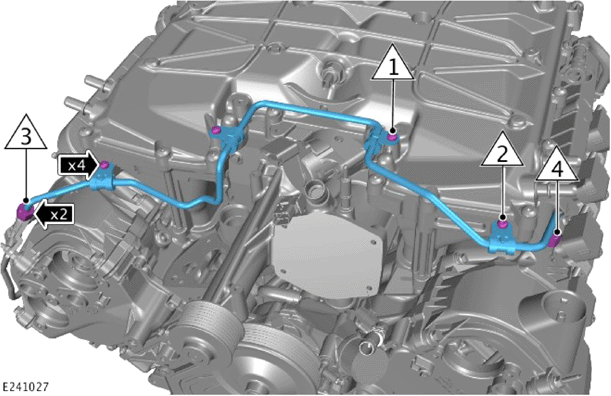

    • Install the knock sensor harness to its noted position.
    • Secure the 5 clips.
    • Install and tighten the 2 bolts.

      Torque  : 20 Nm

    • Connect the 2 electrical connectors.

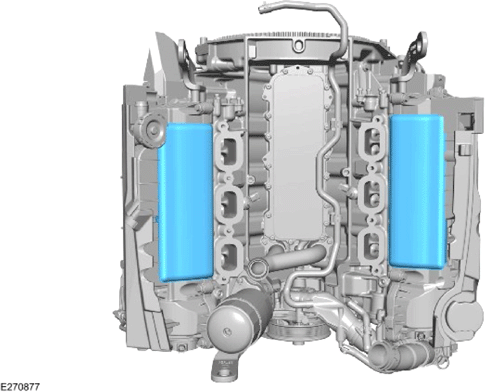

  37. G14051986Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 2 Noise, Vibration and Harshness (NVH) materials.

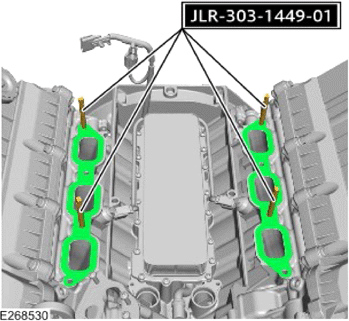

  38. G14052129Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • CAUTION:

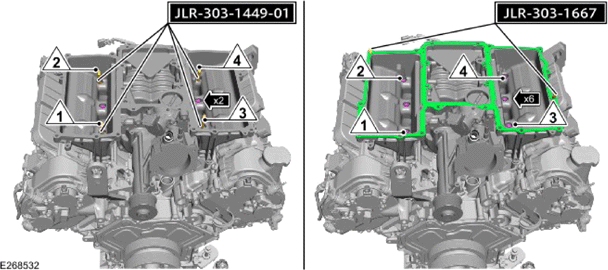

      • If a new cylinder head has been installed then the special tool 303-1449-02 without the thread must be used to install the supercharger.
      • Take extra care when working near open inlet ports, any foreign material in the ports must be cleaned or removed immediately.

      Install the special tools.

      Special Tool(s): 303-1449-01  , 303-1449-02

    • Install 2 new intake manifold gaskets.

      Renew Part: Intake manifold gasket Quantity: 2  .

  39. CAUTION: Take extra care when working near open inlet ports, any foreign material in the ports must be cleaned or removed immediately.

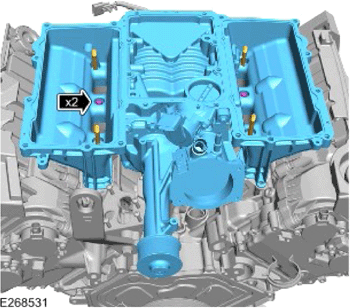

    G14052130Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the supercharger assembly.
    • Install and tighten the 2 bolts.

      Torque  : 25 Nm

  40. G14052131Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • CAUTION: Take extra care when working near open inlet ports, any foreign material in the ports must be cleaned or removed immediately.

      Remove the special tool from position 1.

      Special Tool(s): 303-1449-01  , 303-1449-02

    • Install and tighten a new bolt to position 1.

      Torque  : 25 Nm

    • Repeat above procedure for the remaining 3 positions.
    • Install the special tools.

      Special Tool(s): JLR-303-1677

    • Install a new gasket to the locating pins.

      Renew Part: Charge air cooler gasket Quantity: 1  .

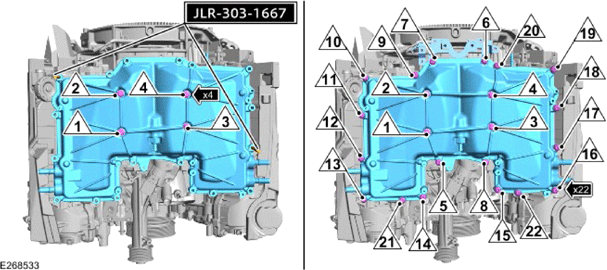

  41. Fig 4: Charge Air Cooler Tightening Sequence
    G14052132Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the charge air cooler assembly to the locating pins.
    • Install and tighten bolts 1-4 in the illustrated sequence.

      Torque  : 25 Nm

    • Remove the 2 special tools.

      Special Tool(s): JLR-303-1677

    • Install the bracket.
    • Install and tighten bolts 5-22 in the illustrated sequence.

      Torque  : 25 Nm

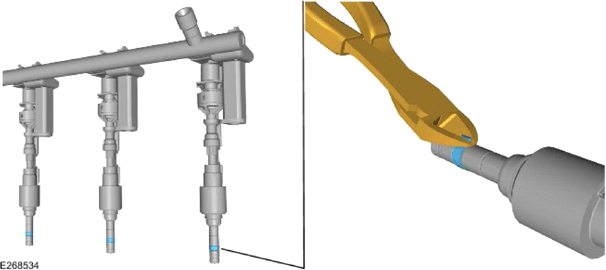

  42. NOTE: Repeat this step for the remaining 5 injectors.
    G14052133Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Cut and remove the seal.

  43. CAUTION: Make sure that the mating surfaces are clean and free from debris and foreign material.
    NOTE: Repeat this step for the remaining 5 fuel injectors.

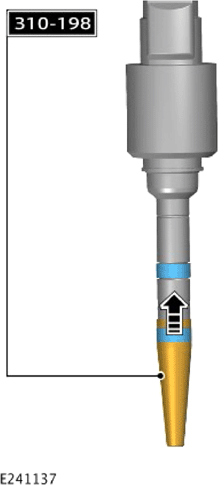

    G14052134Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool.

      Special Tool(s): 310-198

    • Use the special tool to install the new Teflon™ seal to the fuel injector.
    • Make sure the Teflon™ seal is correctly installed.

      Renew Part: Fuel injector refit kit Quantity: 6  .

    • Remove the special tool.

      Special Tool(s): 310-198

  44. NOTE: Repeat this step for the remaining 5 fuel injectors.

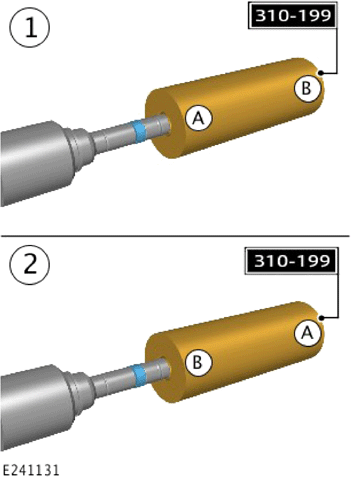

    G14052135Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to fully install the Teflon™ seal.

    Special Tool(s): 310-199

  45. NOTE: Repeat this step for the remaining 5 fuel injectors.

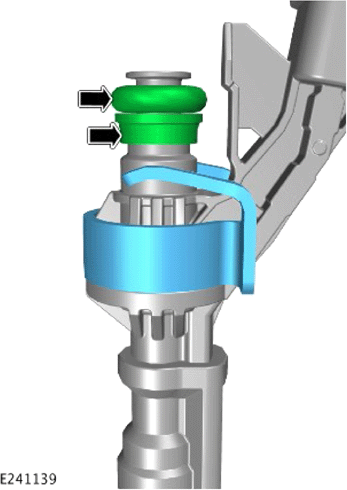

    G14051982Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the new fuel injector O-ring seal and washer supplied in the fuel injector installation kit.
    • Install the new fuel injector clamp supplied in the fuel injector installation kit.

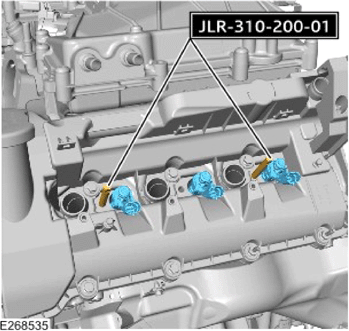

  46. G14052137Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • CAUTION: If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.
      NOTE: Repeat this step for the other side.

      Install the special tools.

      Special Tool(s): 310-200-01  , 310-200-02

    • Install the 3 fuel injectors.
  47. CAUTION:
    • Make sure that the o-ring seals are seated correctly.
    • Make sure that the fuel injectors are aligned and installed into the fuel rail correctly, as noted in the removal step.
    NOTE: Repeat this step for the other side.

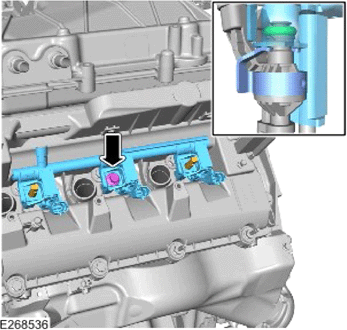

    G14052138Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the fuel rail.
    • Install and tighten the bolt.

      Torque  : 20 Nm

  48. G14052139Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • NOTE: Repeat this step for the other side.

      Remove the special tool from position 1.

      Special Tool(s): 310-200-01  , 310-200-02

    • Install and tighten the bolt to position 1.

      Torque  : 20 Nm

    • Repeat the above procedure for position 2.
    • Check for the correct torque on the center fuel rail retaining bolt.

      Torque  : 20 Nm

  49. NOTE: Repeat this step for the other side.

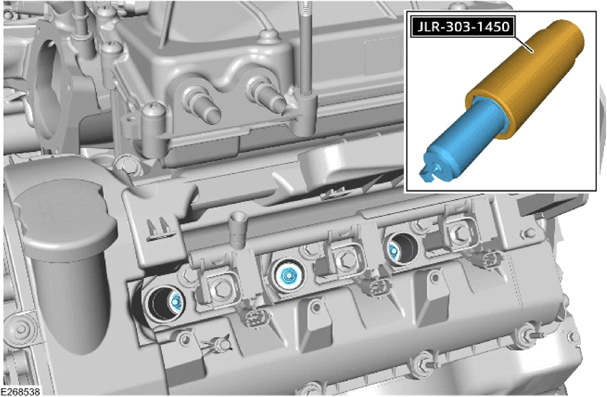

    G14051979Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool to install and tighten the 3 spark plugs.

    Special Tool(s): 303-1450

    Torque  : 20 Nm

  50. NOTE: Repeat this step for the other side.

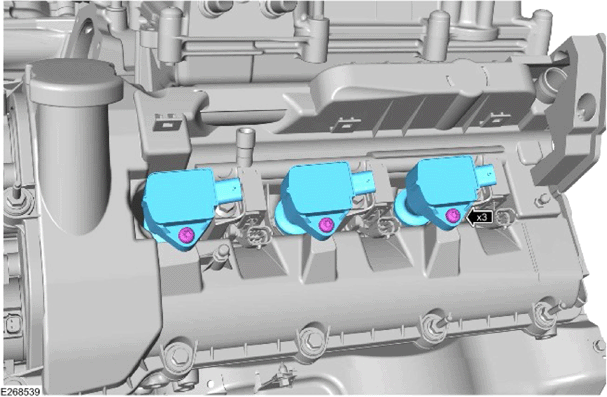

    G14051978Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the 3 ignition coils.
    • Install and tighten the 3 bolts.

      Torque  : 8 Nm

  51. CAUTION: Coolant system components should be cleaned and checked carefully for damage, contamination or deterioration before installing to the new engine.
    NOTE: If equipped.

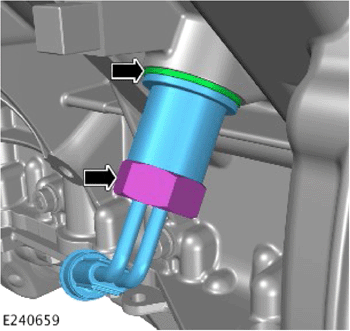

    G14051977Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new gasket.

      Renew Part: Engine block heater manifold seal(s) Quantity: 1  .

    • Install and tighten the block heater.

      Torque  : 50 Nm

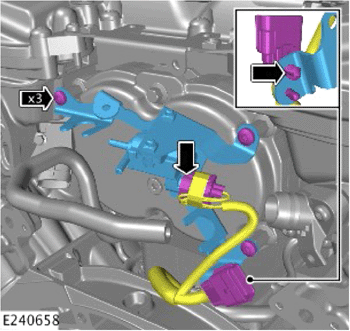

  52. G14051976Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the bracket.
    • Install and tighten the 3 bolts.

      Torque  : 11.5 Nm

    • Install the 2 clips.
  53. CAUTION:
    • Coolant system components should be cleaned and checked carefully for damage, contamination or deterioration before installing to the new engine.
    • If any contamination or damage is visible to the coolant pipe, or the engine has been overheated make sure to replace the component.

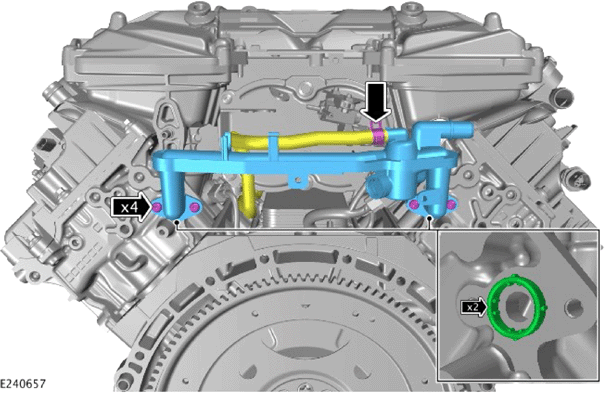

    G14051975Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install 2 new O-ring seals.

      Renew Part: Cylinder block coolant outlet O-ring seals Quantity: 2  .

    • Install the coolant pipe.
    • Install and tighten the 2 bolts.

      Torque  : 9 Nm

    • Connect the coolant hose.
    • Install the clamp.

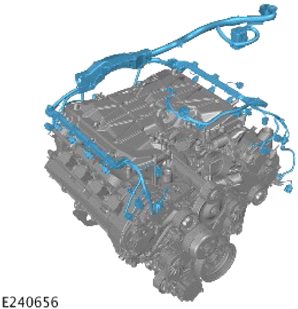

  54. G14051974Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the engine wiring harness.

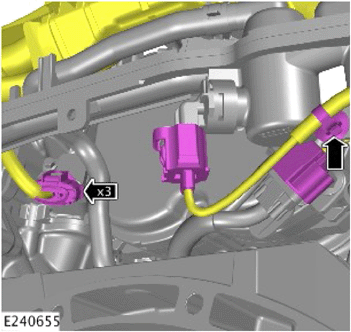

  55. G14051973Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Connect the 3 electrical connectors.
    • Install the clip.

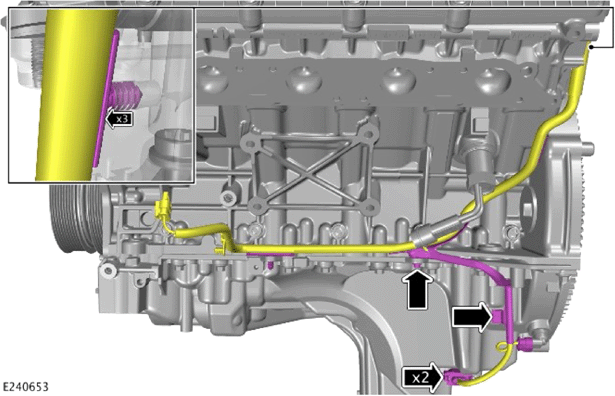

  56. G14051972Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the engine wiring harness in the correct location.
    • Connect the 2 electrical connectors.
    • Install the 5 clips.

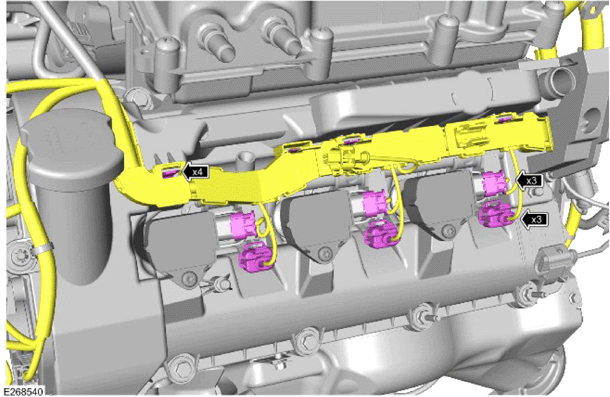

  57. G14051971Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the engine wiring harness in the correct location.
    • Secure the 4 clips.
    • Connect the 6 electrical connectors.

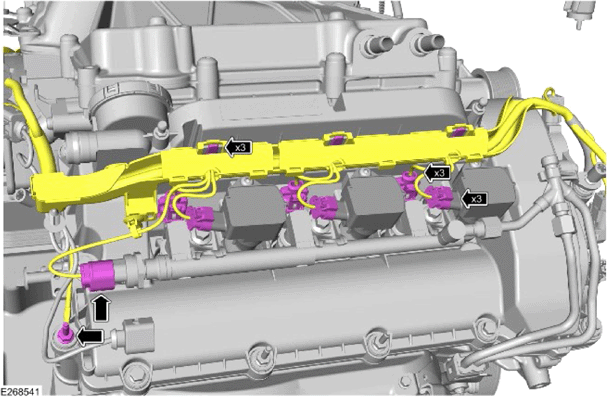

  58. G14051970Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the engine wiring harness in the correct location.
    • Secure the 3 clips.
    • Connect the 7 electrical connectors.
    • Install and tighten the nut.

      Torque  : 6.2 Nm

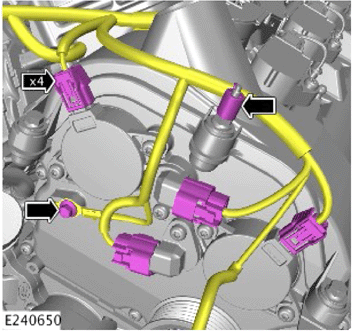

  59. G14051969Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the engine wiring harness in the correct location.
    • Connect the 4 electrical connectors.
    • Install the clip.
    • Install and tighten the bolt.

      Torque  : 9 Nm

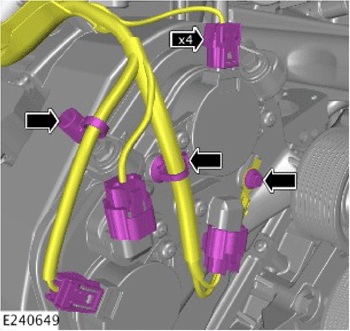

  60. G14051968Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the engine wiring harness in the correct location.
    • Connect the 4 electrical connectors.
    • Install the 2 clips.
    • Install and tighten the bolt.

      Torque  : 9 Nm

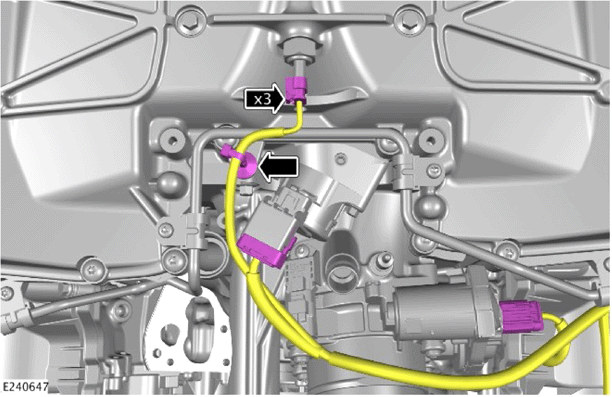

  61. G14051966Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Connect the 3 electrical connectors.
    • Install the clip.
  62. CAUTION:
    • Make sure that all the mating faces are clean and free of any foreign material.
    • Make sure that the components have been thoroughly cleaned and inspected before installing to the new engine. Failure to follow this instruction might result in premature engine failure.

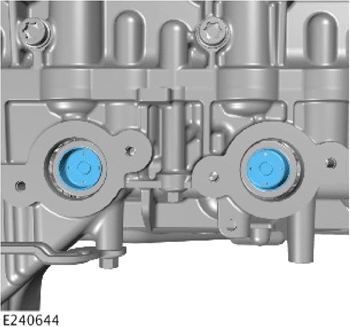

    G14051965Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Lubricate the High Pressure (HP) fuel pump tappet bores.
    • Install the 2 HP  fuel pump tappets.
  63. CAUTION:
    • Install the rear HP  fuel pump first.
    • Make sure that all the mating faces are clean and free of any foreign material.
    • Make sure that the components have been thoroughly cleaned and inspected before installing to the new engine. Failure to follow this instruction might result in premature engine failure.

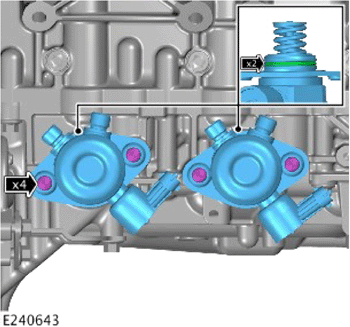

    G14051964Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install and lubricate the 2 new O-ring seals.

      Renew Part: Fuel pump O-ring seal Quantity: 2  .

    • Install the rear HP  fuel pump.
    • Install, but do not fully tighten the 2 bolts.
    • Tighten each bolt one turn at a time until the correct torque is achieved.

      Torque  : 11.5 Nm

    • Install the front HP  fuel pump.
    • Install, but do not fully tighten the 2 bolts.
    • Tighten each bolt one turn at a time until the correct torque is achieved.

      Torque  : 11.5 Nm

  64. CAUTION: Make sure that the components have been thoroughly cleaned and inspected before installing to the new engine. Failure to follow this instruction might result in premature engine failure.

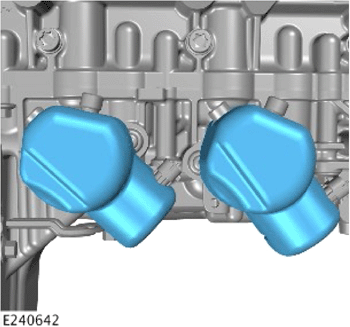

    G14051963Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the 2 HP  fuel pump covers.

  65. CAUTION:
    • Make sure that all the mating faces are clean and free of any foreign material.
    • Make sure that the components have been thoroughly cleaned and inspected before installing to the new engine. Failure to follow this instruction might result in premature engine failure.

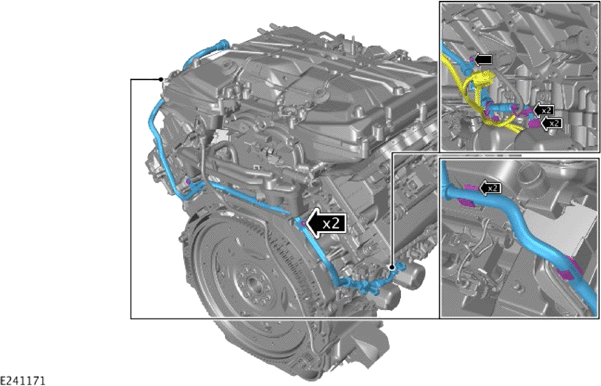

    G14052156Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the HP  fuel pump inlet pipe.
    • Install the HP  fuel pump inlet pipe to the 2 clips.
    • Install the 2 clips.
    • Tighten the 2 fuel line unions.

      Torque  : 20 Nm

    • Install and tighten the 3 bolts.

      Torque  : 11.5 Nm

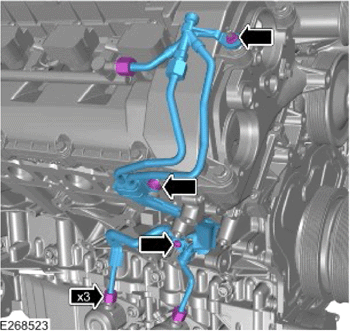

  66. CAUTION: Make sure that all the mating faces are clean and free of any foreign material.
    G14051960Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new HP  fuel pump outlet pipe assembly to the stud on the valve cover.

      Renew Part: Fuel rail supply pipe(s) Quantity: 1  .

    • Connect the 3 fuel line unions.
    • Tighten the 3 fuel line unions.

      Torque  : 20 Nm

    • Install and tighten the M6 bolt.

      Torque  : 11.5 Nm

    • Install and tighten the M8 bolt.

      Torque  : 26 Nm

    • Install and tighten the nut.

      Torque  : 6 Nm

  67. Fig 5: Fuel Line Tightening Sequence
    G14052158Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Connect but do not fully tighten the 2 fuel line unions.
    • Install and tighten the 4 bolts.

      Torque  : 11.5 Nm

    • Tighten the 2 fuel line unions and 2 bolts in the illustrated sequence.

      Torque  : 20 Nm

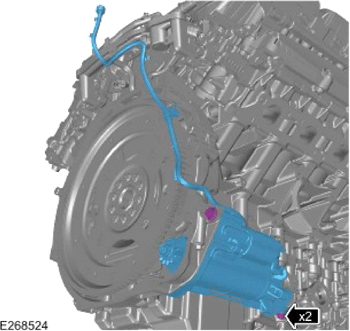

  68. G14051957Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the starter motor.
    • Install and tighten the rear bolt.

      Torque  : 48 Nm

    • Install and tighten the front bolt.

      Torque  : 25 Nm

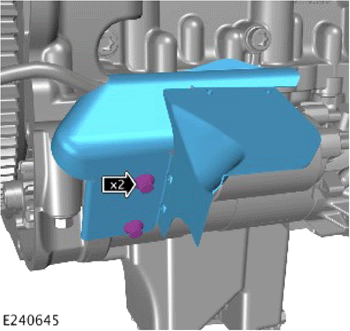

  69. G14051956Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the cover.
    • Install and tighten the 2 bolts.

      Torque  : 6 Nm

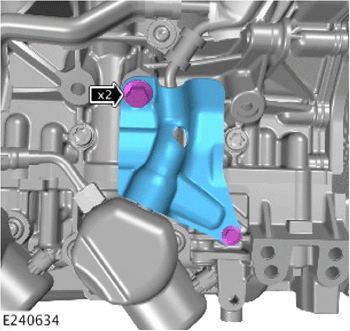

  70. G14051959Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the cover.
    • Install and tighten the M10 bolt.

      Torque  : 29 Nm

    • Install and tighten the M6 bolt.

      Torque  : 11.5 Nm

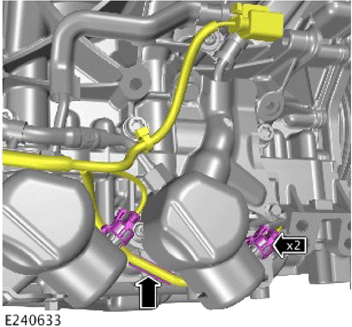

  71. G14051958Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the engine wiring harness in the correct location.
    • Connect the 2 electrical connectors.
    • Install the clip.

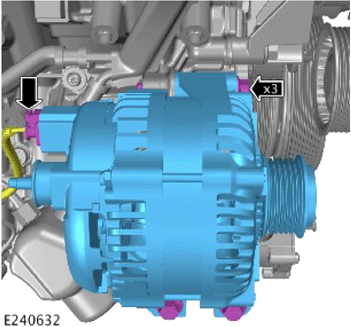

  72. G14051955Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the generator.
    • Install and tighten the 3 bolts.

      Torque  : 47.5 Nm

    • Connect the electrical connector.

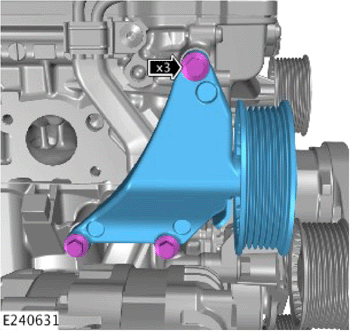

  73. G14051954Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the idler pulley.
    • Install and tighten the 3 bolts.

      Torque  : 25 Nm

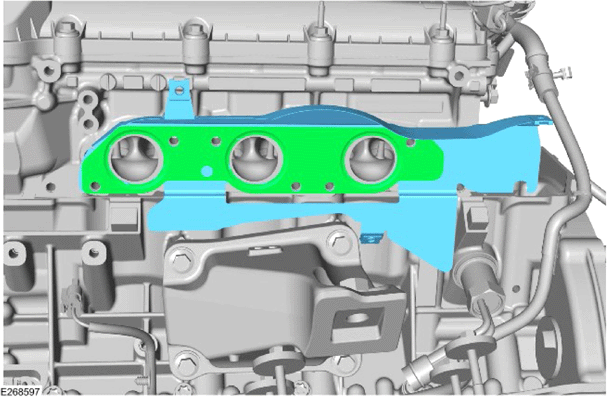

  74. G14051953Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install a new left exhaust manifold gasket.

    Renew Part: Exhaust manifold gasket Quantity: 1  .

  75. Fig 6: Exhaust Manifold Tightening Sequence
    G14052166Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the left exhaust manifold.
    • Install the 6 bolts and spacers.

      Renew Part: Exhaust manifold bolts Quantity: 6  .

    • Tighten the 6 bolts in the illustrated sequence.

      Torque  : 18 Nm

  76. NOTE: LH illustration shown, RH is similar.

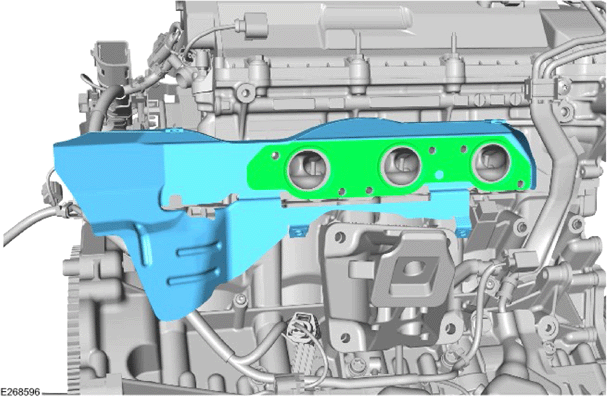

    G14051951Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install a new right exhaust manifold gasket.

    Renew Part: Exhaust manifold gasket Quantity: 1  .

  77. Fig 7: Exhaust Manifold Bolts Tightening Sequence
    G14052168Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the right exhaust manifold.
    • Install the 6 bolts and spacers.

      Renew Part: Exhaust manifold bolts Quantity: 6  .

    • Tighten the 6 bolts in the illustrated sequence.

      Torque  : 18 Nm

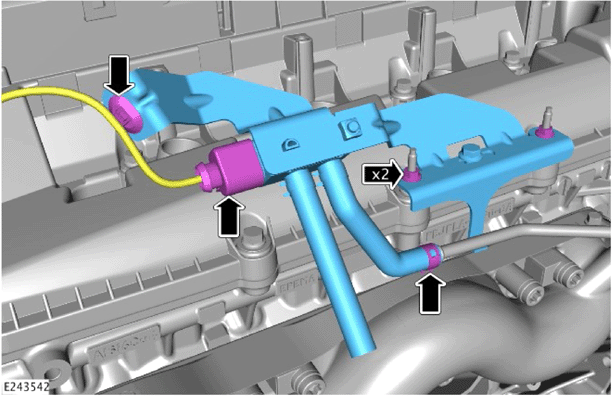

  78. NOTE: If equipped.
    G14051948Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the right differential pressure sensor assembly.
    • Install and tighten the 2 nuts.

      Torque  : 9 Nm

    • Connect the hose.
    • Install the clamp.
    • Connect the electrical connector.
    • Install the clip.

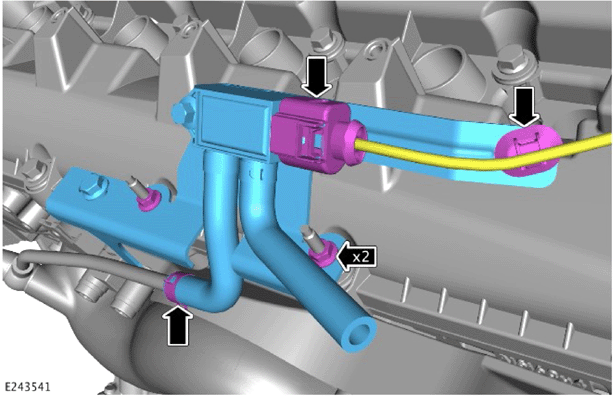

  79. NOTE: If equipped.
    G14051949Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the left differential pressure sensor assembly.
    • Install and tighten the 2 nuts.

      Torque  : 9 Nm

    • Connect the hose.
    • Install the clamp.
    • Connect the electrical connector.
    • Install the clip.

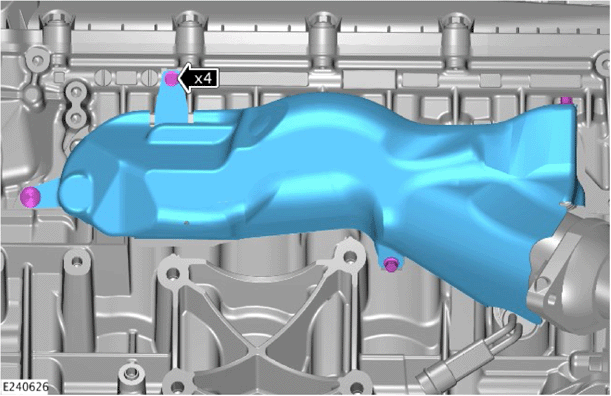

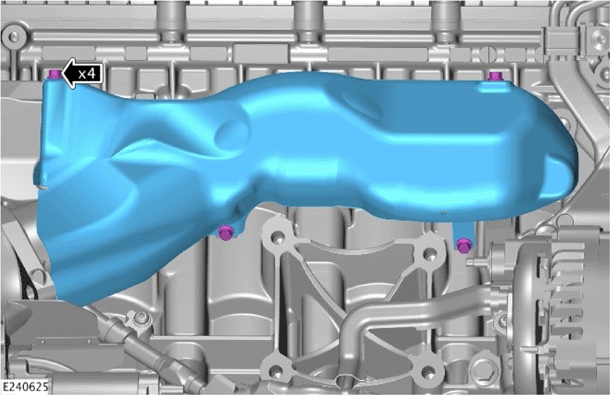

  80. G14051947Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the left exhaust manifold heatshield.
    • Install and tighten the 4 new bolts.

      Renew Part: Heatshield Screw - M6.3X13 Quantity: 3  .

      Renew Part: Heatshield screw - M8x30 Quantity: 1  .

      Torque  : 2.5 Nm

  81. G14051946Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the right exhaust manifold heatshield.
    • Install and tighten the 4 new bolts.

      Renew Part: Heatshield Screw - M6.3X13 Quantity: 4  .

      Torque  : 2.5 Nm

  82. CAUTION:
    • Make sure that the mating faces are clean and free of any foreign material.
    • Take extra care when working near to the open oil filter housing, any foreign materials must be cleaned or removed immediately.

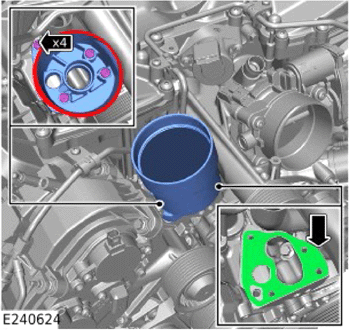

    G14051945Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new gasket.

      Renew Part: Oil filter housing gasket Quantity: 1  .

    • Install the oil filter housing.
    • Install and tighten the 4 bolts.

      Torque  : 11.5 Nm

  83. CAUTION: Make sure that the mating faces are clean and free of any foreign material.

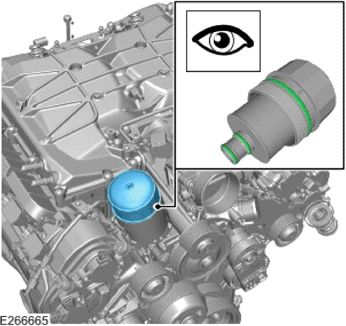

    G14052174Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new oil filter element.

      Renew Part: Oil filter Quantity: 1  .

    • Install the O-ring seal provided with the oil filter to the oil filter cap.
    • Check all 3 o-ring seals are in place and seated correctly.
    • Install and tighten the oil filter cap.

      Torque  : 27.5 Nm

  84. CAUTION: Make sure that the mating faces are clean and free of any foreign material.
    NOTE: The new water tube is sold as a kit with the new o-ring seal and retaining screws.

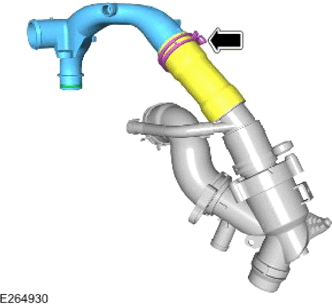

    G14051943Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the new thermostat to top coolant hose tube to the thermostat housing assembly.

      Renew Part: Thermostat to top coolant hose tube Quantity: 1  .

    • Secure the clamp.
    • Install the new o-ring seal to the coolant pipe.
  85. CAUTION:
    • Coolant system components should be cleaned and checked carefully for damage, contamination or deterioration before installing to the new engine. Damaged components must be replaced.
    • Make sure that the mating faces are clean and free of any foreign material.
    NOTE: The new water tube is sold as a kit with the new o-ring seal and retaining screws.

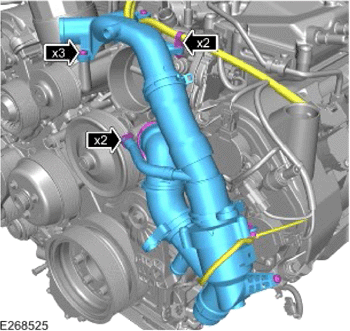

    G14051942Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the thermostat housing assembly.
    • Install and tighten the 2 new upper screws.

      Torque  : 9 Nm

    • Install and tighten the lower bolt.

      Torque  : 9 Nm

    • Connect the 2 coolant hoses.
    • Install the 2 clamps.
    • Install the 2 clips.

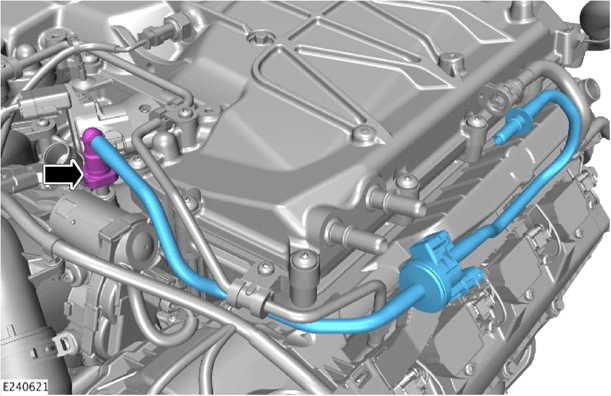

  86. G14051941Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the purge valve assembly.

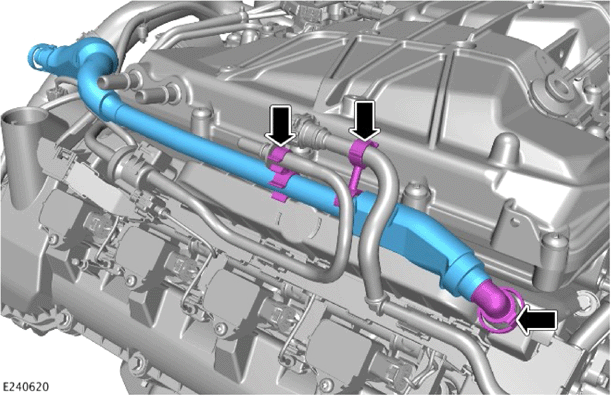

  87. G14051940Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the breather pipe.
    • Install the 2 clips.

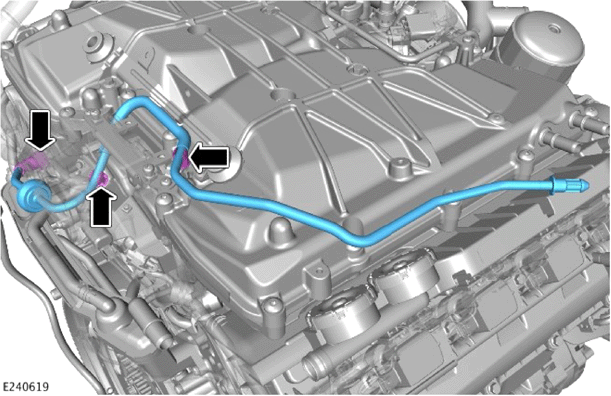

  88. G14051939Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the vacuum pipe.
    • Install the 2 clips.

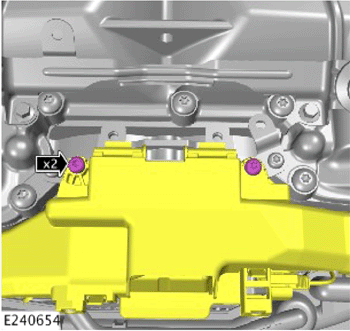

  89. G14051938Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the engine wiring harness in the correct location.
    • Install and tighten the 2 bolts.

      Torque  : 9 Nm

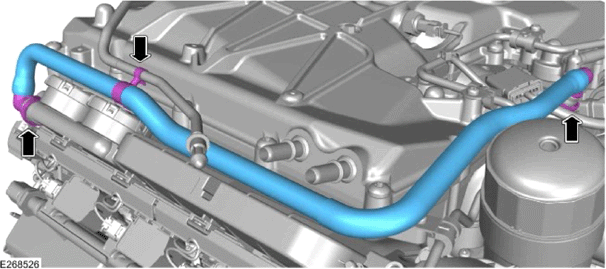

  90. G14051937Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the breather pipe.
    • Install the clip.
  91. Use a suitable hydraulic jib crane to remove the engine from the stand.

    General Equipment: Hydraulic jib crane

  92. Install the engine.

    Refer to: ENGINE

  93. Connect the startup battery ground cable.

    Refer to: SPECIFICATIONS

  94. Bleed the HP  fuel system.

    Refer to: HIGH-PRESSURE FUEL SYSTEM BLEEDING

scientia non olet · About LEMON Manuals
