Valve Clearance Check (G1851591): Check

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  3. Remove the left valve cover.

    Refer to: LEFT VALVE COVER

  4. Remove the right valve cover.

    Refer to: RIGHT VALVE COVER

  5. CAUTION:
    • Do not rotate the crankshaft counterclockwise. The timing chains may bind causing engine damage.
    • Camshaft lobes must be 180 degrees away from each valve tappet or valve clearance will be incorrect.

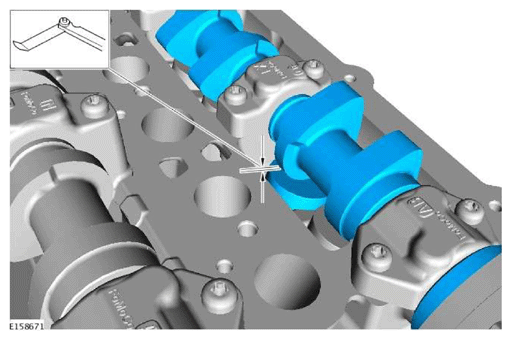

    G11606644Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Rotate the engine clockwise until the camshafts are positioned as shown.
    • Using feeler gauge check the gap between the tappet and the camshaft lobe and check against specifications table.

      Refer to: ENGINE - V6 S/C 3.0L PETROL

    • Repeat for the remaining valve tappets.
